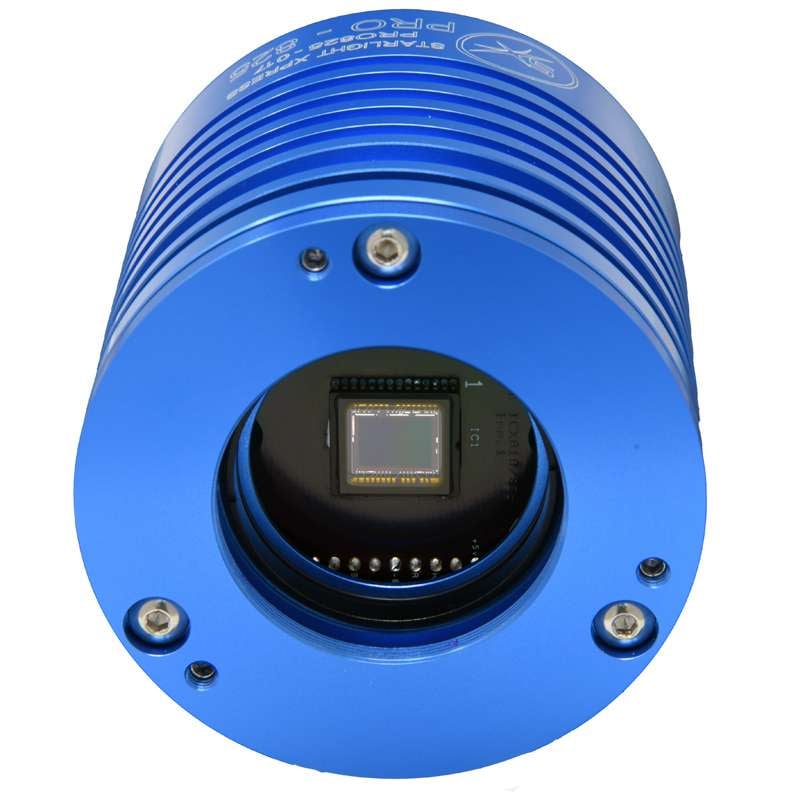

Trius PRO-825C - Color CCD Camera
Starlight Xpress
From $1,285.20
2 stores
The Trius PRO-825C is a one-shot color CCD camera using the Sony ICX825AQ EXview II HAD sensor, offering astronomers a practical solution for planetary and deep-sky imaging without requiring filter wheels. The camera delivers an excellent 75% quantum efficiency in the yellow visual band and exceptional hydrogen-alpha sensitivity. Download speeds reach approximately 2.8 million pixels per second, while the two-stage thermoelectric cooler achieves CCD temperatures better than 40°C below ambient, enabling exceptionally low dark current for clean exposures. The integrated powered USB 2.0 hub allows direct connection of filter wheels and guide cameras to the camera body, reducing cable complexity during imaging sessions.
Specifications
| Anti-blooming Overload Margin | 800 |
| USB Ports | 3 |
| CCD Image Area Horizontal | 8.98 mm |
| Weight | 450 lb |
| CCD Quality Grade | Grade 1 or better |
| Full-well Capacity | 23000 |
| USB Interface | USB 2.0 |
| Warranty | 2 |
| Resolution | 1.4″ |
| CCD Image Area Vertical | 6.7 mm |
| Housing Diameter | 75 mm |
| Download Speed | 2.8 s |
| Housing Length | 70 mm |
| USB Port Current Per Port | 200 mAh |
| Pixel Array | 1392 x 1040 |
| Color Type | One-shot Color |
| Sensor type | Sony ICX825AQ EXview II HAD CCD |
| Minimum Temperature Below Ambient | -40 °C |
| Pixel Size | 6.45 μm |
| Quantum Efficiency | 75% |
| Readout Noise | 3.5 |
| Cooling System | Two-stage Thermoelectric |
| Mount Thread | 42mm T2 |
| Data Format | 16-bit |
