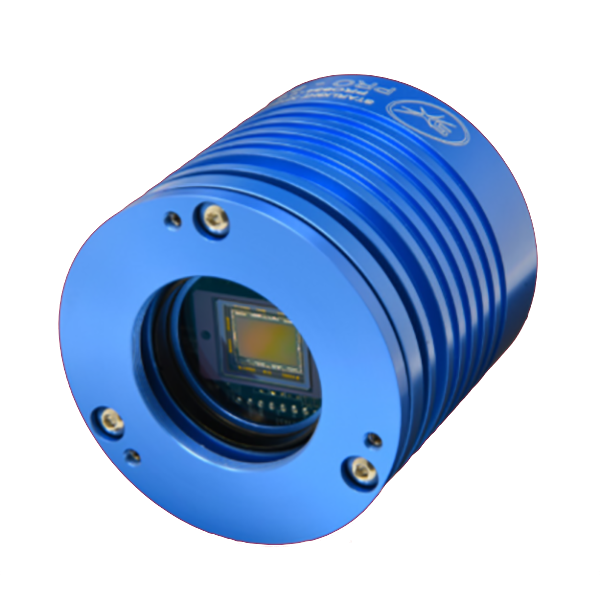

Trius Pro 834 Cooled Monochrome CCD Camera - Blue Edition
Starlight Xpress
From $2,698.50
2 stores
In stock

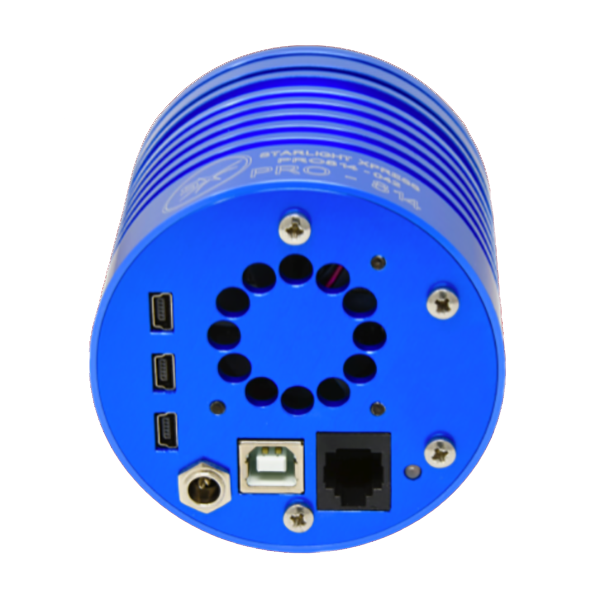

The Trius Pro 834 uses a 12 megapixel Sony CCD with 3.1 micrometer square pixels and is well suited to short focus optics such as compact APO refractors. Featuring an exceptionally low readout noise figure of better than 3 electrons RMS and a fast download time of only 5 seconds in full resolution mode, this Blue Edition CCD Camera System is monochrome for deep-sky astrophotography. The camera cools to minus 45-degrees Celsius below ambient temperature, features USB 2.0 socket for computer control and a +12v DC jack for power supply, and includes a fused silica window and Argon filled housing with anti-reflective coating to prevent dew formation.
Specifications
| Array Format | 4240 x 2824 pixels |
| Read Noise | Better than 3 electrons RMS |
| Download Time | 5 s |
| Sensor type | Sony ICX834AL EXview II CCD |
| Pixel Size | 3.1 μm |
| Peak Quantum Efficiency | 77% |
| Computer Interface | USB 2.0 |
| Color Edition | Blue |
| Sensor Image Area | 12.49 mm |
| Dark Current | Less than 0.002 electrons/second at -10°C |
| Dimensions | 75 x 70 mm barrel |
| Sensor diagonal | 15.8 |
| Full Well Capacity | 8000 electrons |
| Data Format | 16 bits |
| Cooling Performance | -45 °C |
| T-Thread | 42mm T2 |
| Resolution | 12″ |
| Power Requirements | 12 V |
