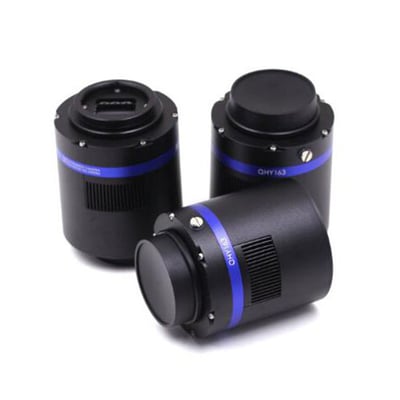

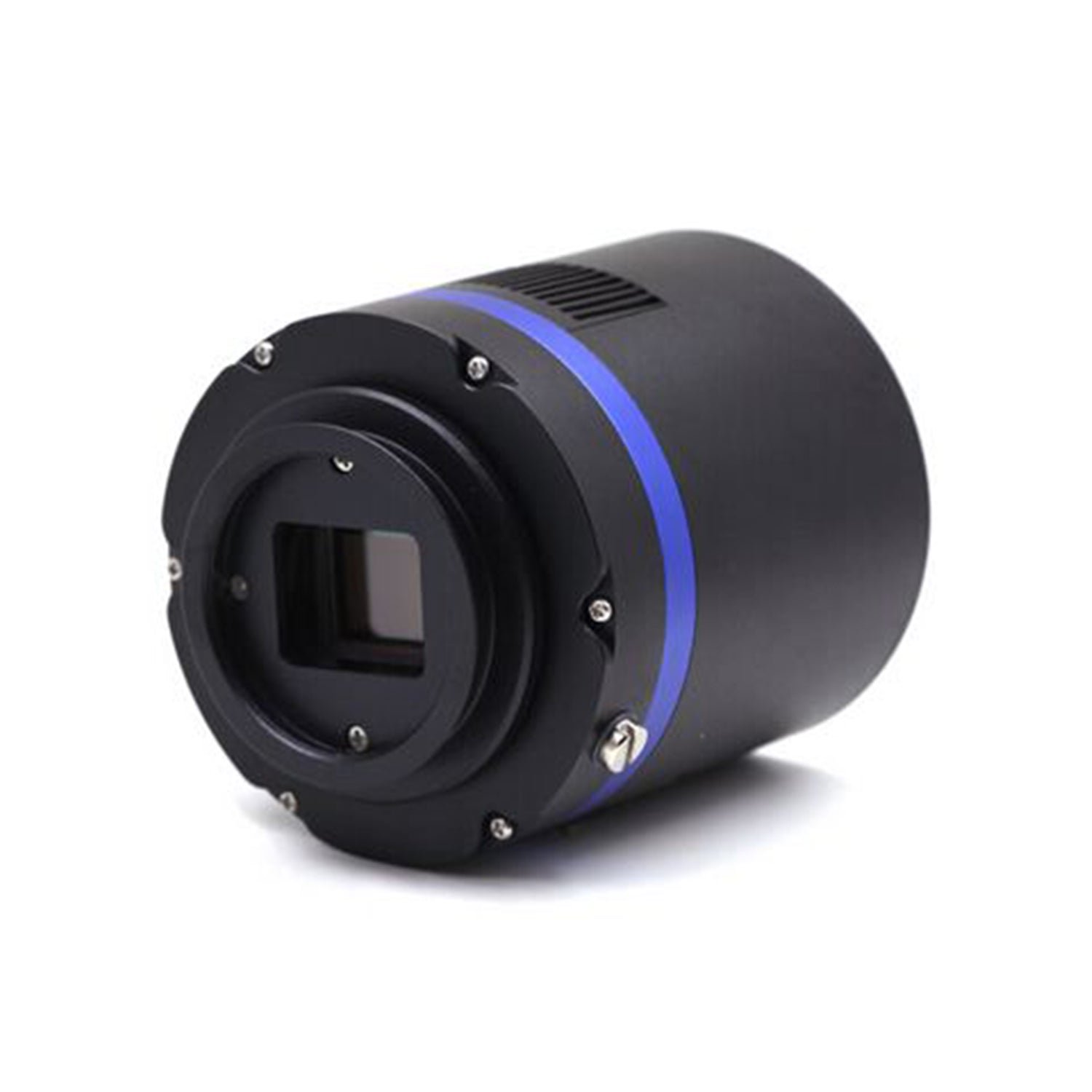

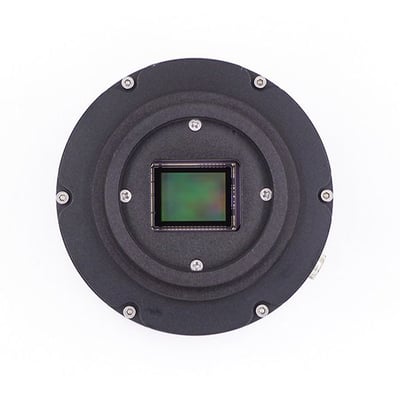

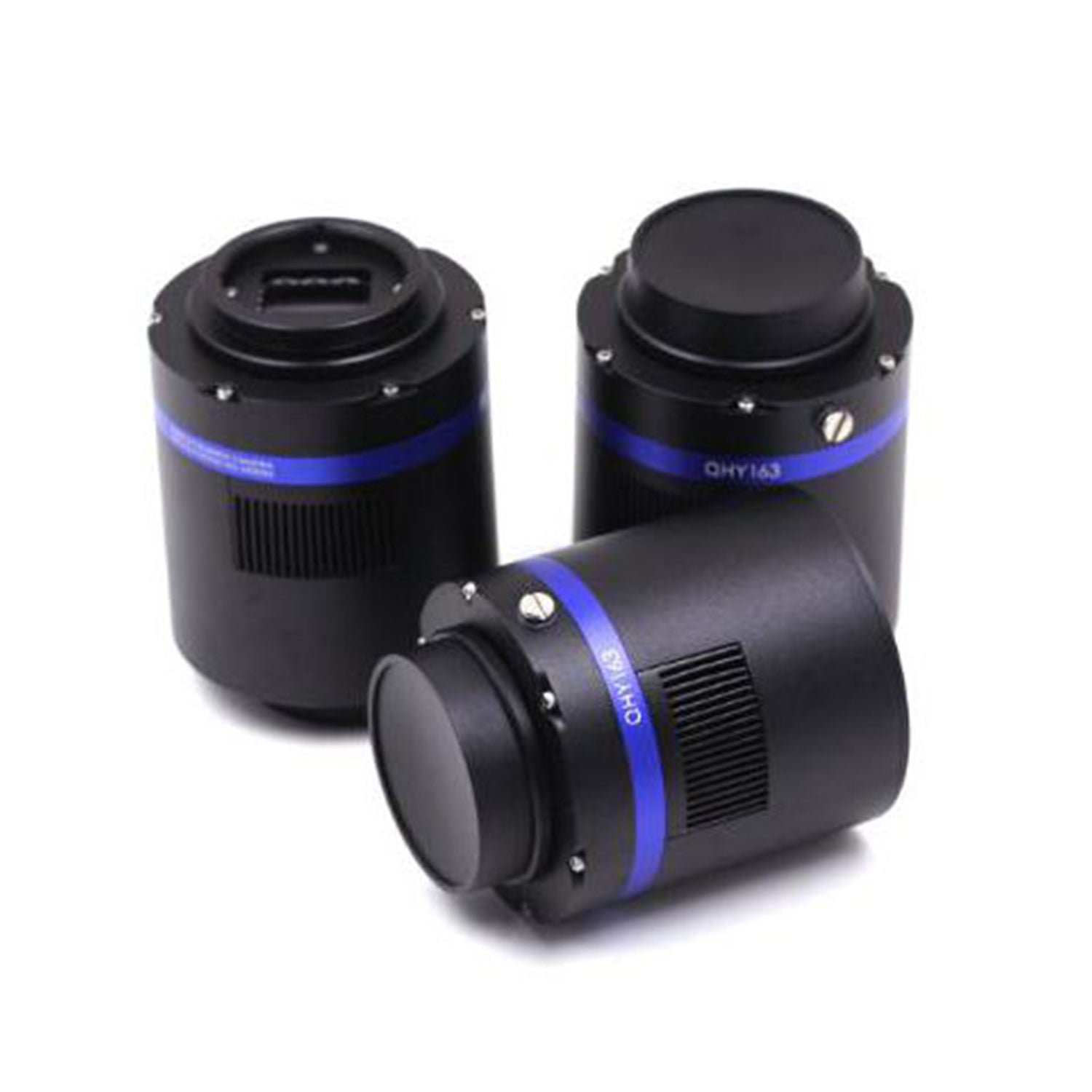

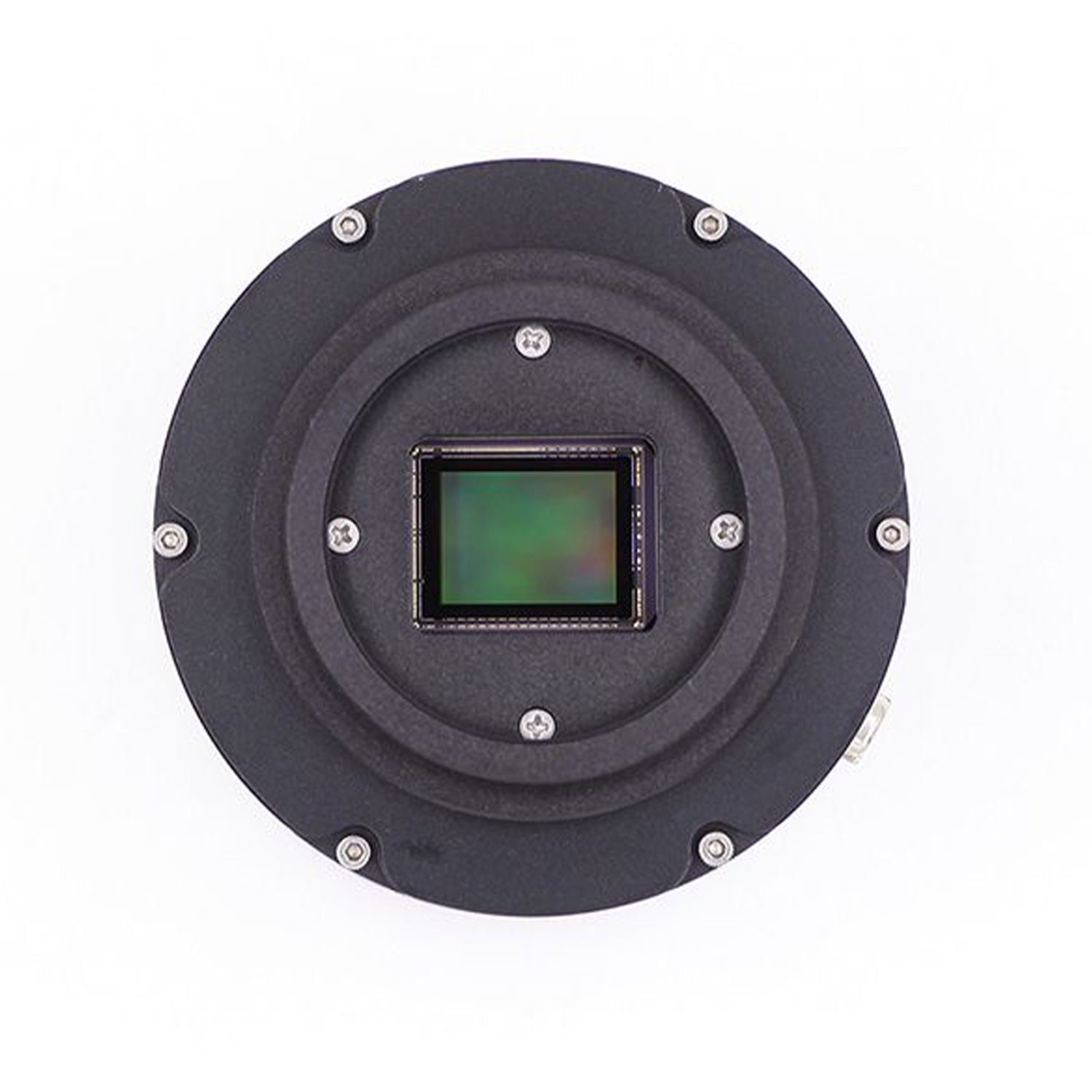

QHY163M
QHY
From ~$1,064.50
2 stores
In stock
The QHY163M is a 16-megapixel cooled CMOS camera featuring a 4/3" monochrome sensor with 3.8 micron pixels arranged in a 4656x3522 array, delivering exceptionally low readout noise of 1 electron and a full well depth of 18-20 ke−. The two-stage TEC cooling system cools the sensor as much as 45°C below ambient, ideal for warm summer observing conditions, while the camera achieves 22.5 frames per second at full resolution and supports 4K video output at 30fps. The camera includes anti-amplifier glow reduction circuitry, especially valuable for long-exposure deep-sky imaging at high gain, and its low read noise makes it ideal for use with narrowband filters.
Specifications
| Sensor diagonal | 22.2 |
| Sensor type | CMOS Chip (Panasonic MN34230) |
| Interface | USB 3.0 |
| Filter Wheel Port | 4-pin CFW2 |
| Pixel Size | 3.8 μm |
| Maximum Framerate | 22.5 fps |
| Back Focus Distance | 17.5 mm |
| Shutter Type | Rolling |
| Weight | 442 lb |
| Guide Port | 6-pin RJ11 ST-4 compatible |
| Sensor Size | 4 mm |
| Pixel Array | 4656 x 3522 |
| Full Well Depth | 18000 |
| 1080p Video Framerate | 57 fps |
| Exposure Range | 60 microseconds to 1800 seconds |
| Cooling Delta | -40 °C |
| Image Buffer | 128 |
| ADC | 16-bit |
| Read Noise | 1.0-2.4 |
| 4K Video Framerate | 30 fps |
| Resolution | 16″ |
