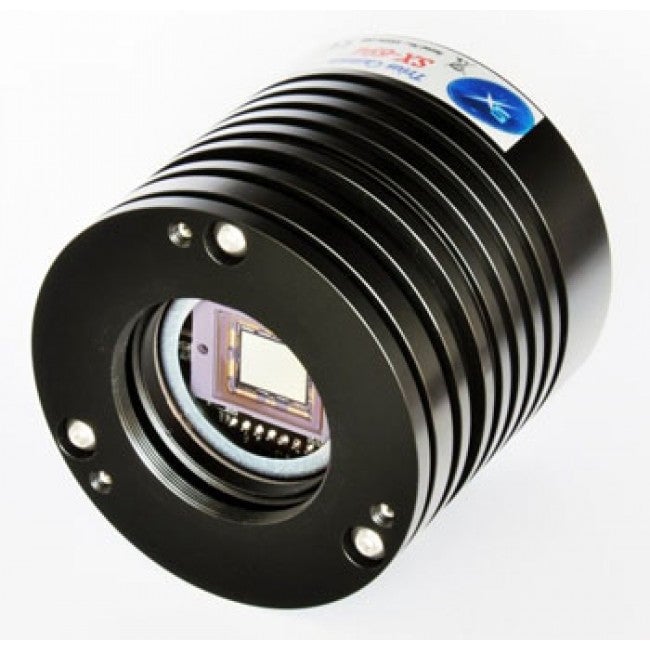

Trius PRO-694C - Color CCD Camera
Starlight Xpress
From ~$1,905.46
3 stores
The Starlight Xpress Trius PRO-694C is a one-shot color CCD camera designed for deep-sky astronomical imaging with a 6-megapixel Sony ICX694AQ EXview sensor delivering excellent image quality with minimal thermal noise. Featuring thermoelectric cooling to approximately 40 degrees Celsius below ambient and an argon-filled chamber, it achieves exceptionally low dark current suitable for long exposures without requiring dark frames. The camera includes an integrated three-port powered USB 2.0 hub for controlling autoguiders, filter wheels, and other accessories from a single computer connection, streamlining complex imaging setups.
First Light Optics
Starlight Xpress Trius PRO 694C Colour CCD Camera
Worldwide shipping
£1,399.00
~$1,905.46
Starizona
TRIUS PRO-694C Blue Edition CCD Color Camera
Worldwide shipping
$2,177.00
Astroshop.eu
Camera Trius PRO-694C Color
Worldwide shipping
€2,390.00
~$2,837.23
Specifications
| Download Time at Full Resolution | 5 s |
| Interface | USB 2.0 |
| Pixel Size | 4.54 μm |
| Full Well Capacity | 17000 |
| Barrel Diameter | 75 in |
| Warranty | 24 |
| Diagonal Size | 15.98 |
| Dark Current | 0.002 |
| Cooling Delta Temperature | -40 °C |
| Resolution | 6″ |
| Barrel Length | 70 mm |
| Peak Quantum Efficiency | 77% |
| Data Format | 16-bit |
| Cooling Type | Two-stage Thermoelectric Cooler |
| Resolution Unit | mp |
| Image Array | 2750 |
| Readout Noise | 3.5 |
| Power Requirements | 12 V |
| Weight | 450 lb |
| Sensor type | Sony ICX694AQ EXview CCD (Color Bayer Matrix) |
| USB Hub Ports | 3 |
| Chamber Fill | Dry Argon |
| QE at H-alpha | 65% |
| Download Speed | 2.8 s |
| Power Consumption | 1.5 W |
| Mount Thread | 42mm T2 |
| USB Port Current Per Port | 200 mAh |
