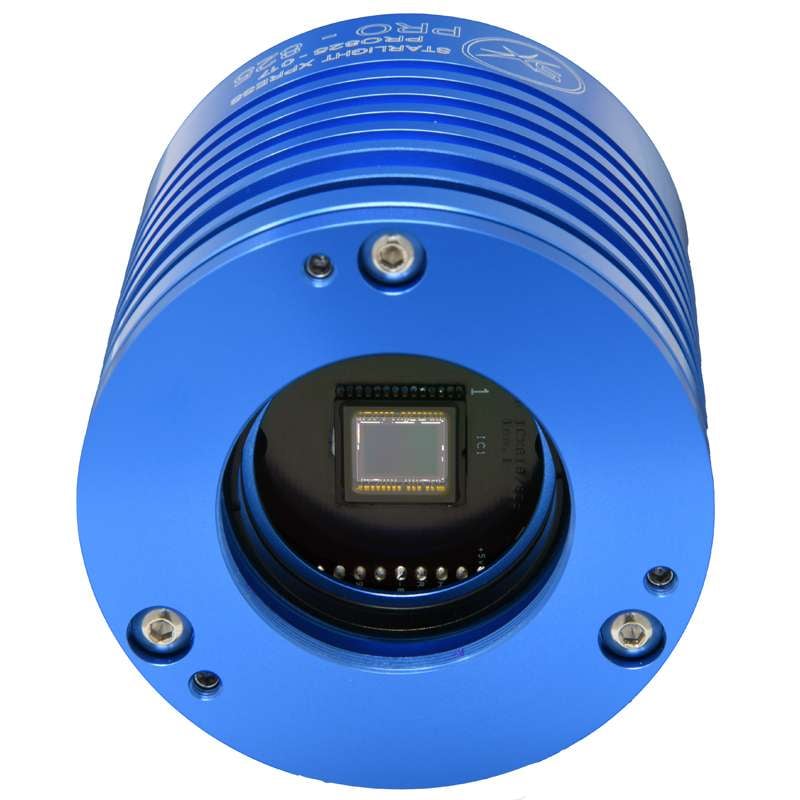

Trius PRO-825 - Monochrome CCD Camera
Starlight Xpress
From $1,285.20
2 stores
The Starlight Xpress Trius PRO-825 is a premium monochrome CCD camera featuring the Sony ICX825AL EXview II sensor with excellent quantum efficiency and ultra-low dark current, ideal for both deep-sky and planetary imaging. This compact camera delivers 1.4 megapixels with remarkably fast 2.8 million pixels per second download speeds and exceptional read noise of just 3.5 electrons, combined with sophisticated thermoelectric cooling achieving -40°C below ambient temperature in an argon-filled chamber. The integrated USB hub with three accessory ports, built-in autoguider output, and compatibility with standard telescope interfaces make it a versatile choice for serious astrophotographers seeking low-noise, high-resolution imagery.
Specifications
| Full Well Capacity | 23000 |
| Power Supply | 12 V |
| Anti-blooming Overload Margin | 800 |
| Pixel Size | 6.45 μm |
| Readout Noise | 3.5 |
| Camera Dimensions | 75 mm |
| CCD Quality Grade | Grade 1 or better |
| Image Format | 1392 x 1040 |
| Spectral Response Peak | 580 |
| Weight | 450 lb |
| USB Version | USB 2.0 |
| Quantum Efficiency Peak | 75% |
| Sensor Array Size | 8.98 mm |
| Interface Thread | 42mm T2 |
| Resolution | 1.4″ |
| Download Speed | 2.8 s |
| CCD Type | Sony ICX825AL EXview II |
| Cooling Delta T | -40 °C |
