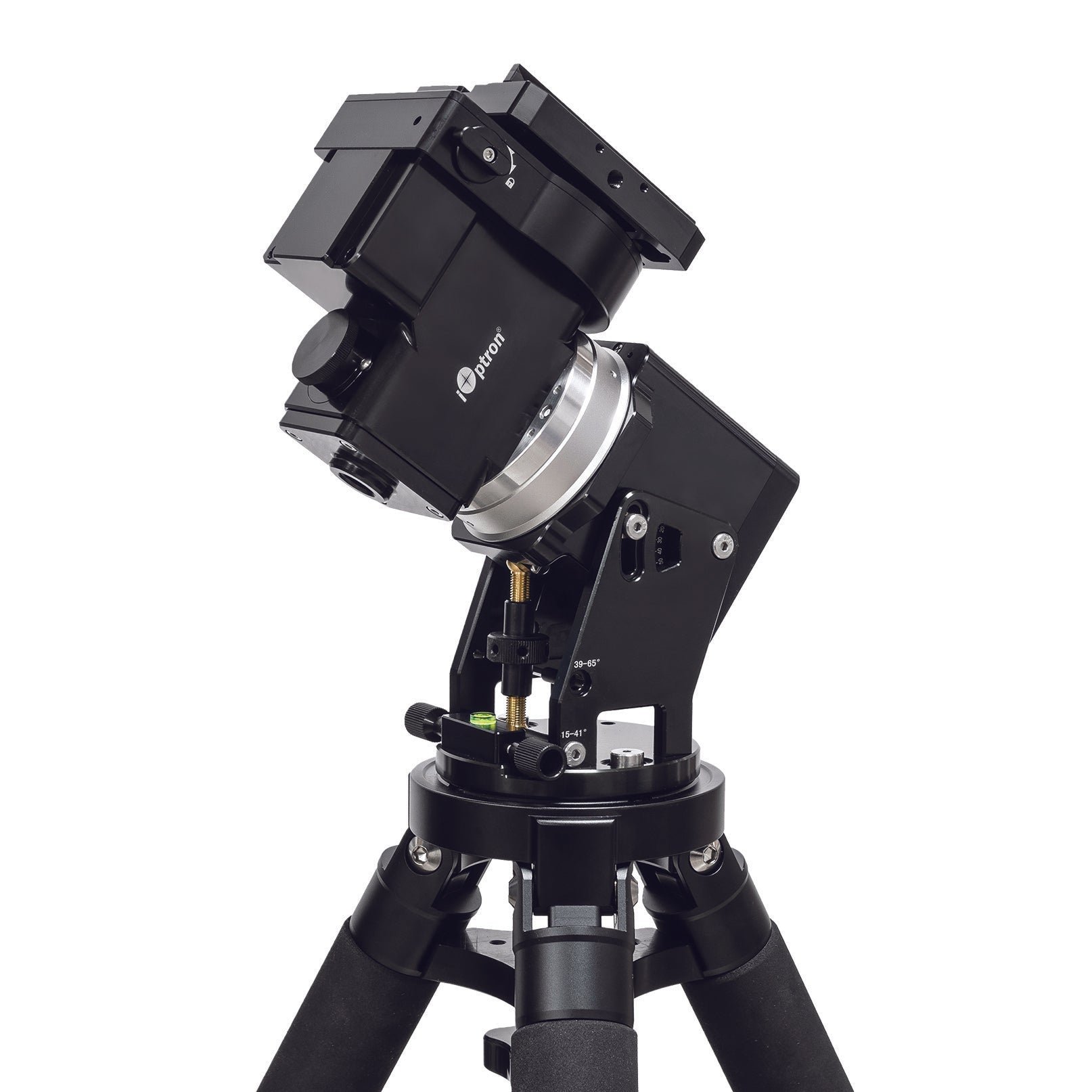

HEM44EC Hybrid Equatorial Mount w/ iPolar & High Precision Encoder

iOptron

From $4,148.00

4 stores

In stock

The iOptron HEM44EC is a revolutionary hybrid equatorial mount featuring strain wave drive technology on the RA axis combined with a backlash-free worm/belt drive on the declination axis, delivering exceptional tracking accuracy without the need for counterweights. Weighing just 13.65 lbs while supporting a 44 lb payload, this portable mount includes a high-precision RA encoder with real-time periodic error correction (RPEC) enabling unguided imaging with shorter focal lengths, plus an integrated iPolar electronic polar scope for rapid and accurate polar alignment. The mount features an electronic friction brake for safe power-loss protection, power-down memory to resume slewing automatically, dual saddle compatibility (Vixen and Losmandy-D), and the Go2Nova hand controller with access to over 212,000 celestial objects, making it ideal for astrophotographers seeking observatory-grade performance in a travel-friendly package.

Specifications

Gear Period 270 s
Latitude Adjustment Range 15°
Warranty 2
Polar Scope iPolar electronic polar scope
Drive Motor Stepper Motor
Azimuth Adjustment Range
Payload Capacity 44 lb
Mount Weight (with saddle) 6.2 kg
Dual Saddle Vixen and Losmandy-D styles
RA Reduction Ratio 640:1
Periodic Error Correction Real-time PEC
Material CNC machined aluminum, black anodized
RA Gear System Strain Wave Drive

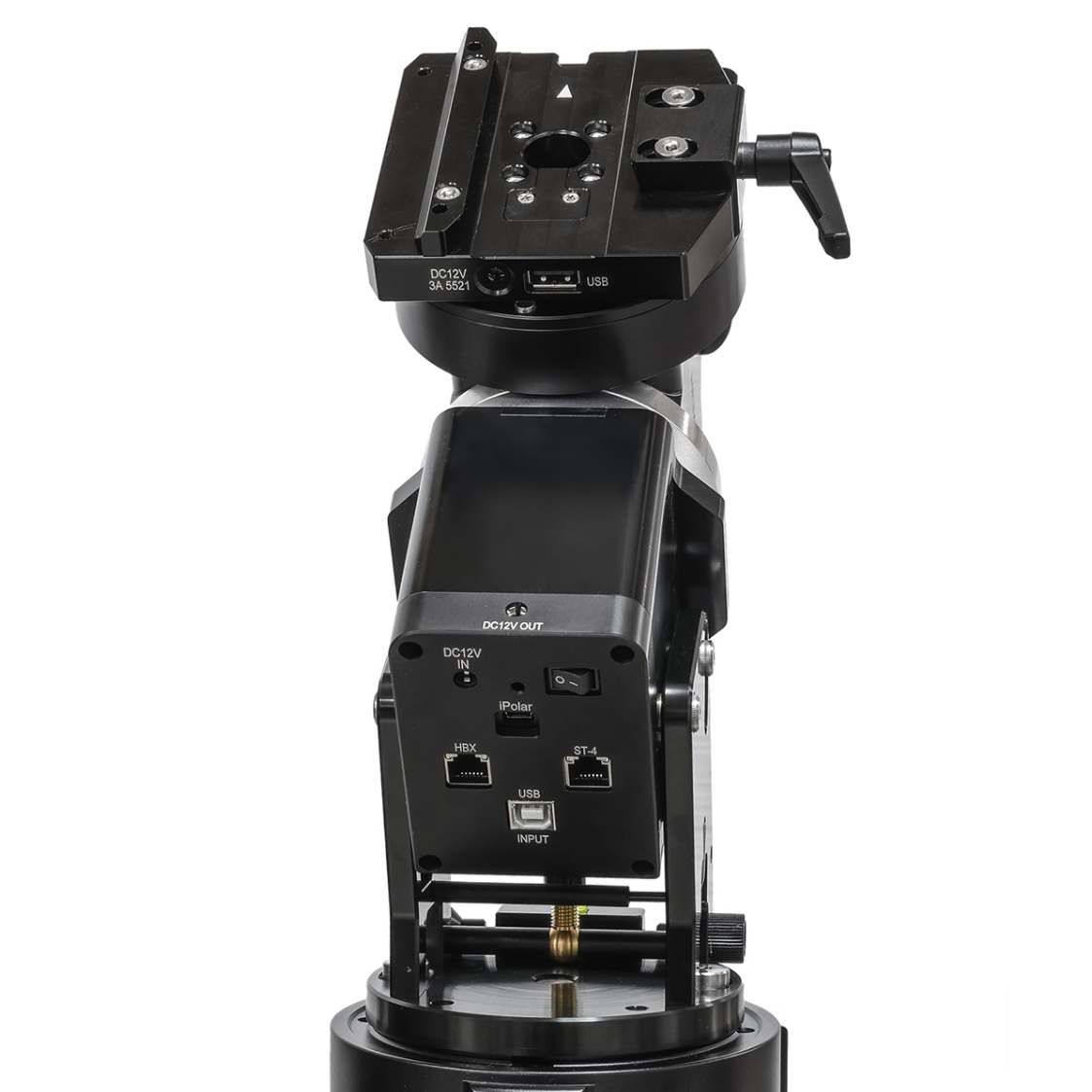

Connectivity Wi-Fi, USB, ASCOM, INDI compatible
Mount Weight 13.65 lb
Payload Capacity (metric) 20 kg
Autoguiding Port ST-4 compatible
DEC Gear System Backlash-free Worm/Belt System
High Precision Encoder (RA)
Mount type Hybrid Equatorial
Hand Controller Go2Nova with 212,000+ object database
