HEM27 Hybrid Equatorial Mount

iOptron

From $1,888.00

6 stores

In stock

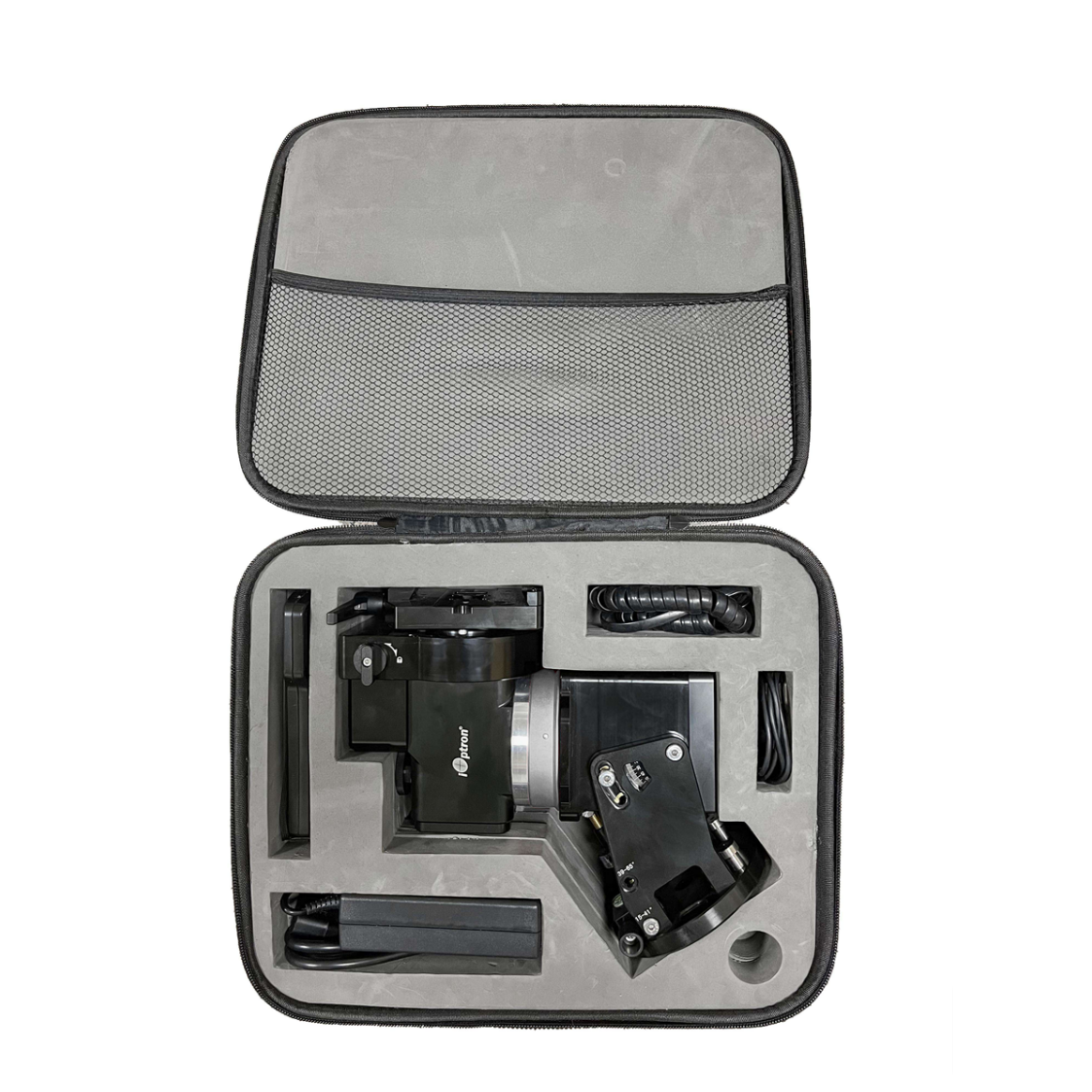

The HEM27 is iOptron's revolutionary hybrid equatorial mount utilizing state-of-the-art strain wave drive technology for RA movement paired with a backlash-free DEC worm/belt drive design. With a payload capacity of 13.5 kg (29.7 lbs) and mount weight of just 3.7 kg (8.15 lbs), this compact mount achieves exceptional weight-to-payload efficiency without requiring a counterweight. Features include the Go2Nova hand controller with approximately 212,000 object database, permanent periodic error correction, electronic friction brake for safe power interruption protection, internal cable management, dual Vixen/Losmandy saddle, and built-in WiFi. The mount comes with a soft carrying case and carries a two-year warranty, making it ideal for portable astrophotography and observing sessions.

Specifications

Object Database 212000
Mount Weight with Dovetail 3.7 kg
Gear Period 360 s
DEC Gear System Backlash-free worm/belt
Payload Capacity 29.7 lb
Warranty 2
RA Gear System Strain Wave 17
Hand Controller Go2Nova 8409
Maximum OTA Size 220 mm
Saddle Type Dual (Vixen and Losmandy-D)
Mount Weight 8.15 lb
RA Reduction Ratio 120
Mount type Hybrid Equatorial with GoTo
