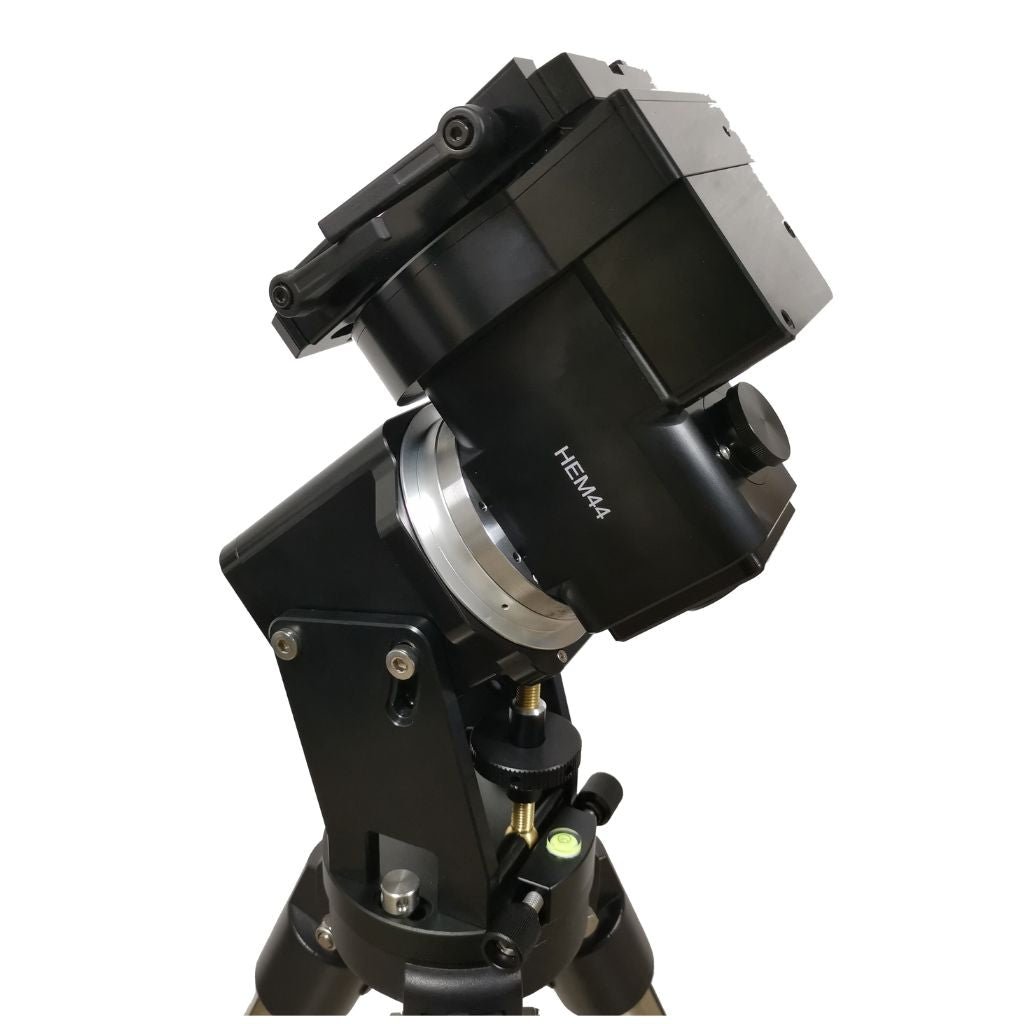

HEM44 Hybrid Equatorial Mount
iOptron
From $2,698.00
4 stores
The iOptron HEM44 is a revolutionary hybrid equatorial mount featuring strain wave drive technology on the RA axis combined with a backlash-free DEC worm/belt drive. Weighing just 13.65 pounds, it delivers an exceptional 44-pound payload capacity without requiring counterweights, making it ideal for portable astrophotography setups with telescopes up to 8-inch SCTs or 5-inch refractors. The mount includes the Go2Nova 8409 hand controller with a 212,000+ object database, Permanent Periodic Error Correction (PPEC) for accurate long-exposure tracking, and features a compact CNC-machined aluminum body with dual Vixen and Losmandy-D saddle compatibility. Its electronic friction brake and power-down memory ensure safe operation even during power loss, while built-in WiFi and USB connectivity allow control via computer, smartphone, or Raspberry Pi for flexible field and observatory deployment.
OPT
HEM44 Hybrid Equatorial Mount
Worldwide shipping
$2,698.00
High Point Scientific

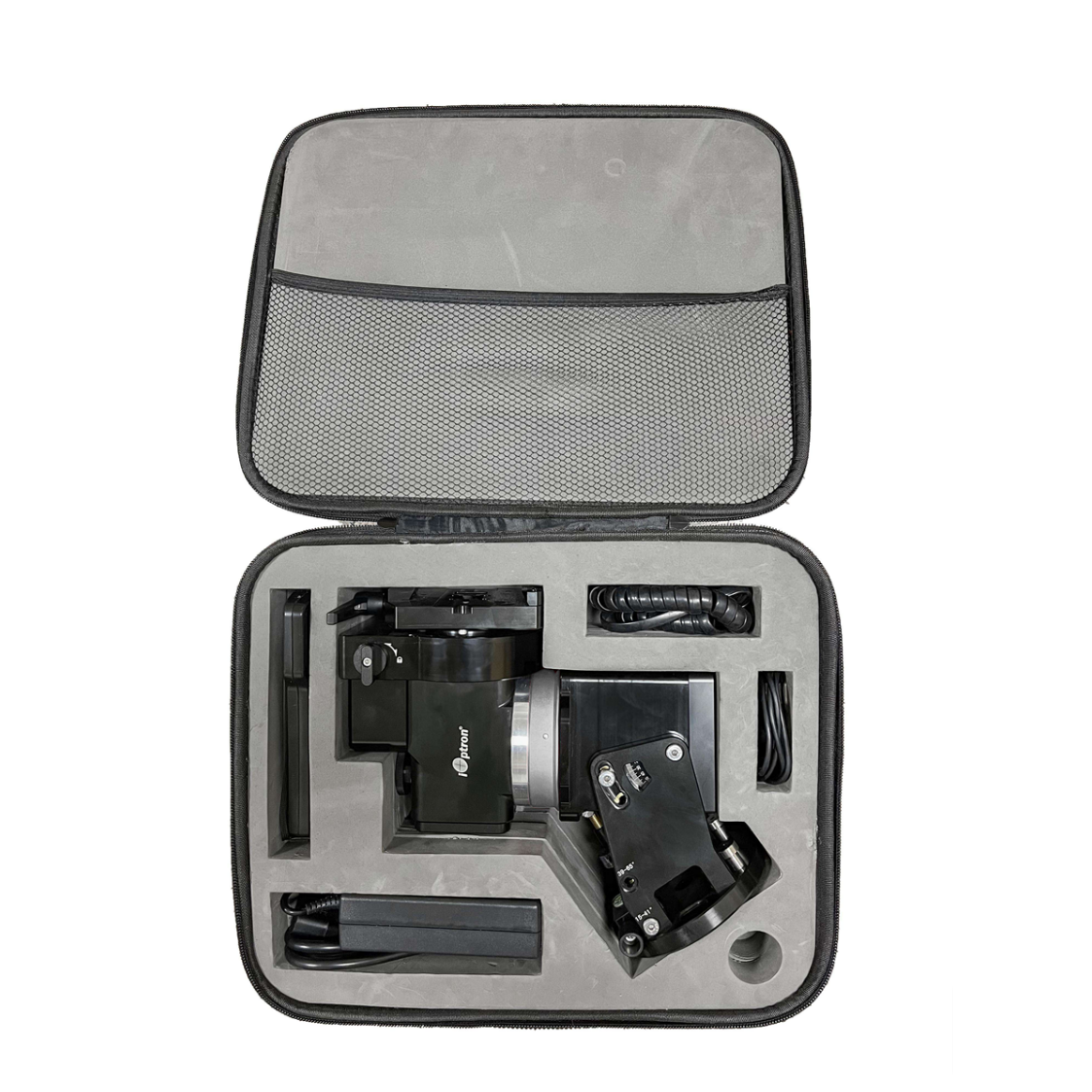

HEM44 Hybrid Equatorial Mount Head, Hand Controller, and Case
Ships to US only
$2,919.00
Astronomy Plus
HEM44 Hybrid Harmonic Drive Equatorial Mount
Worldwide shipping
CA$4,311.00
~$3,150.51
Astroshop.eu
Mount HEM44 Hybrid EQ
Worldwide shipping
€3,390.00
~$3,996.46
Specifications
| Mount Weight | 6.2 lb |
| Payload Capacity | 20 lb |
| RA Gear System | Strain Wave (Harmonic Drive) |
| DEC Gear System | Backlash-free Worm/Belt |
| RA Reduction Ratio | 640 |
| Gear Period | 270 s |
| Latitude Adjustment Range | 65° |
| Drive Motor | Stepper Motor |
| Structure Material | All Metal, CNC Machined |
| Exterior Finish | Anodized Black |
| Saddle Type | Dual Vixen and Losmandy-D |
| Hand Controller | Go2Nova 8409 |
| Object Database | 212000 |
| Periodic Error Correction | Permanent Periodic Error Correction (PPEC) |
| Autoguiding Port | ST-4 Compatible |
| Connectivity | USB, WiFi |
| Control Options | Computer (ASCOM/INDI), Smartphone/Tablet, Raspberry Pi |
| Counterweight Required | false |
| Features | Electronic Friction Brake, Power-Down Memory, Zero Position Search and Locator |
