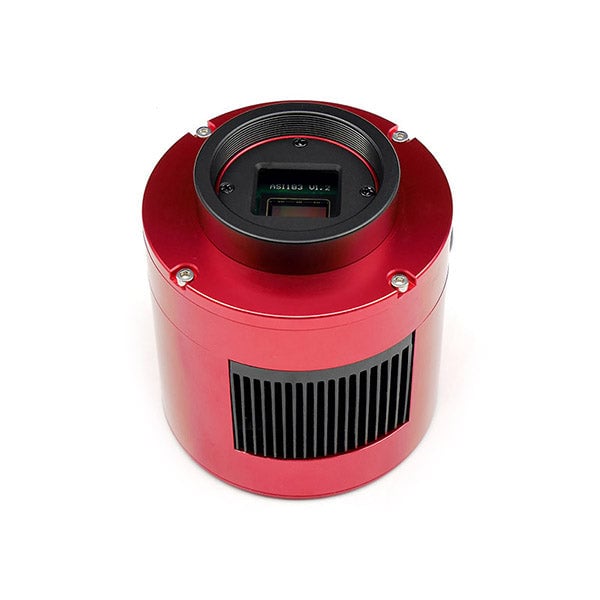

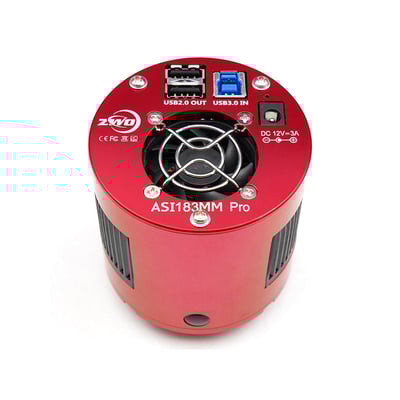

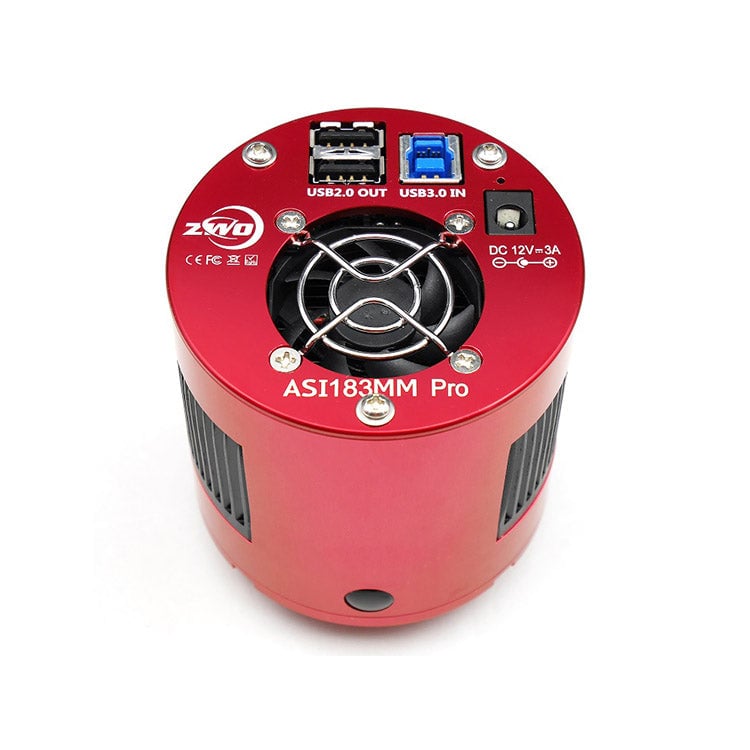

ASI183MM Pro USB3.0 Cooled Monochrome Astronomy Camera - ASI183MM-P
ZWO
From $999.00
3 stores
The ZWO ASI183MM Pro is a versatile and highly sensitive cooled monochrome astronomy camera featuring a 20.1-megapixel Sony IMX183 back-illuminated CMOS sensor with 5496x3672 resolution and 2.4-micron pixel size, ideal for capturing high-resolution images of deep-sky objects such as nebulae, supernova remnants, and galaxies, as well as lunar and solar imaging and electronically-assisted astronomy. With integrated TEC cooling that reduces sensor temperature 40-45°C below ambient, the camera achieves fast USB3.0 transfer at up to 19 fps at full resolution, backed by a 256MB DDR3 buffer for stable data transfer and reduced amp glow. Its high peak quantum efficiency of 84%, low readout noise of 1.6e, and back-illuminated sensor design make it an incredibly sensitive camera with exceptional signal-to-noise ratio.
Specifications
| Sensor Dimensions | 13.2 |
| Frame Rate at Full Resolution | 19 fps |
| Buffer Memory | 256 |
| Camera Power Consumption | 650 mAh |

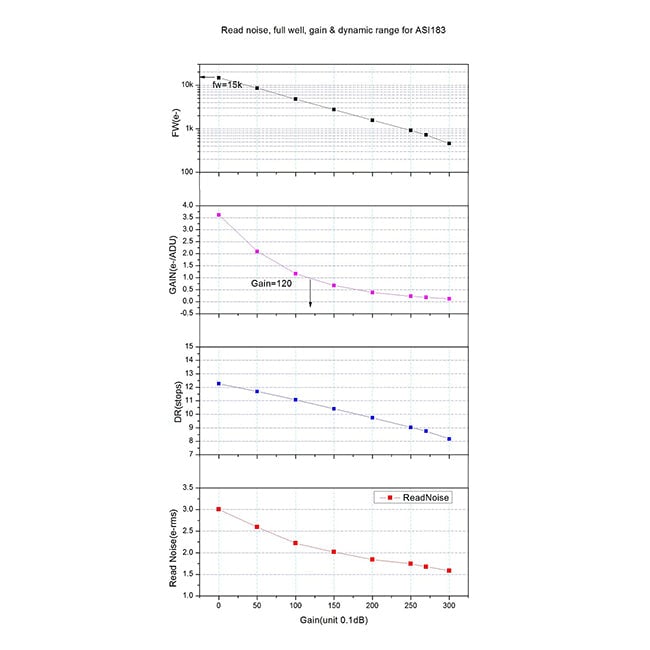

| Read Noise | 1.6 |
| Exposure Range | 32 µs - 2000 s |
| Weight | 410 lb |
| Sensor diagonal | 15.9 |
| Cooler Power Supply Required | 12 V |
| Sensor type | Sony IMX183CLK-J Back-Illuminated CMOS |
| Full Well Capacity | 15000 |
| Cooling Type | Regulated Two Stage TEC |
| Back Focus Distance | 6.5 mm |

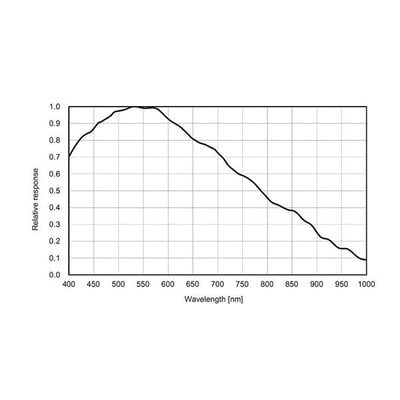

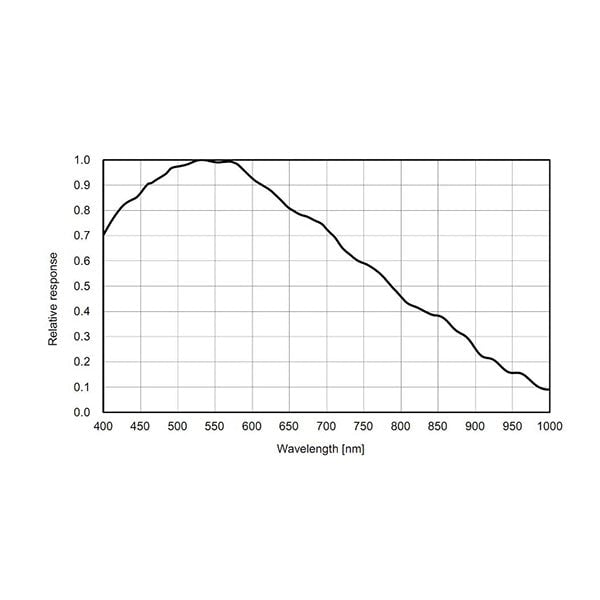

| Peak Quantum Efficiency | 84% |
| Shutter Type | Rolling shutter |
| Diameter | 78 mm |
| Cooler Power Consumption | 3 A |
| Guider Port | ST4 |
| Pixel Size | 2.4 μm |
| USB Interface | USB 3.0 / USB 2.0 |
| Resolution Array | 5496 x 3672 |
| Resolution | 20.1″ |
| Sensor Format Size | 1 inch |
| ADC Resolution | 12 |
| Cooling Temperature Reduction | 40 °C |
| Operating Temperature Range | -5 °C |
| Dynamic Range | 12 |
