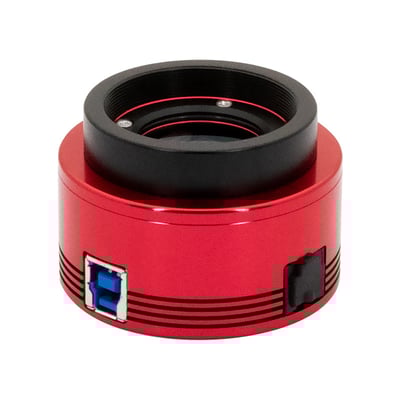

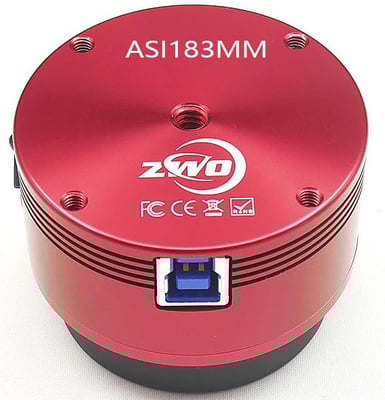

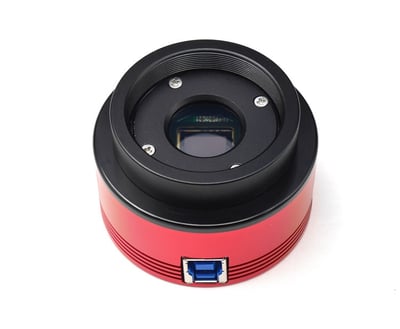

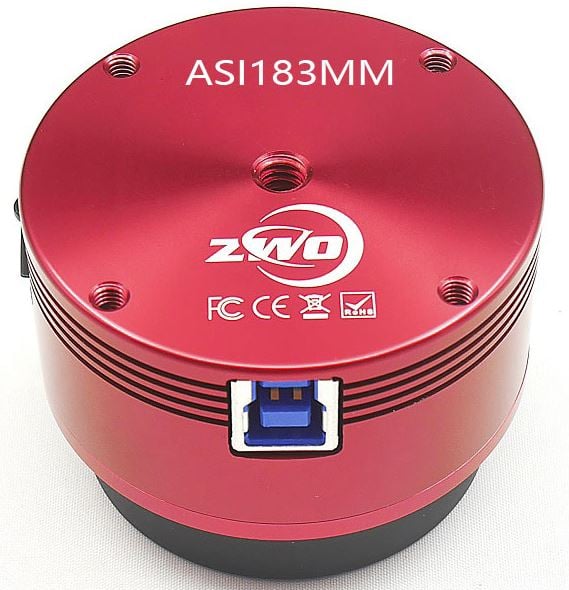

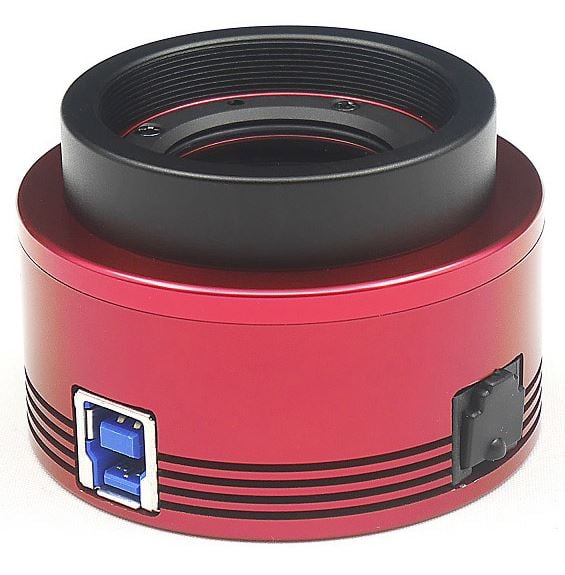

ASI183MM

ZWO

From $699.00

8 stores

In stock

The ZWO ASI183MM is a versatile monochrome astronomy camera featuring a 20.1-megapixel Sony IMX183 back-illuminated CMOS sensor with 5496x3672 resolution and 2.4-micron pixel size, ideal for capturing high-resolution images of deep-sky objects, lunar and solar imagery, and real-time electronically-assisted astronomy (EAA). With peak quantum efficiency of 84% and QE over 60% at hydrogen-alpha wavelengths, the camera delivers exceptional light sensitivity and low noise at 1.6e read noise with 15,000e full well capacity. The camera features fast USB3.0 transfer at up to 19 fps at maximum resolution, compact 78mm diameter construction, and comes ready to use with cables, adapters, and manual.

Specifications

Sensor resolution 5496
Sensor Sony IMX183CLK J
Sensor read noise 1.6
Sensor type CMOS Chip (Sony IMX183)
Sensor diagonal 15.86
Sensor Resolution Megapixels 20.1 MP
Sensor pixel size 2.4
Quantum Efficiency Peak 84%
Full Well Capacity 15000
Maximum Frame Rate Full Resolution 19 fps
ADC Bit Depth 12
Interface USB 3.0
Dynamic Range 12
Sensor Size Format 1 inch
Sensor Dimensions Width 13.2 mm
Sensor Dimensions Height 8.8 mm

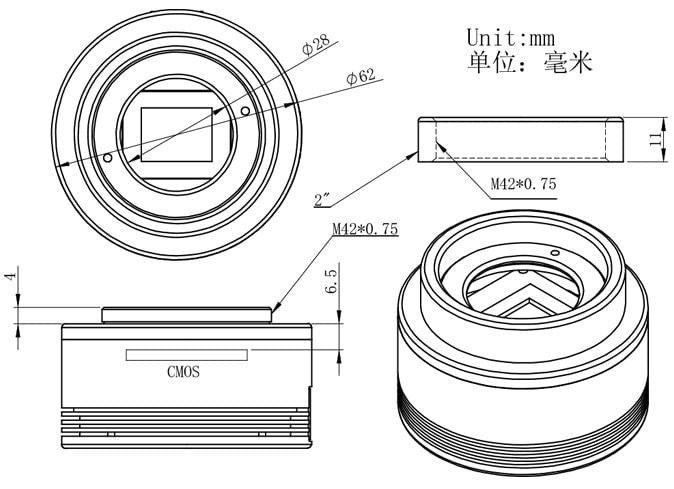

Camera Body Diameter 62 mm
Camera Weight 120 g
Back Illuminated Sensor
Bayer Filter Pattern None
Shutter Type Rolling shutter
H-alpha Quantum Efficiency 60%
