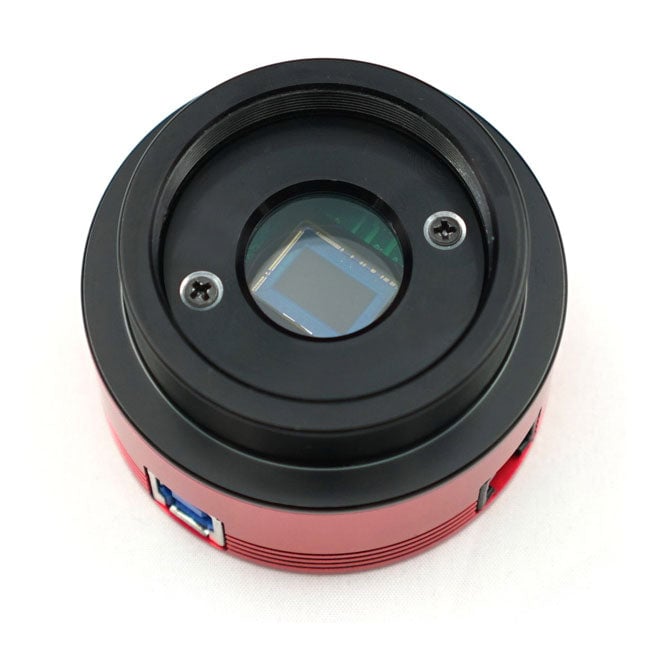

ASI174MM USB 3.0 Monochrome CMOS Imaging Camera - ASI174MM

ZWO

From $599.00

4 stores

In stock

The ZWO ASI174MM is an advanced monochrome astronomy camera with 2.35 megapixel CMOS sensor ideal for capturing high-resolution images of the Moon, planets, Sun (with proper solar filter), and brighter deep-sky objects. Built around the Sony IMX174 sensor with Exmor technology for high-speed processing, low noise, and low power dissipation, the camera delivers fast USB 3.0 transfer at up to 164 fps at maximum 1936x1216 resolution and can reach 397 fps at 640x480. The camera features a robust CNC machined red-anodized aluminum body that stands up to heavy field use and an AR-coated glass window that protects the sensor and helps keep images sharp. Beyond its astrophotography capabilities, the ASI174MM can also be used as a highly capable guide camera with an included ST4 port that connects directly to a telescope mount to assist with tracking accuracy.

Specifications

Sensor type Sony IMX174 CMOS Monochrome
Sensor diagonal 13.4
Sensor Size 1 mm
Resolution 1936″
Frame Rate (10-bit, Full Resolution) 164 fps

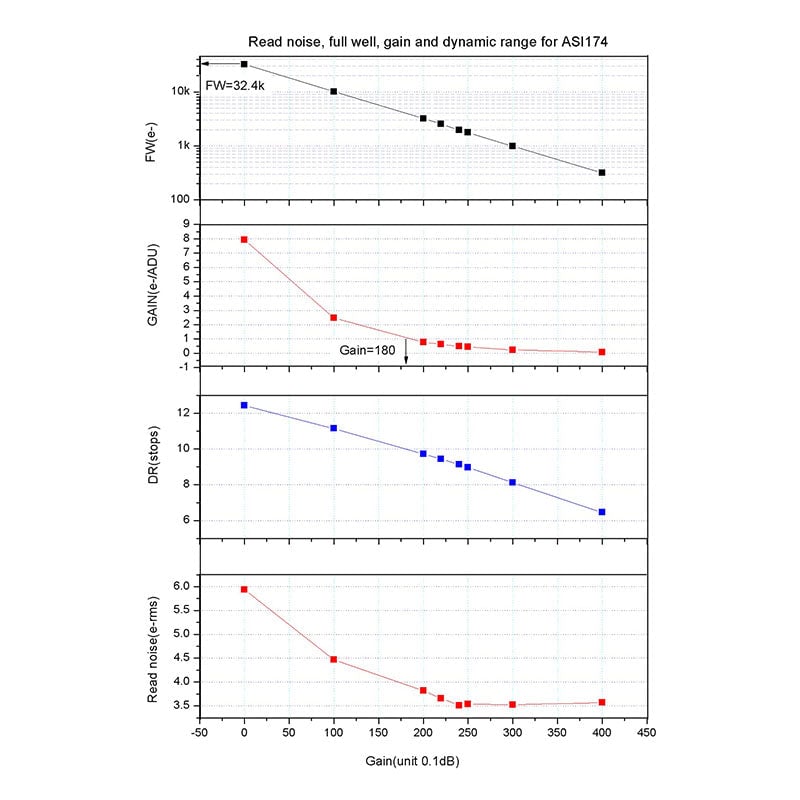

Read Noise (Low Speed Mode) 6
ROI (Region of Interest) Supported
Megapixels 2.35 MP
Guiding Port ST4
Pixel Size 5.86 μm
Housing Material Red anodized CNC aluminum
Frame Rate (12-bit, Full Resolution) 128 fps

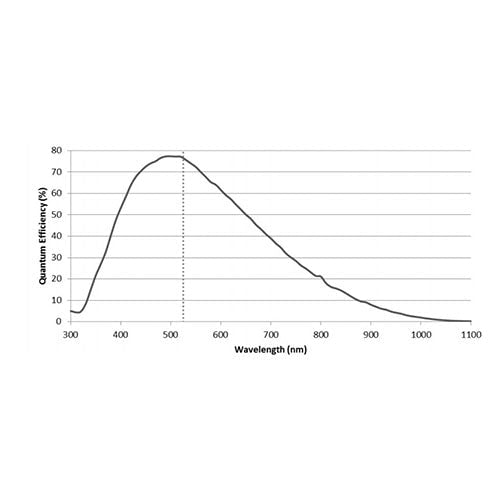

Quantum Efficiency Peak 78%
Exposure Range 32 us to 1000 s
Operating Temperature Range -5 °C
Frame Rate (640x480, 10-bit) 397 fps
Read Noise (High Speed Mode) 15
Dimensions 62 x 41 mm
ADC Bit Depth 12-bit
Full Well Capacity 32000
Weight 140 lb
Interface USB 3.0 (backward compatible with USB 2.0)
Shutter Type Global Shutter
