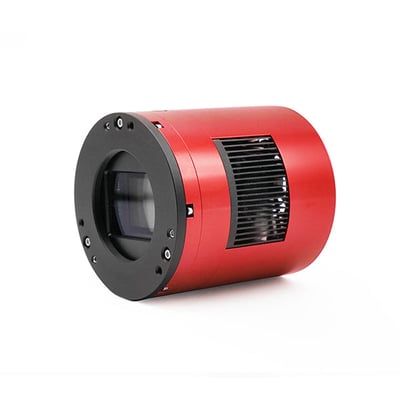

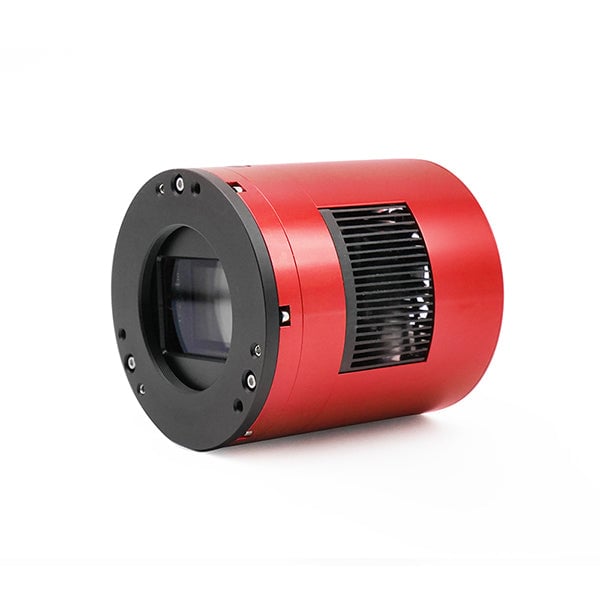

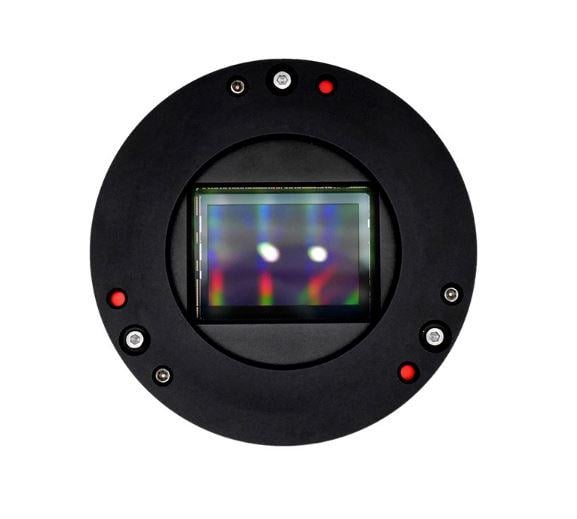

ASI6200MM Pro Cooled Monochrome Camera Imaging Package
ZWO
From $4,596.00
2 stores

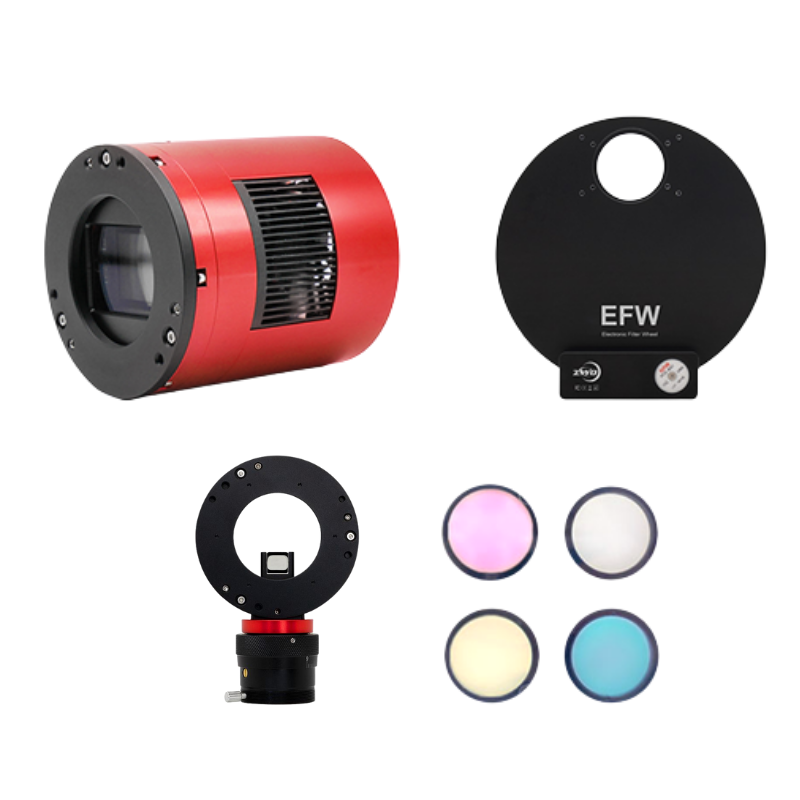

The ZWO ASI6200MM Pro is a professional-grade full-frame monochrome astrophotography camera built around Sony's back-illuminated IMX455 sensor, delivering 61.2 megapixels of exceptional detail with ultra-low noise for deep-sky imaging. This imaging package includes the cooled camera body, a 2-inch 5-position electronic filter wheel, OAG-L off-axis guider, and LRGB filter set, providing everything needed to begin serious astrophotography immediately. With native 16-bit ADC technology, two-stage TEC cooling down to 35°C below ambient, zero amp glow, and 91% peak quantum efficiency, the ASI6200MM Pro is ideal for capturing stunning images of galaxies, nebulae, and star clusters through targeted narrowband or LRGB filter imaging.
Specifications
| Sensor type | Sony IMX455 Back-Illuminated CMOS (Monochrome) |
| Read Noise | 0.86 |
| Buffer Memory | 512 |
| Power Requirements | 12 V |
| Resolution | 61.2″ |
| Full Well Capacity | 51.4 |
| Cooling System | Two-Stage TEC |
| Sensor Dimensions | 36 |
| Quantum Efficiency Peak | 91% |
| Cooling Capacity | 35 °C |
| Filter Set (Included) | 2-inch LRGB |
| Sensor diagonal | 43.3 |
| ADC Resolution | 16 |
| Maximum Frame Rate (Full Resolution) | 3.19 fps |
| Pixel Size | 3.76 μm |
| Dynamic Range | 14 |

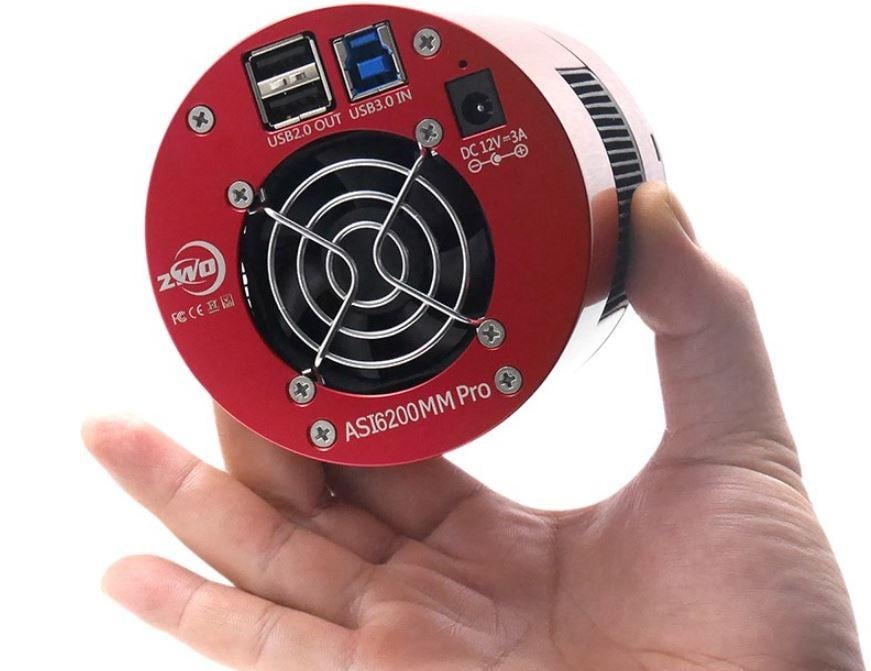

| Interface | USB 3.0 / USB 2.0 |
| Filter Wheel (Included) | 2-inch 5-Position Electronic |
| Maximum Power Consumption | 5.75 W |
| Zero Amp Glow | ✓ |
| Camera Weight | 0.7 g |
| Anti-Dew Heater | ✓ |
| Back Focus Distance | 17.5 mm |
| Shutter Type | Rolling Shutter |
| Exposure Range | 32 microseconds to 2000 seconds |
| Off-Axis Guider (Included) | OAG-L |
