ASI 183MC Pro (Color)
ZWO
From $799.00
2 stores

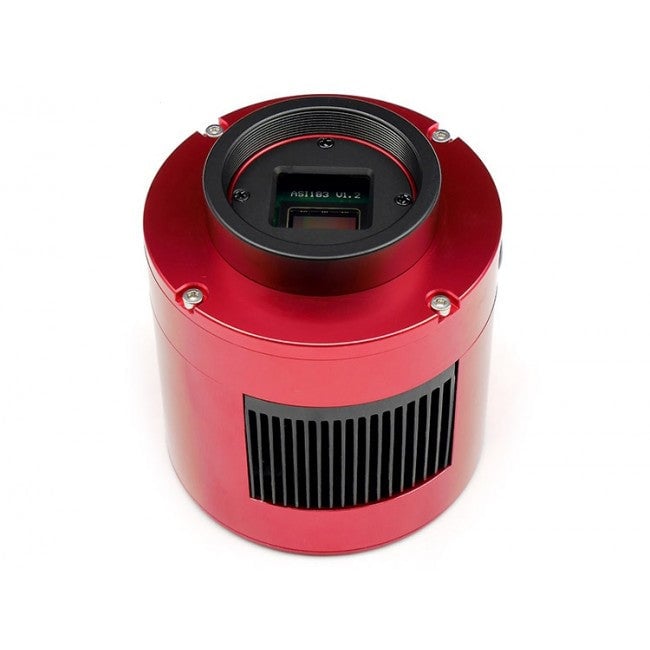

The ZWO ASI183MC Pro is a cooled color astronomy camera with small pixels for resolving fine details in deep sky astrophotography, lunar and solar imaging, and electronically-assisted astronomy (EAA). At its heart is the highly acclaimed Sony IMX183 CMOS sensor, featuring 20.18-megapixel resolution, 2.4-micron pixel size, and back-illuminated architecture for maximum light-gathering efficiency. The integrated TEC cooling reduces sensor temperature to 40-45°C below ambient to enable low-noise imaging of fainter deep-sky objects, with fast USB3.0 transfer at up to 19 fps at maximum resolution. With a peak quantum efficiency of over 84%, this means more photons are effectively converted into electronic signals, reducing the need for long exposure times and improving signal-to-noise ratios, even when imaging fainter targets.
Specifications
| Pixel Size | 2.4 μm |
| Pixel Array | 5496 x 3672 |
| Dynamic Range | 12 |
| TEC Cooling Capacity | 35 °C |
| Read Noise | 1.6 |
| Body Diameter | 78 mm |
| Color Type | One-shot color |
| Sensor type | Sony IMX183 back-illuminated CMOS |
| Peak Quantum Efficiency | 84% |
| USB 3.0 Bandwidth | 5 GB |
| Required External Power | 12 V |
| Full Well Capacity | 15000 |
| USB Interface | USB 3.0 |
| Cooling Type | Two-stage TEC |
| Sensor Size | 13.2 mm |
| Maximum Frame Rate Resolution | 320 x 240 |
| Resolution | 20.18″ |
| Sensor diagonal | 15.86 |
| Ha Channel Quantum Efficiency | 60% |
| Maximum Frame Rate | 308.17 fps |
| Weight | 410 lb |
| Power Consumption (USB) | 650 |
| Frame Rate (Full Resolution) | 19 fps |
| Buffer Memory | 256 |
