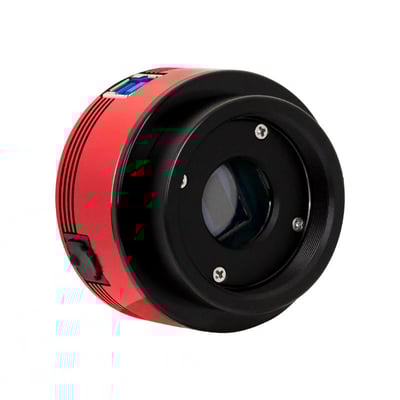

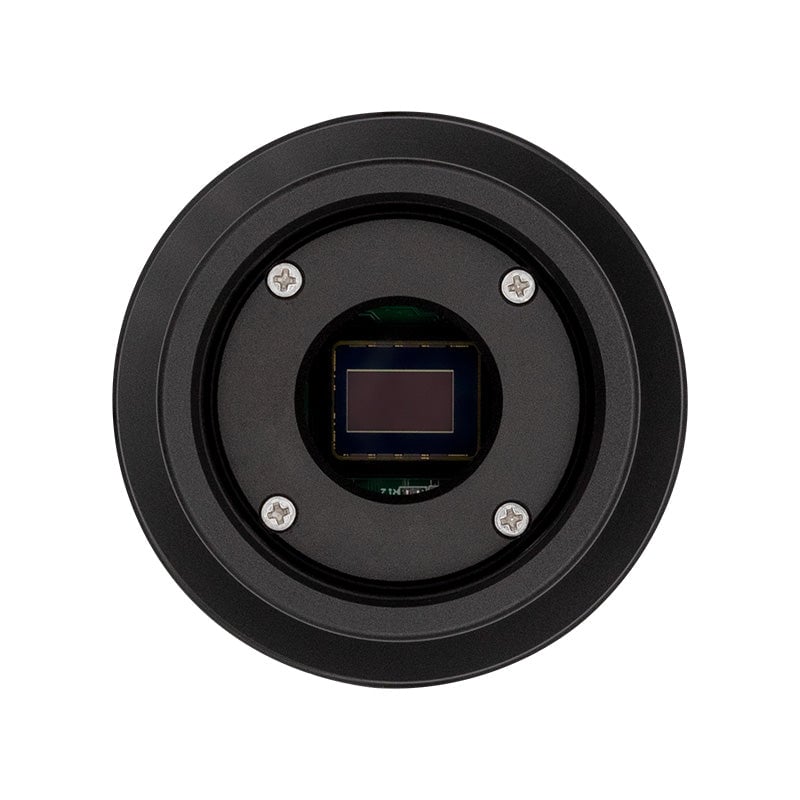

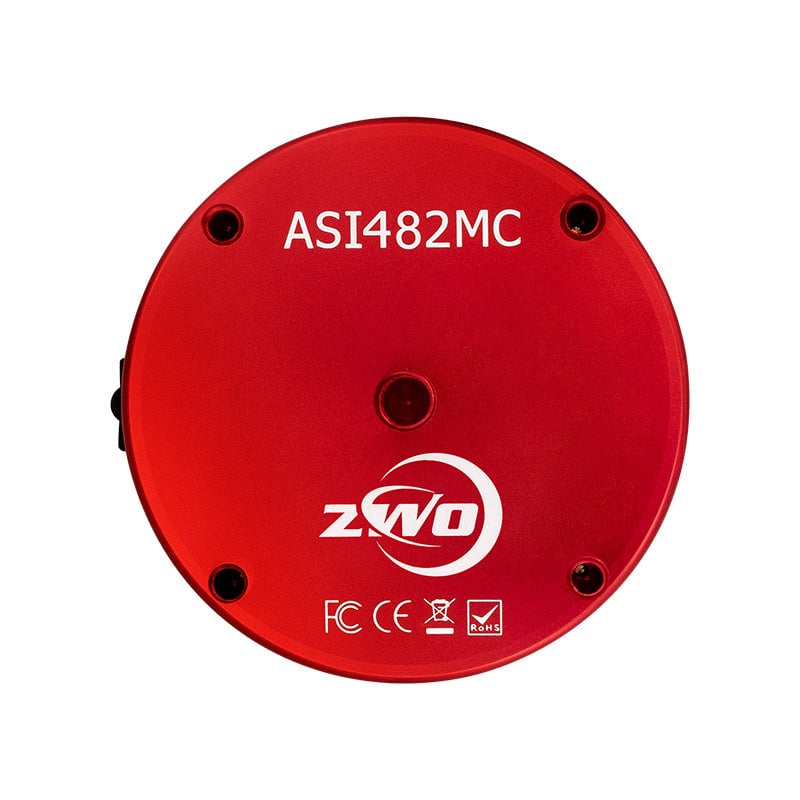

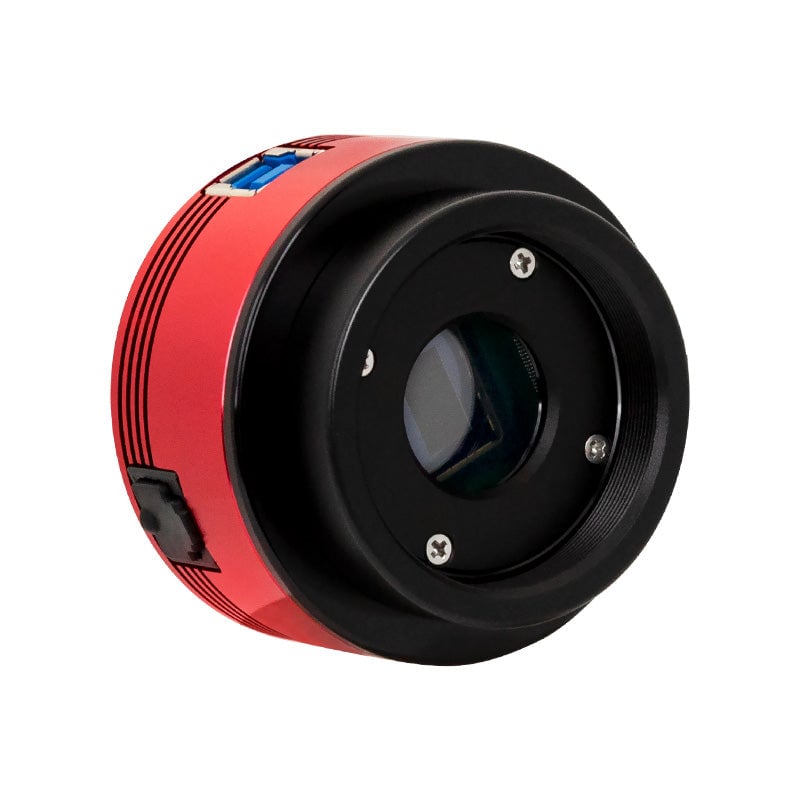

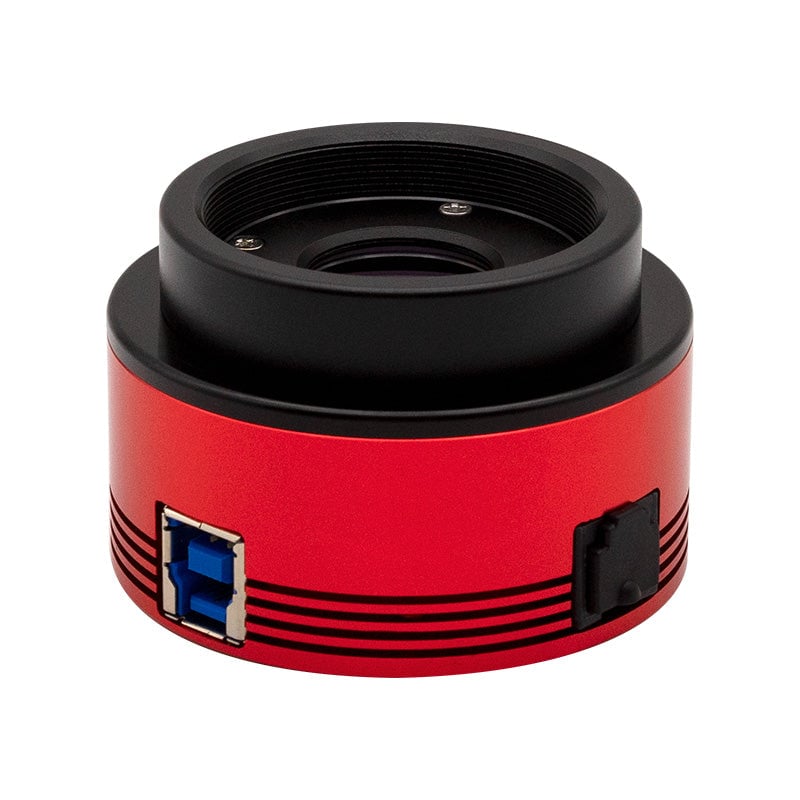

ASI482MC
ZWO
From $349.00
3 stores
In stock
Based on the Sony IMX482 back-illuminated CMOS sensor, the ZWO ASI482MC color camera offers a relatively large sensor and excellent noise performance for imaging planets, the moon and sun, and deep-sky objects. The camera features a large pixel size of 5.8um, USB 3.0 interface, large full-well depth of 51.5ke-, extremely high sensitivity and super low read-out noise. It provides 5Gb bandwidth to let the camera run at 82.5fps (10bit, high-speed mode) or 57.5fps (12bit, normal mode) at full resolution. This versatile camera excels for both planetary and deep-sky imaging with exceptional low-light performance.
Specifications
| Sensor type | CMOS |
| Sensor diagonal | 12.86 |
| Sensor | Sony IMX482 |
| Sensor pixel size | 5.8 |
| Sensor resolution | 2.1 |
| Sensor read noise | 1.5 |
| Full Well Capacity | 51.5 |
| Resolution Dimensions | 1920 x 1080 |
| Maximum Frame Rate | 82.5 fps |
| Frame Rate (12-bit Mode) | 57.5 fps |
| Storage Temperature Range | -10 °C |
| Operating Humidity Range | 0% |
| Color Type | One-shot color (Bayer pattern) |
| Pixel Size | 5.8 μm |
| ADC Bits | 12 |
| Weight | 133 lb |
| Sensor Dimensions | 11.13 |
| Back Focus Length | 17.5 mm |
| Autoguiding Port | ST4 |
| Shutter Type | Rolling shutter |
| Sensor Format | 1/1.2 inch |
| Resolution | 2.07″ |
| USB Interface | USB 3.0 |
| Read Noise | 1.5 |
| Dimensions | 78 diameter x 73.5 |
| Quantum Efficiency Peak | 85% |
| Operating Temperature Range | -5 °C |
| High Conversion Gain Mode | ✓ |
