ASI183MC
ZWO
From $499.00
2 stores
In stock

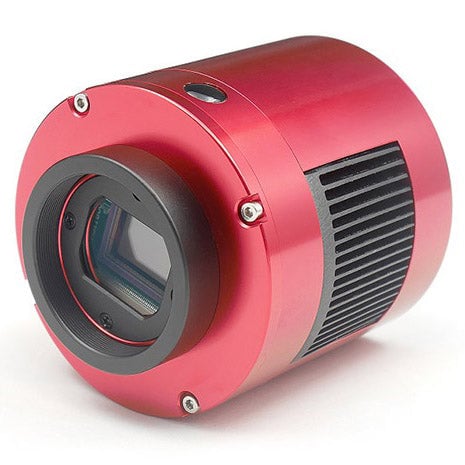

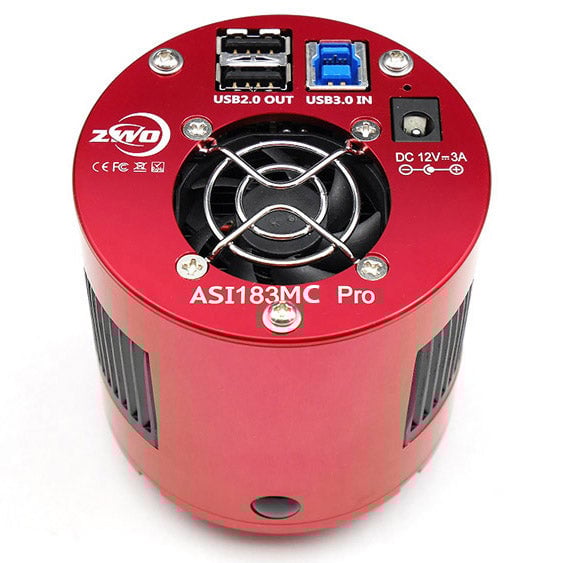

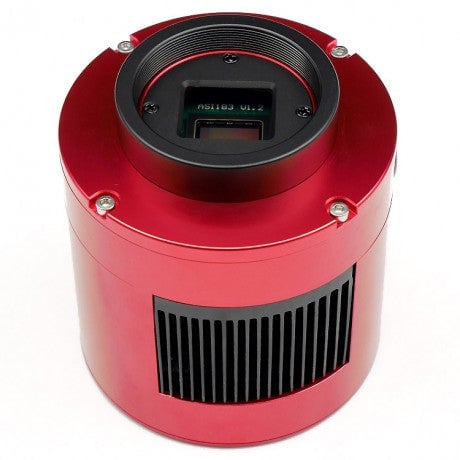

The ZWO ASI183MC is a cooled color astronomy camera with small pixels for resolving fine details in deep sky astrophotography. It uses a 20.1-megapixel Sony IMX183 back-illuminated CMOS sensor with 5496x3672 resolution and 2.4-micron pixel size, ideal for capturing high-resolution color images of deep-sky objects such as nebulae, supernova remnants, and galaxies, as well as lunar and solar images. Integrated TEC cooling reduces sensor temperature to 40C-45C below ambient to enable low-noise imaging of fainter deep-sky objects, with fast USB3.0 transfer at up to 19 fps at maximum resolution. The compact body features a 78mm diameter and weighs only 410 g (14.5 oz).
Specifications
| Sensor type | CMOS Chip (Sony IMX183) |
| Sensor | Sony IMX183CQJ J |
| Sensor read noise | 3 |
| Sensor diagonal | 15.86 |
| Sensor resolution | 5496 |
| Megapixels | 20.1 MP |
| Sensor pixel size | 2.4 |
| Sensor Format | 1 inch |
| Peak Quantum Efficiency | 84% |
| Read Noise | 1.6 |
| Full Well Capacity | 15000 |
| Dynamic Range | 12 |
| Maximum Frame Rate | 19 fps |
| ADC Bit Depth | 12 |
| Buffer Memory | 256 |
| Interface | USB 3.0 |
| Cooling System | 2-stage TEC |
| Cooling Capacity | 40 °C |
| Camera Diameter | 78 mm |
| Weight | 410 lb |
| Back-illuminated | ✓ |
