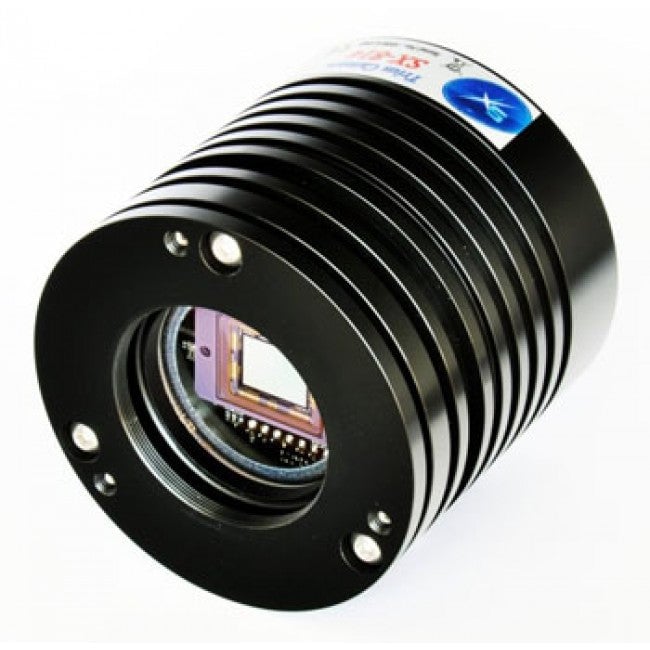

Trius PRO-814 - Monochrome CCD
Starlight Xpress
From ~$2,064.82
3 stores
The Trius PRO-814 is a higher resolution version of the very popular PRO-694 camera with 9.19 megapixels of resolution, featuring an ICX814AL Exview progressive scan CCD sensor ideal for both planetary and deep-sky imaging. The monochrome sensor allows 100% of pixels to be used for better resolution, with the ability to use filters and filter wheels to isolate specific colors and wavelengths for later stacking. The PRO series redesigns electronics for lower read-noise figures and faster downloads, achieving read-noise figures better than CMOS cameras with 16-bit data and significantly better dark-noise thanks to impressive cooling. The camera incorporates a complete powered USB 2.0 hub with three ports capable of delivering up to 200mA each to drive guiding cameras, filter wheels, and focusers.
First Light Optics
Starlight Xpress Trius PRO 814 Mono CCD Camera
Worldwide shipping
£1,516.00
~$2,064.82
Starizona
TRIUS PRO-814 Blue Edition Monochrome Camera System
Worldwide shipping
$2,359.00
Astroshop.eu
Camera Trius PRO-814 Mono
Worldwide shipping
€2,590.00
~$3,074.66
Specifications
| Well Depth | 15000 |
| Read Noise | 3 |
| Resolution | 9.19″ |
| Computer Interface | USB 2.0 |
| Back Focal Length | 17 mm |
| Pixel Size | 3.69 μm |
| Peak QE (Yellow Light) | 77% |
| Dimensions | 75 x 70 |
| Image Resolution | 3388 MP |
| Data Format | 16-bit |
| CCD Chamber | Argon-filled |
| Guider Port | RJ11 auto-guider output |
| Image Download Time (1x1 Binning) | 3.5 s |
| Sensor Size | 12.49 mm |
| Weight | 450 lb |
| Sensor type | Sony ICX814AL Exview CCD |
| USB Port Current Capacity | 200 mAh |
| Power Requirements | 12 V |
| Cooling Type | 3-stage Peltier thermoelectric cooler |
| USB Hub Ports | 3 x Mini-USB 2.0 |
| QE at H-alpha | 60% |
| Temperature Reduction | -45 °C |
