Trius PRO-694 - Monochrome CCD Camera
Starlight Xpress
From ~$1,905.46
3 stores

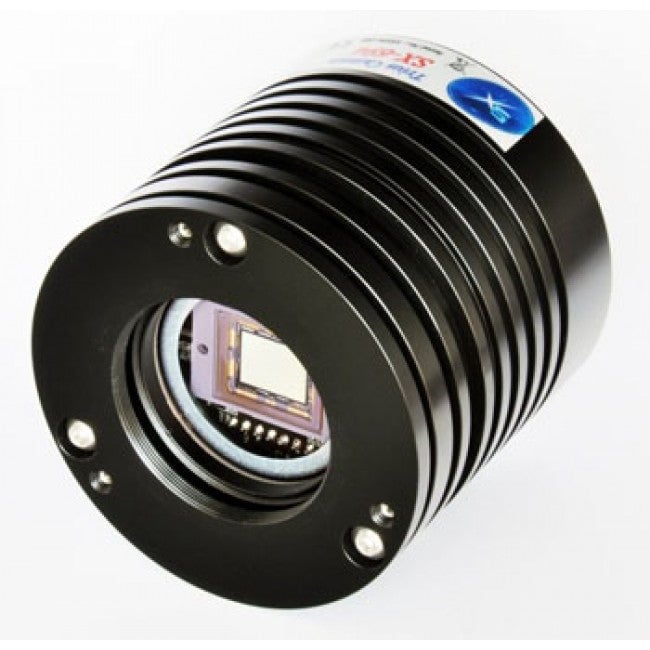

The Starlight Xpress Trius PRO-694 is a compact, cooled 6-megapixel monochrome CCD camera designed for deep-sky astrophotography. Featuring a Sony ICX694AL Exview CCD sensor with exceptional 77% quantum efficiency and low thermal noise, the camera delivers clean images with minimal calibration requirements thanks to its two-stage thermoelectric cooling system that reaches -40°C below ambient. The integrated three-port powered USB hub allows control of guide cameras and filter wheels through a single cable connection, while fast 2.5-second downloads and ultra-low readout noise of 3.5 electrons RMS make it ideal for narrowband imaging and extended observing sessions.
First Light Optics
Starlight Xpress Trius PRO 694 Mono CCD Camera
Worldwide shipping
£1,399.00
~$1,905.46
Starizona
TRIUS PRO-694 Blue Edition CCD Monochrome Camera
Worldwide shipping
$2,177.00
Astroshop.eu
Camera Trius PRO-694 Mono
Worldwide shipping
€2,390.00
~$2,837.23
Specifications
| Pixel Size | 4.54 μm |
| Camera Diameter | 75 mm |
| Sensor type | Sony ICX694AL Exview CCD |
| Image Download Time | 2.5 s |
| Weight | 450 lb |
| Power Supply Options | 115VAC/240VAC or 12VDC |
| Pixel Array | 2750 x 2200 |
| Back Focal Length | 16 mm |
| Full Well Capacity | 17000 |
| Image Area Width | 12.49 mm |
| QE at H-alpha | 65% |
| Camera Length | 70 mm |
| Readout Noise | 3.5 |
| Resolution | 6.1″ |
| Image Area Height | 9.99 mm |
| Cooling Delta T | -40 °C |
| Diagonal Array | 15.98 mm |
| Dark Current | 0.002 |
| USB Interface | USB 2.0 |
| Peak Quantum Efficiency | 77% |
| Data Format | 16 bit |
| Power Consumption | 1.5 W |
| T2 Thread | 42 mm |
| Anti-blooming Overload Margin | 800 |
