5III585C Planetary Camera and Guider
QHY
From ~$363.65
4 stores
The QHY5III585C is an enhanced generation of QHY5III V2 series planetary guide camera with improved dynamic range performance and high sensitivity in the near infrared. It features a 1/1.2-inch large sensor with Sony IMX585 BSI Starvis II technology and zero amp glow, delivering approximately 1.7 times higher near-infrared sensitivity compared to the previous IMX485. Equipped with a 512MB DDR3 image buffer, the camera effectively reduces computer transmission pressure during the rapid data capture required for planetary photography. It supports frame rates of 41.5 FPS at 8-bit or 23.5 FPS at 16-bit full resolution, with USB3.2 Gen1 Type-C connectivity and ST-4 compatible guiding interface.
Astronomy Plus
QHY5III585C Color USB 3.0 Camera (QHY5III585C)
Worldwide shipping
CA$495.00
~$363.65
High Point Scientific
QHY5III585C v2 Color CMOS Planetary & Guide Camera
Ships to US only
$399.00
OPT
5III585C Planetary Camera and Guider
Worldwide shipping
$399.00
Astroshop.eu
Camera 5III 585C Color
Worldwide shipping
€439.00
~$521.15
Specifications
| Back Focal Length with Adapter | 17 mm |
| Pixel Size | 2.9 μm |
| Dynamic Range | 88 |
| USB Interface | USB 3.2 Gen1 Type-C |
| Effective Pixel Array | 3856 x 2180 |
| Frame Rate 16-bit | 23.5 fps |
| Memory Buffer | 512 |
| Back Focal Length without Adapter | 8 mm |
| Included Filters | IR-Cut filter and IR 850nm filter |
| Sensor | Sony IMX585 BSI |
| Full Well Capacity | 32 |
| Quantum Efficiency | 90% |
| Telescope Interface | 1.25 inch with CS/C-mount compatibility |
| Color Filter Array | Bayer |

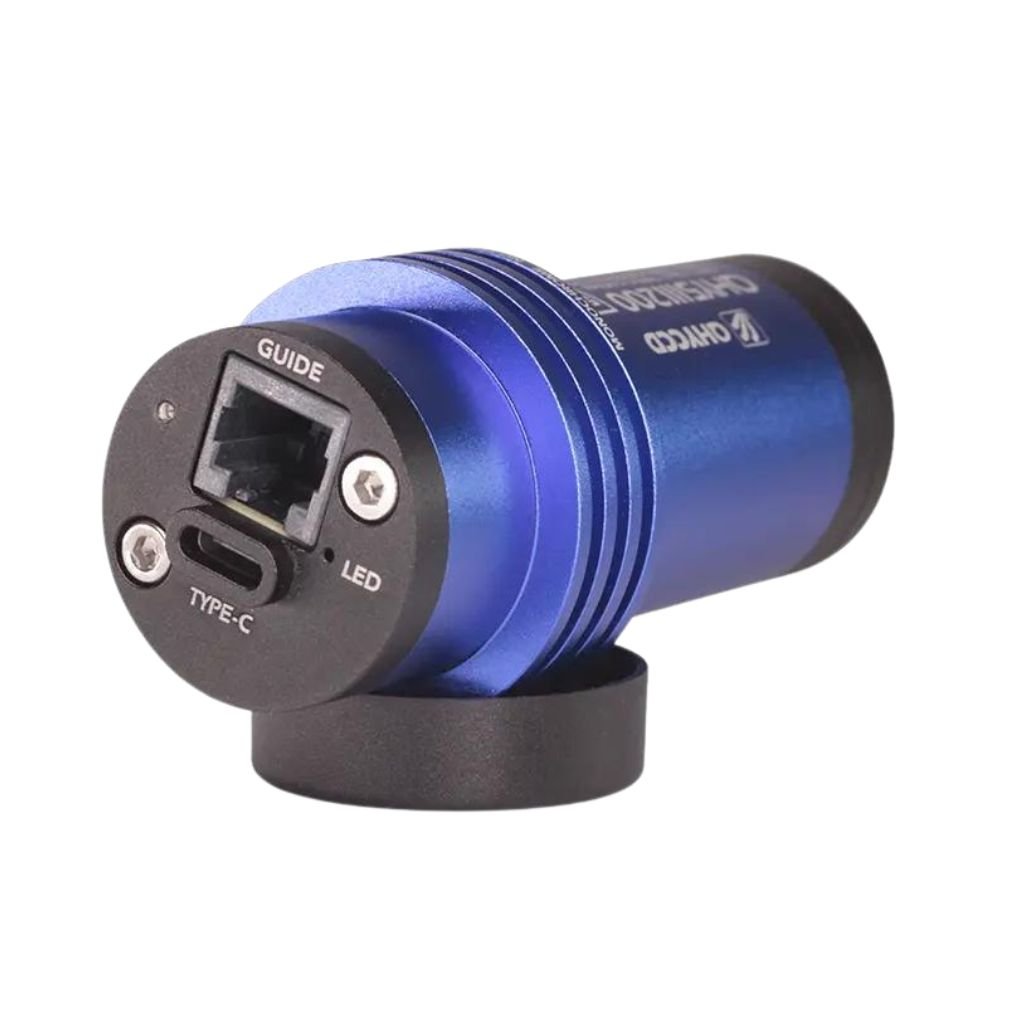

| Guiding Interface | ST-4 Compatible |
| Weight | 90 lb |
| Resolution | 8.4″ |
| Frame Rate 8-bit | 41.5 fps |
| Shutter Type | Electronic Rolling Shutter |
| Sensor Size | 1 mm |
| Read Noise | 0.8-5.5 |
| Exposure Time Range | 11 microseconds to 900 seconds |
