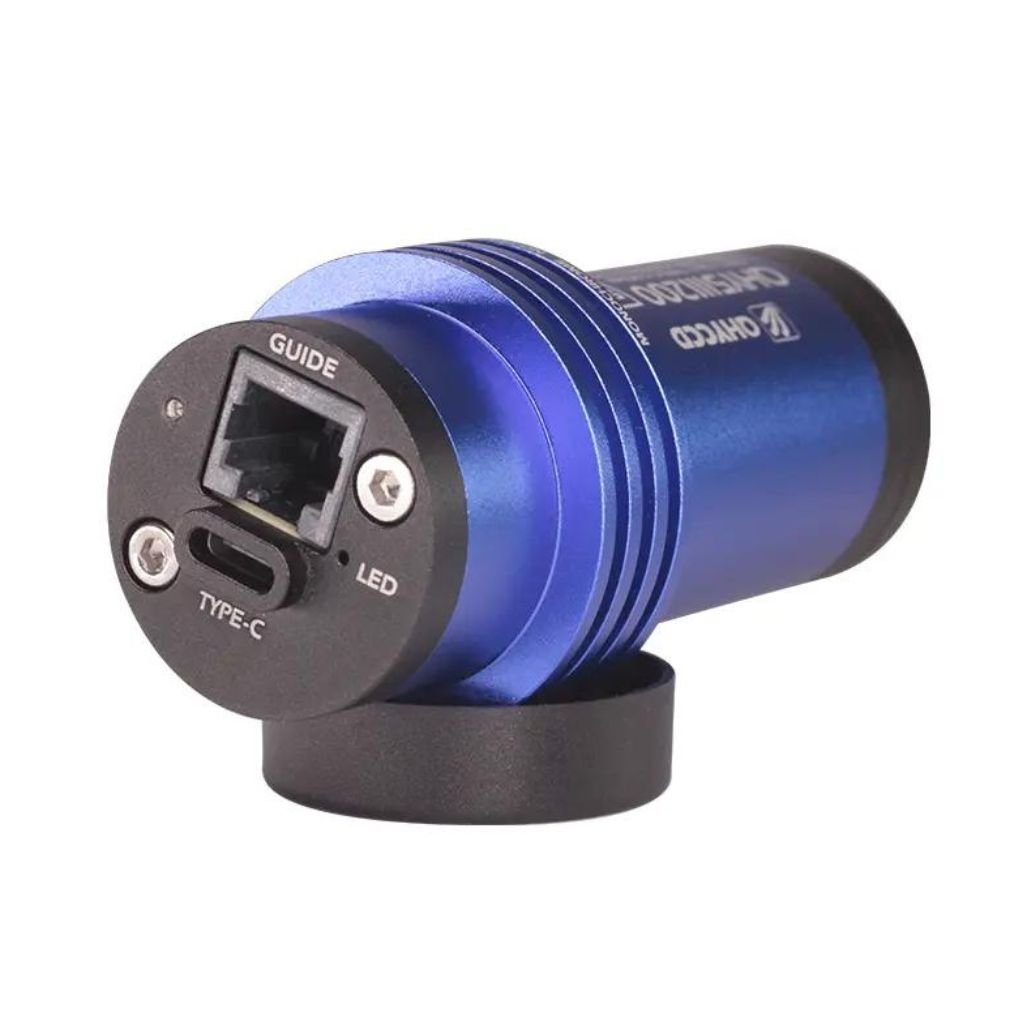

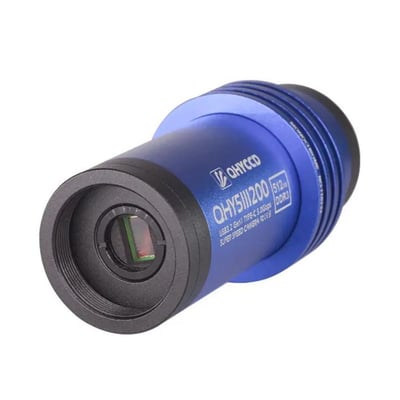

5III200M CMOS Planetary Camera and Guider
QHY
From $309.00
2 stores
In stock
The QHY5III200M is a new generation monochrome planetary guide camera with near-infrared high sensitivity and enhanced near-infrared enhancement characteristics. It features extended near infrared sensitivity similar to the QHY 5III462 color camera, with better compatibility, more memory, and a USB3.2 Gen1 Type-C interface. This dual-purpose monochrome camera delivers high performance for planetary imaging and acts as a sensitive and reliable autoguiding camera. With quantum efficiency between 50% and 20% in the spectral range of 700nm to 1000nm (including the methane absorption line at 890nm), it provides excellent sensitivity for imaging planets like Jupiter and Saturn.
Specifications
| Effective Pixel Area | 1920 x 1080 |
| Bit Depth | 12 |
| Full Well Capacity | 8000 |
| Maximum Frame Rate (Full Resolution, 8-bit) | 96.5 fps |
| Near-Infrared Sensitivity | 700 |
| Resolution | 2″ |
| Maximum Frame Rate (Full Resolution, 16-bit) | 60 fps |
| Telescope Interface | 1.25-inch with CS/C-port compatibility |
| Included Filters | IR AR glass, IR850 filter |
| Readout Noise | 0.75 |
| Exposure Time Range | 15 microseconds - 900 seconds |
| Back Focal Length | 8 mm |
| CMOS Sensor Model | Sony SC2210 |
| Guiding Port | Universal ST-4 Compatible |
| Interface | USB 3.2 Gen1 Type-C |
| Pixel Size | 4 μm |
| Image Buffer Memory | 512 |
| Shutter Type | Electric Rolling Shutter |
| Weight | 90 lb |
