5III568C
QHY
From ~$416.54
3 stores
In stock

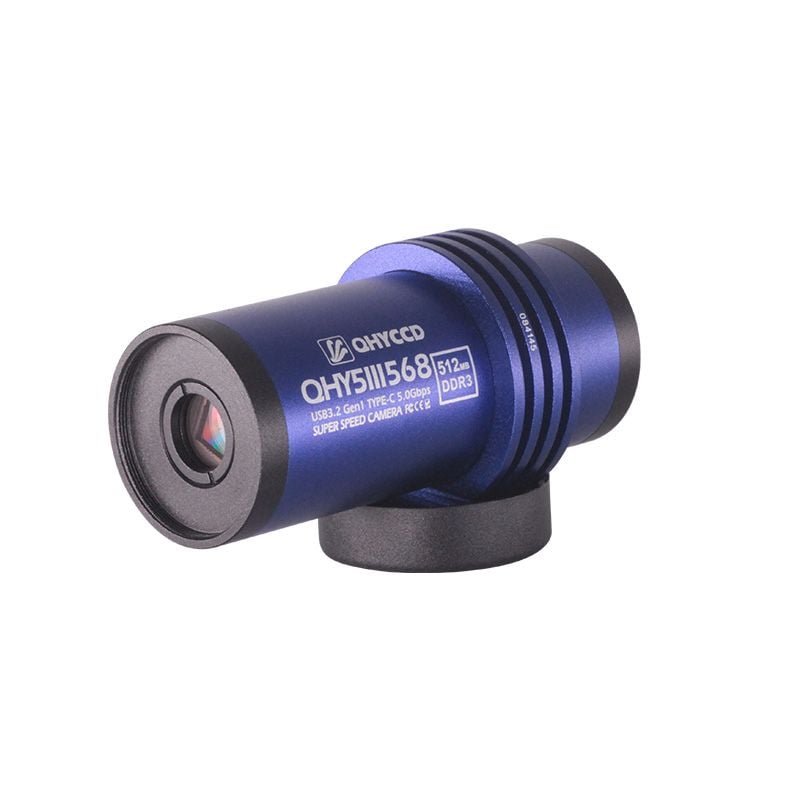

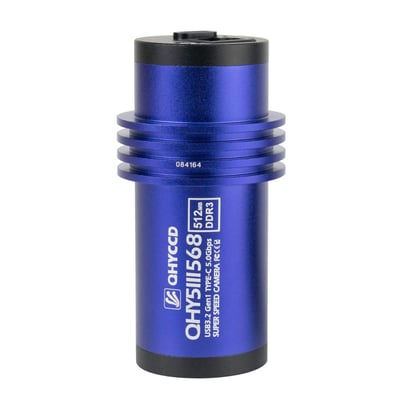

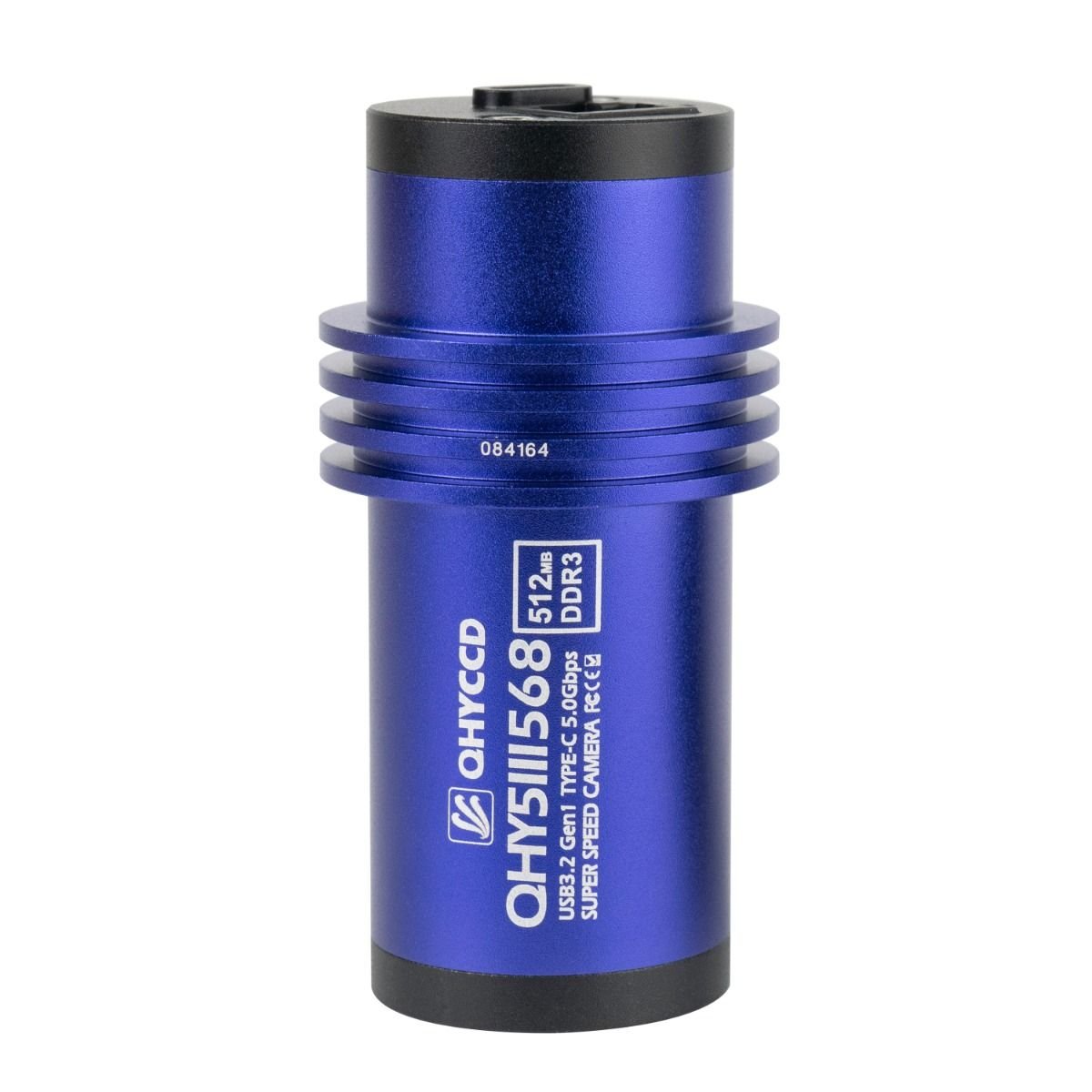

The QHY5III568C is a back-illuminated planetary and guiding camera built on the latest Series 5III v2 framework with a global shutter and true hardware 2x2 binning. It uses a 5.1-megapixel Sony IMX568 Pregius S CMOS sensor with 2472 x 2064 pixels at 2.74um, delivering 304 frames per second with 1080p resolution for capturing planetary details and precision autoguiding. Unlike most CMOS cameras, the QHY5III568C supports charge-domain binning (FD Binning), which is true hardware pixel binning similar to CCD cameras, providing superior signal-to-noise ratio without introducing additional noise during high-speed planetary imaging and lunar observations.
Specifications
| Sensor type | Sony IMX568 Pregius S Back-Illuminated CMOS |
| Frame Rate (Full Resolution) | 64.9 fps |
| Shutter Type | Electronic Global Shutter |
| A/D Conversion | 12-bit |
| Back Focal Length (without adapter) | 8 mm |
| Binning | ✓ |
| Resolution | 5.1″ |
| Weight | 80 lb |
| Guide Port | ST-4 Compatible |
| Pixel Array | 2472 x 2064 |
| Sensor Format | 1/1.8 inch |
| Pixel Size | 2.74 μm |
| Frame Rate (1080p ROI) | 304 fps |
| Image Buffer | 512 |
| Interface | USB 3.2 Gen 1 Type-C |
| Color Filter Array | RGGB |
| Read Noise (Full Resolution) | 1.5 |
| Back Focal Length (with adapter) | 17 mm |
| Hardware Binning Type | Charge-Domain (FD Binning) |
| Sensor Dimensions | 6.7 |
| Maximum Frame Rate (ROI) | 500 fps |
| Front Window Filter | AR Coated with IR-Cut Filter |
