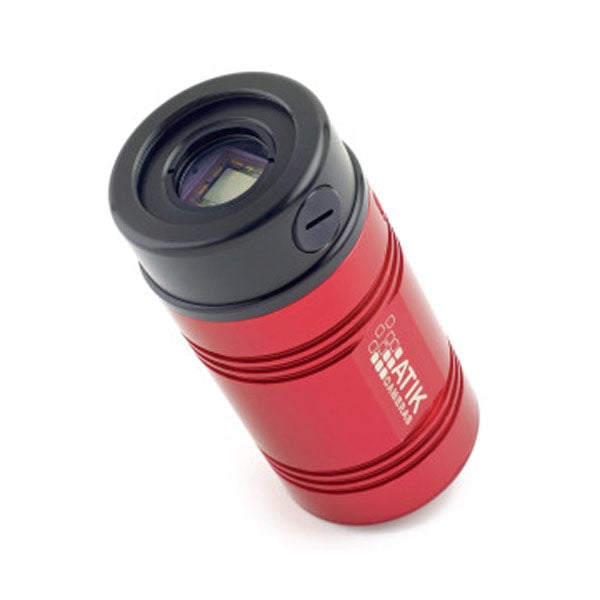

Atik 490EX Monochrome CCD Camera - ATK0110

ATIK

From $2,891.00

2 stores

In stock

The Atik 490EX is the highest resolution Atik camera to date, featuring the latest generation Sony EXview HAD CCD II technology with outstanding Quantum Efficiency, very low noise and excellent thermal management. With 9.13 megapixels, it is designed to effectively work with fast focal ratio lenses such as Hyperstar and Fastar, and its lightweight and slim profile ensures it does not strain the telescope's corrector plate. Its excellent sensitivity and the possibility of binning while maintaining high pixel counts makes it one of the best cameras for deep-sky astrophotography, with unrivaled flexibility. The camera features a regulated cooling system that offers stable image calibration and generates very low noise, with a straightforward 12V power requirement and low power consumption suitable for both observatory use and amateur applications.

Specifications

Dimensions Diameter 60 mm
Resolution 9.13″
Sensor diagonal 16
Dimensions Length 122 in
Pixel Array 3379 x 2703
Read Noise 5
Filter Support 1.25 inch filters down to f/2
Pixel Size 3.69 μm
Full Well Capacity 12500
Cooling System Single-stage Peltier thermoelectric with internal fan
Sensor type Sony EXview HAD CCD II (16-bit ICX814)
Back Focus Distance 13 mm
Power Supply 12 V
Cooling Capability 25 °C
Sensor Size 12.5 mm
Weight 380 lb
Connection USB 2.0
Cooling Type Set-point cooling
