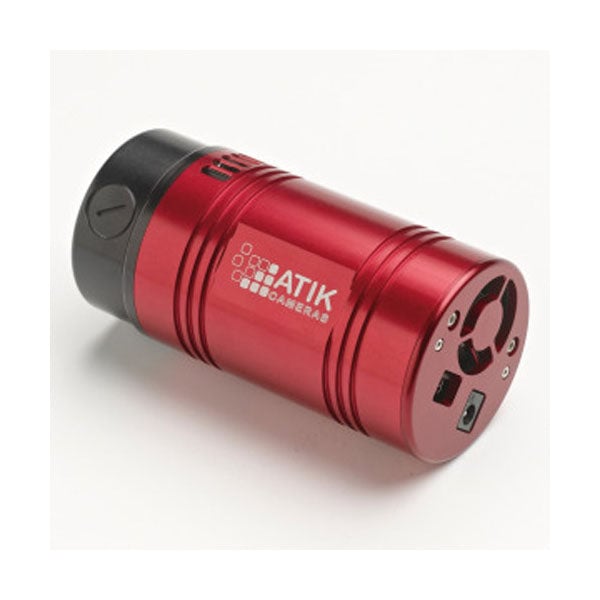

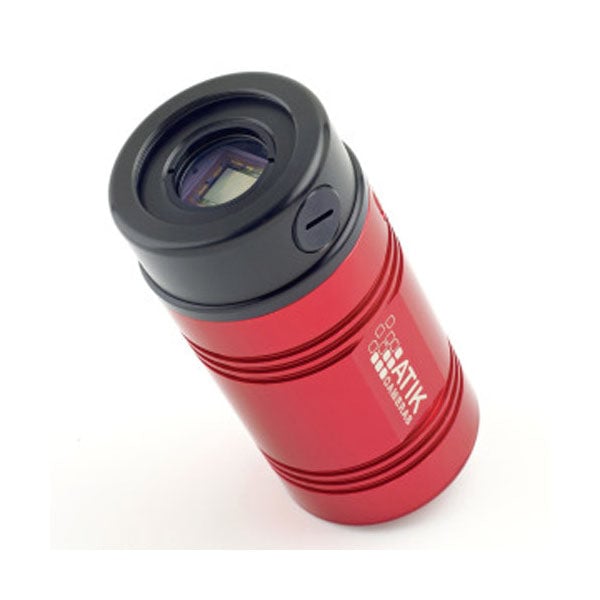

Atik 460EX Monochrome CCD Camera - ATK0100
ATIK
From $2,628.00
2 stores
In stock

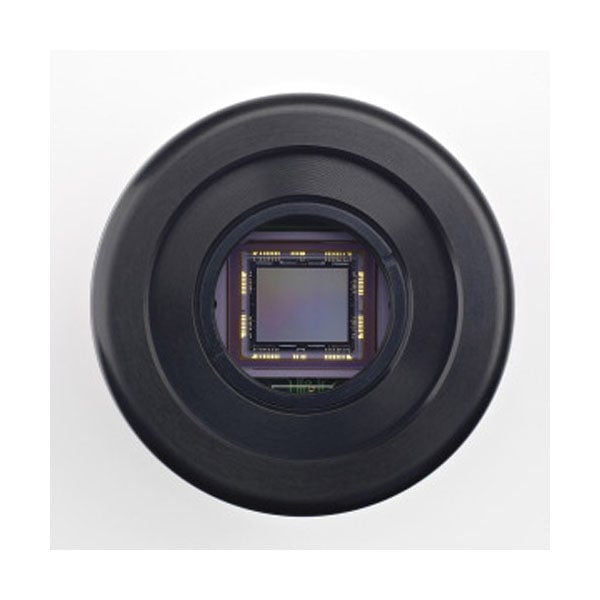

The ATIK 460EX is a monochrome CCD camera featuring a Sony ICX694 EXview HAD CCD II sensor, renowned for its exceptional balance of sensitivity and resolution for deep-sky astrophotography. With 2750x2200 pixel resolution and outstanding quantum efficiency, this camera excels in both narrowband and LRGB imaging techniques, making it ideal for amateur and professional astronomers. The compact design includes set-point thermoelectric cooling, 12V DC operation for easy field use, and compatibility with 1.25-inch filters down to f/2, while the included Capture software and Dawn image processing suite streamline the imaging workflow.
Specifications
| Sensor type | CCD - Sony ICX694 |
| Readout Noise | 5 |
| Power Consumption | 1 W |
| Maximum Temperature Differential | -25 °C |
| Cooling Type | Thermoelectric set-point |
| ADC | 16 bit |
| Power Supply | 12 V |
| Mount Thread | M42x0.75 |
| Vertical Resolution | 2200 |
| Pixel Size | 4.54 μm |
| Dark Current | 0.0004 |

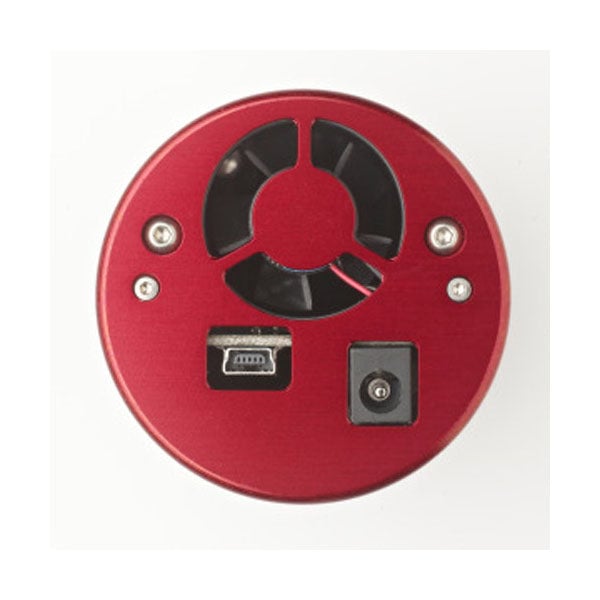

| Interface | Mini-USB 2.0 High Speed |
| Back Focus Distance | 13 mm |
| Maximum Exposure | Unlimited |
| Horizontal Resolution | 2750 |
| Full Well Capacity | 18000 |
| Weight | 400 lb |
| Filter Compatibility | 1.25 inch filters down to f/2 |
| Minimum Exposure | 0.001 s |
