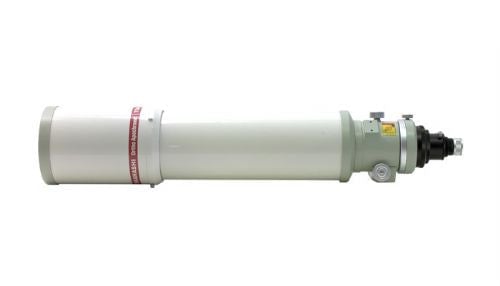

TOA 130NFB Double ED Triplet Refractor Telescope

Takahashi

From $6,760.00

5 stores

In stock

The Takahashi TOA-130NFB is the first of Takahashi's newest optical design: the Ortho-Apochromat, a 21st century innovation employing a newly designed triplet using special elements to produce the highest order of color correction. The Triplet Ortho-Apochromat concept makes it possible to combine sharpness and extraordinary contrast, with this unique optical formula based on a highly air-spaced ED triplet having the advantage of completely eliminating spherical aberration while achieving the best chromatic correction in the Takahashi telescopes range. The TOA excels in both high planetary resolution and deep sky imaging, fully exploiting the capabilities of cameras with the largest sensors. Equipped with an oversized 102 mm (4") rack-and-pinion focuser with 1/7 microfocuser and a Camera Angle Adjuster ring for photographic framing, this focuser supports the heaviest photo setups including large sensor CCD cameras, without mechanical constraints.

Specifications

Focuser Size 102 in
Angular Resolution 0.89″
Back Focus Distance 274.5 mm
Optical Tube Length (Retracted Dew Shield) 1022 mm
Focal ratio f/7.7
Fully Illuminated Field Diameter 70 mm
Coatings Hard multicoatings
Dew Shield Diameter 180 mm
Usable Image Circle Diameter 92 mm
Aperture 130 mm
Optical Tube Diameter 156 mm
Focal length 1000 mm
Optical Tube Length 1155 mm
Glass Elements 2 x S-FPL53 ED
Weight 12.3 lb
Optical design ED Triplet Ortho-Apochromat
Takahashi TOA 130NFB Double ED Triplet Refractor Telescope
