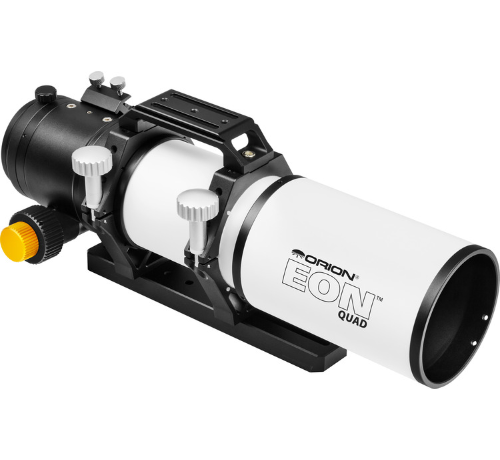

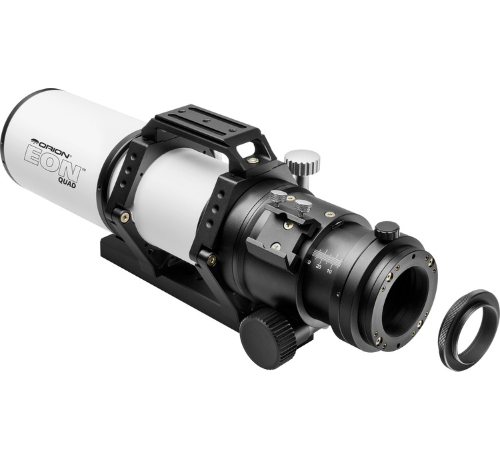

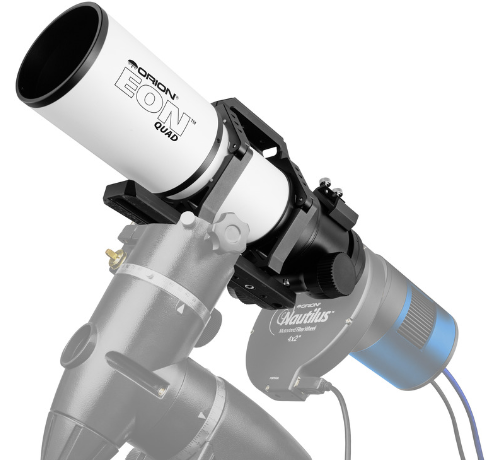

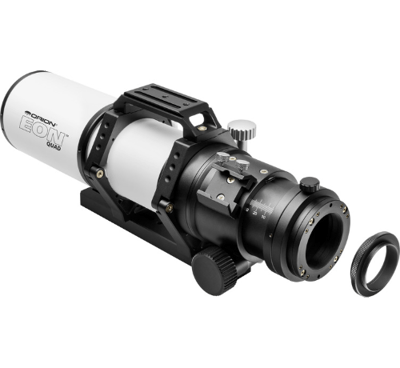

EON 70mm ED Quadruplet Astrograph Refractor Telescope
Orion
From $1,499.95
2 stores
In stock
The Orion EON 70mm ED Quadruplet Astrograph is an exceptional wide-field ED astrograph featuring a 350mm f/5 lens system with four-element optics utilizing two Hoya FCD-100 ED lenses for ultimate color correction and contrast. With a 43mm image circle providing almost 6-degrees of sky on a full-format camera, this refractor delivers flat-field imaging for cameras up to 35mm full-format without requiring a separate field flattener. The 360° rotatable focuser enables precise photographic composition, making this astrograph ideal for wide-field astrophotography of the Milky Way, nebulae, and star clusters.
Specifications
| Aperture | 70 mm |
| Optical design | 4-element ED Quadruplet Refractor |
| Image Circle | 43 mm |
| Focal length | 350 mm |
| Focuser Reduction | 10:1 |
| Optical Tube Weight | 6.6 kg |
| Focus Travel Range | 29.5 mm |
| Focuser Type | 3 inch Rack-and-Pinion |
| Glass Type | Hoya FCD-100 ED (extra-low dispersion) |
| Optical Tube Length | 12.75 mm |
| Back Focus Distance | 69.5 mm |
| Mount Compatibility | Vixen-style dovetail |
| Focal ratio | f/5 |
| Weight with Rings and Dovetail | 8.5 lb |
| Included Accessories | Hard case, dew shield dust cover, rear port cap, 54mm-48mm step down ring, 48mm-42mm step down ring, finder dovetail shoe |
