Paramount MX Series 6
Software Bisque
From $11,795.00
2 stores

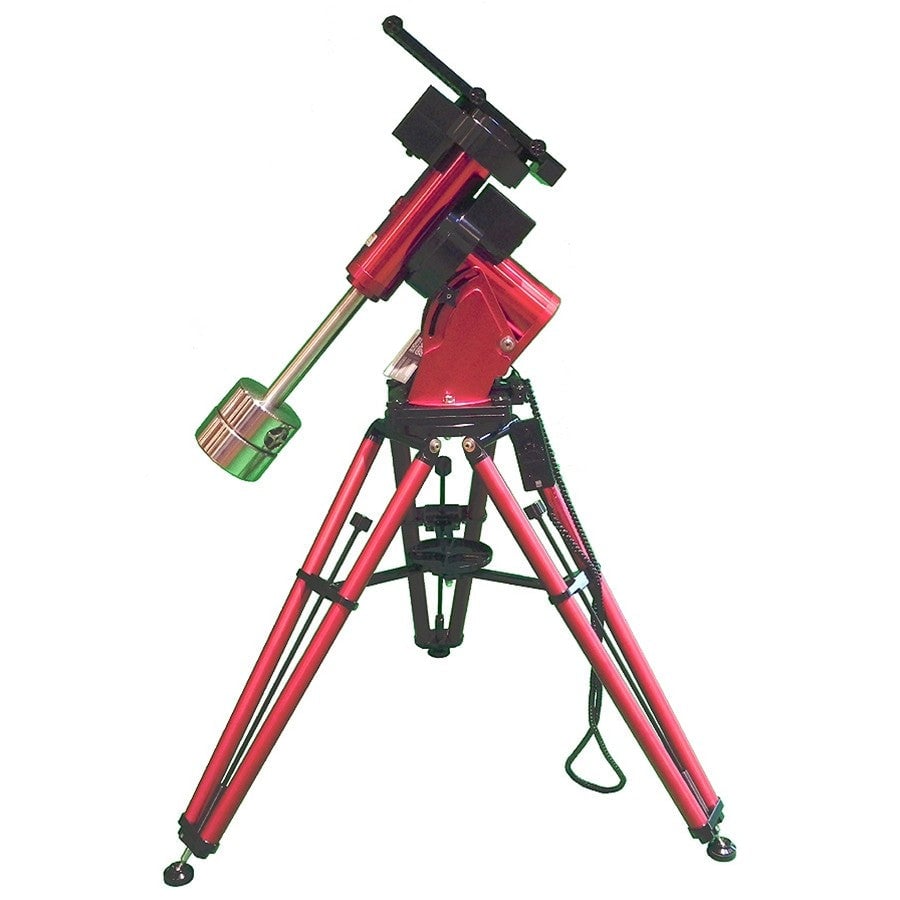

The Paramount MX Series 6 is a premium, transportable German equatorial mount representing the latest in gear-driven GEM performance from Software Bisque. This mid-size observatory-class mount supports up to 14-inch telescopes with accessories and can carry 125 lb of instruments, with a maximum total payload capacity of 250 lb including counterweights. The new Series 6 features the advanced MKS 6000 telescope control system offering USB-C, Ethernet, and Wi-Fi connectivity, optional 26-bit Renishaw on-axis absolute encoders, and delivers exceptional pointing accuracy below 30 arcseconds RMS with unguided exposures routinely reaching 5-20 minutes through precision mechanics and integrated TPoint modeling software.
Specifications
| Optional Encoders | 26-bit Renishaw on-axis absolute ring encoders |
| Material | 6061 Aluminum alloy |
| Mount type | German Equatorial Mount (GEM) |
| Manufacture Location | Golden, Colorado, USA |
| Instrument Capacity | 125 lb |
| Communication Options | USB-C, Ethernet, Wi-Fi |
| Included Software | TheSky Professional, TPoint, Cameras+, Domes, Weather modules, Multi-OS+ |
| Maximum Payload Capacity | 250 lb |
| Right Ascension Gear | 7.5 inch, 375 tooth |
| Motor Monitoring Rate | 3333 Hz |
| Control System | MKS 6000 dual-axis DC servomotor |
| Power Output (XT60 connectors) | 12 A |
| Telescope Support | Up to 14 inch |
| Polar Axis Latitude Range | 0° |
| Encoder Operating Temperature | -40 °C |
| Counterweights Included | 2 x 20 lb |
| Mount Weight (without counterweights) | 24 lb |
| Periodic Error (uncorrected) | 7″ |
| Power Supply Voltage | 48 V |
| Pointing Accuracy | 30′ |
| Counterweight Capacity | 40 lb |
| Declination Gear | 7.5 inch, 375 tooth |
| Finish | Red powder coating and black anodized aluminum |
| Periodic Error (after correction) | 1″ |
| Encoder Precision | 0.02″ |
