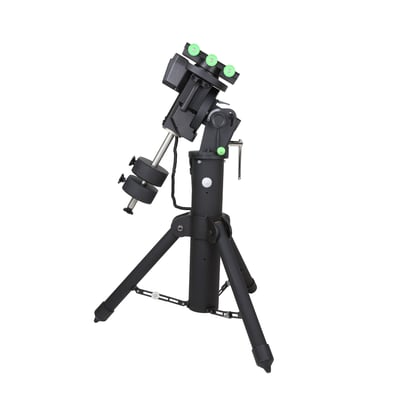

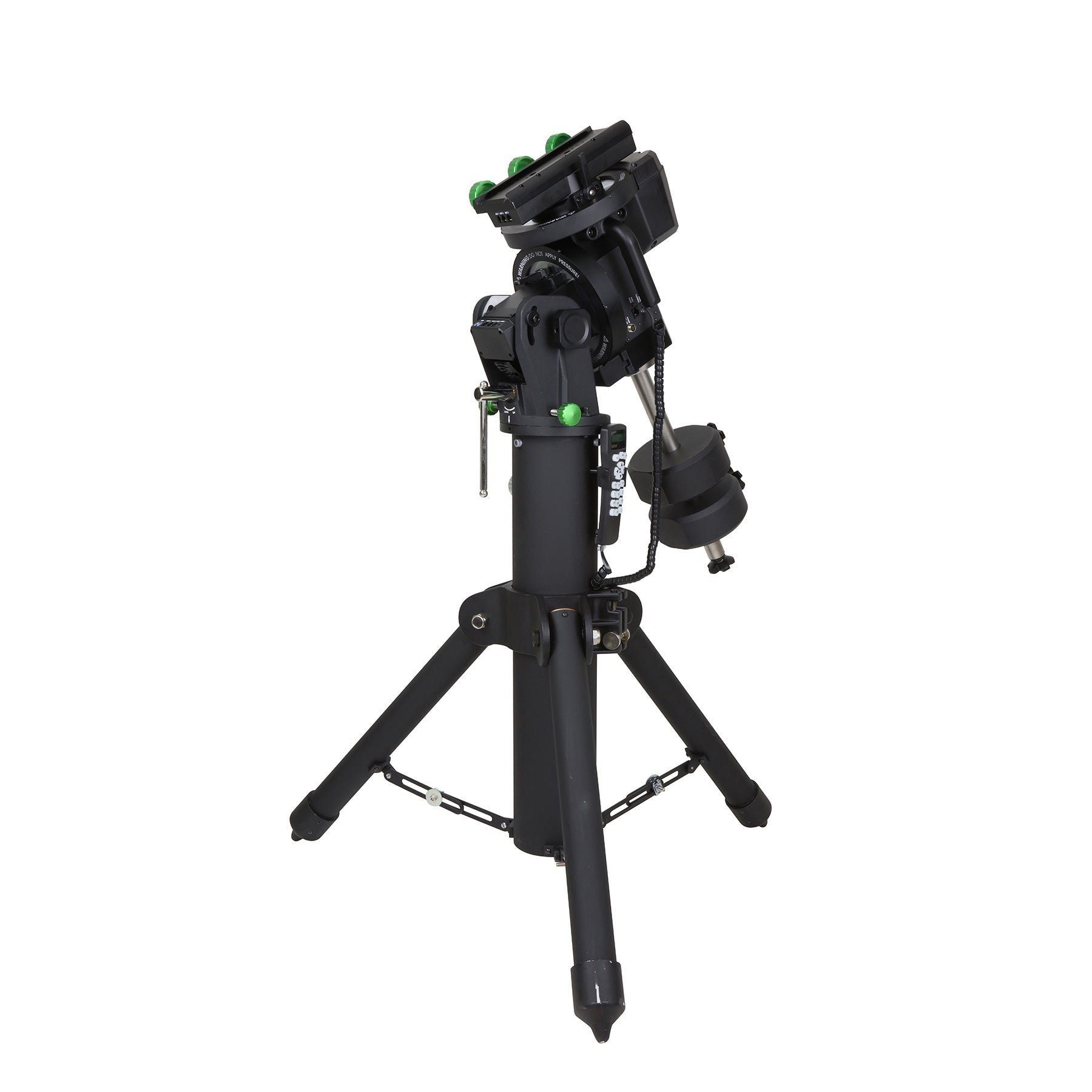

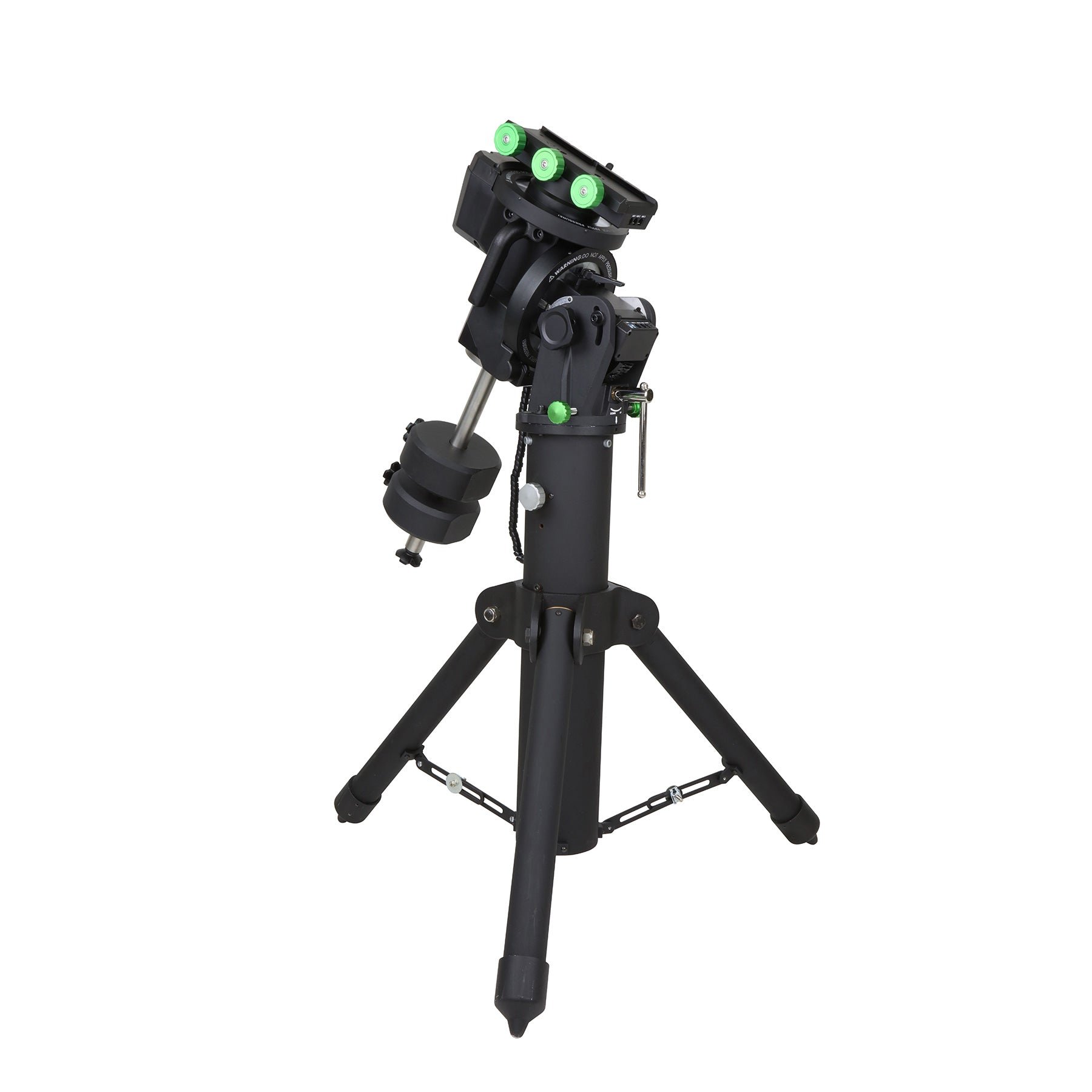

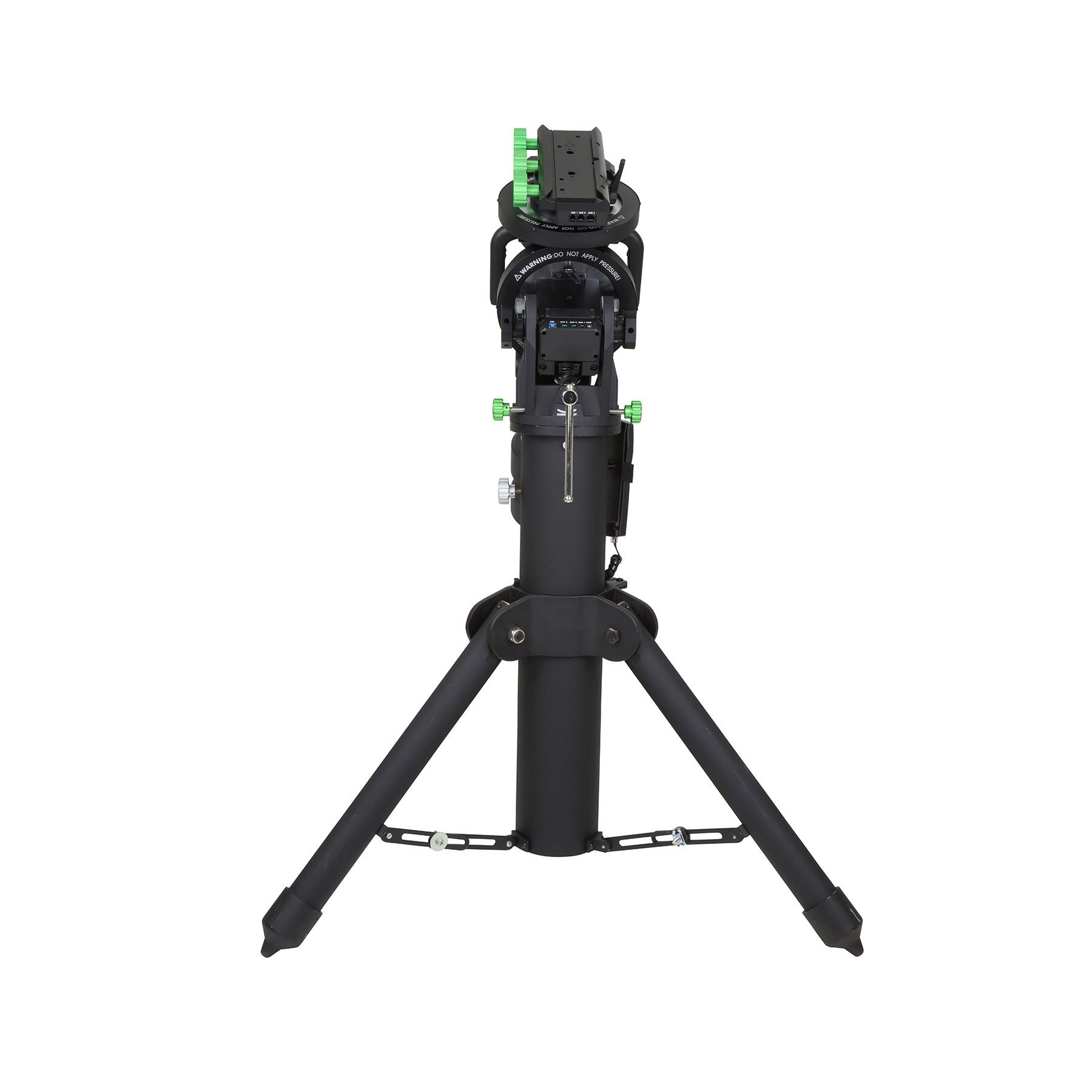

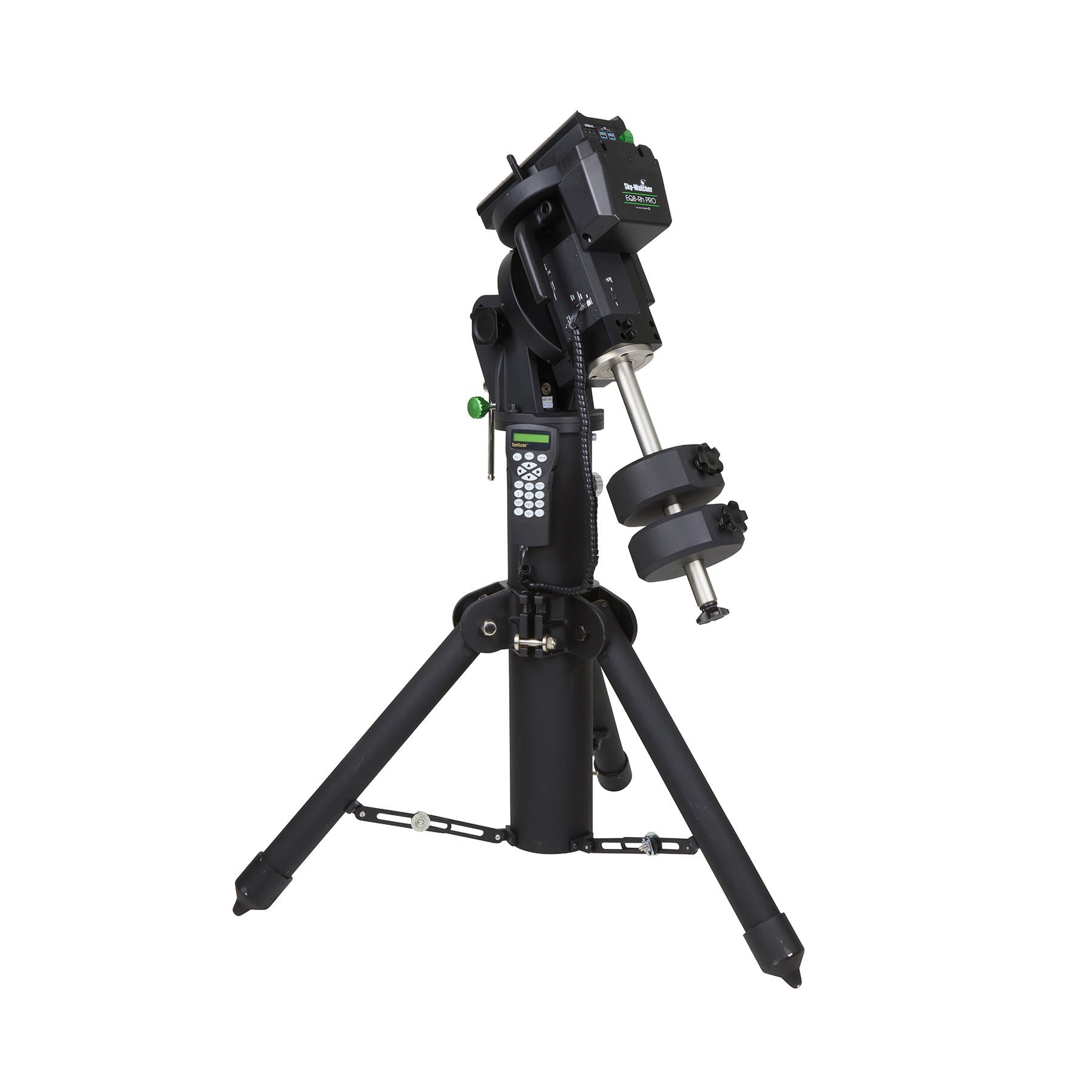

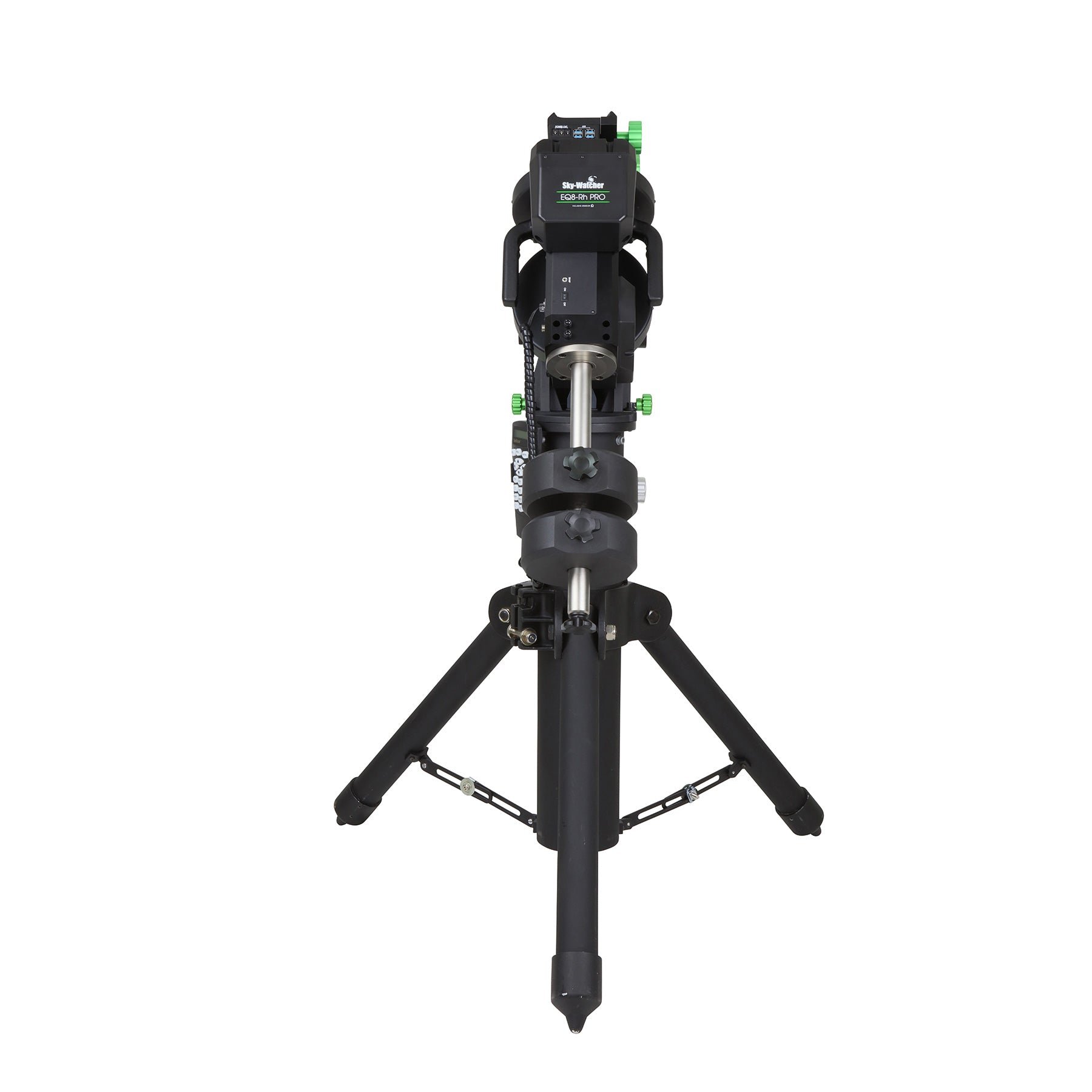

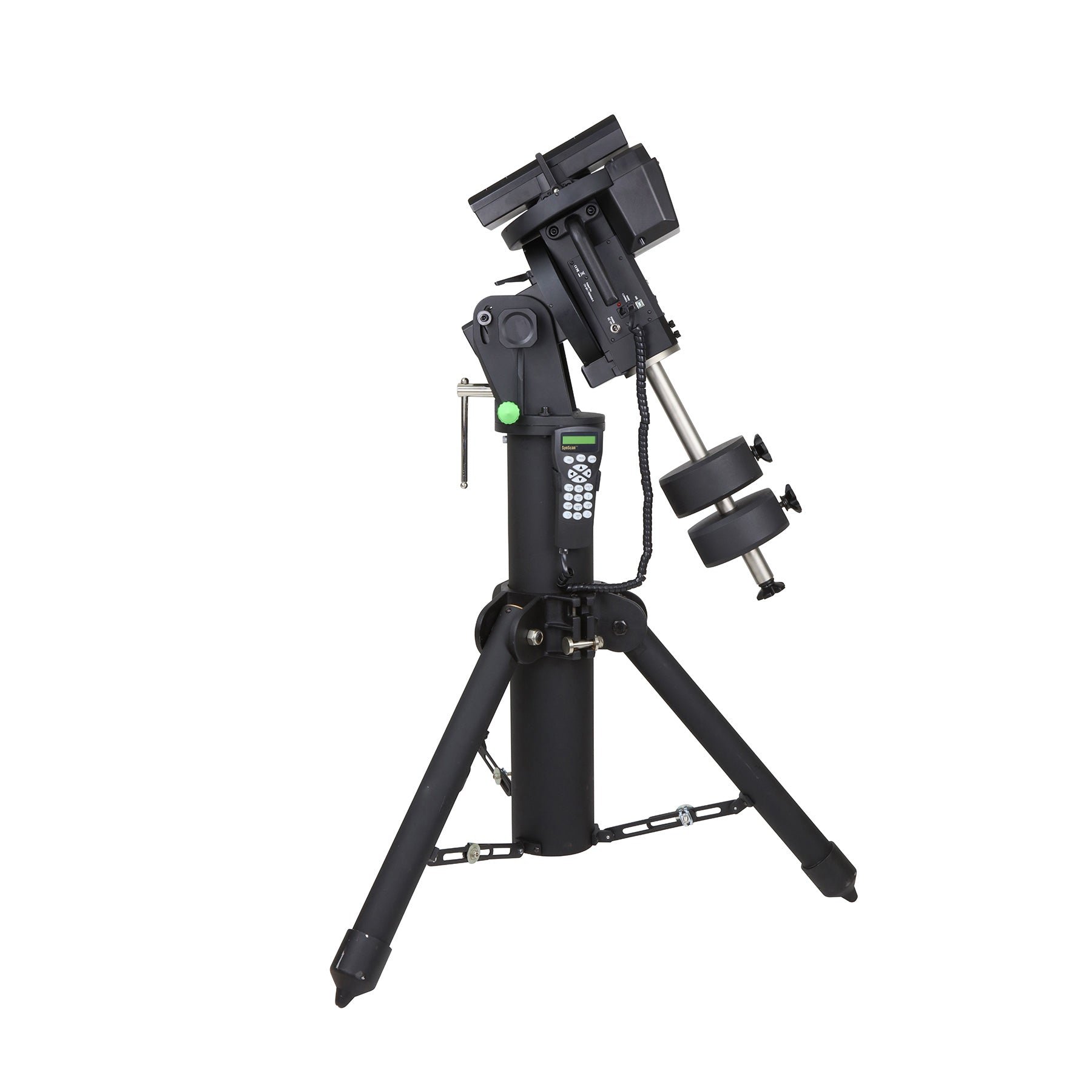

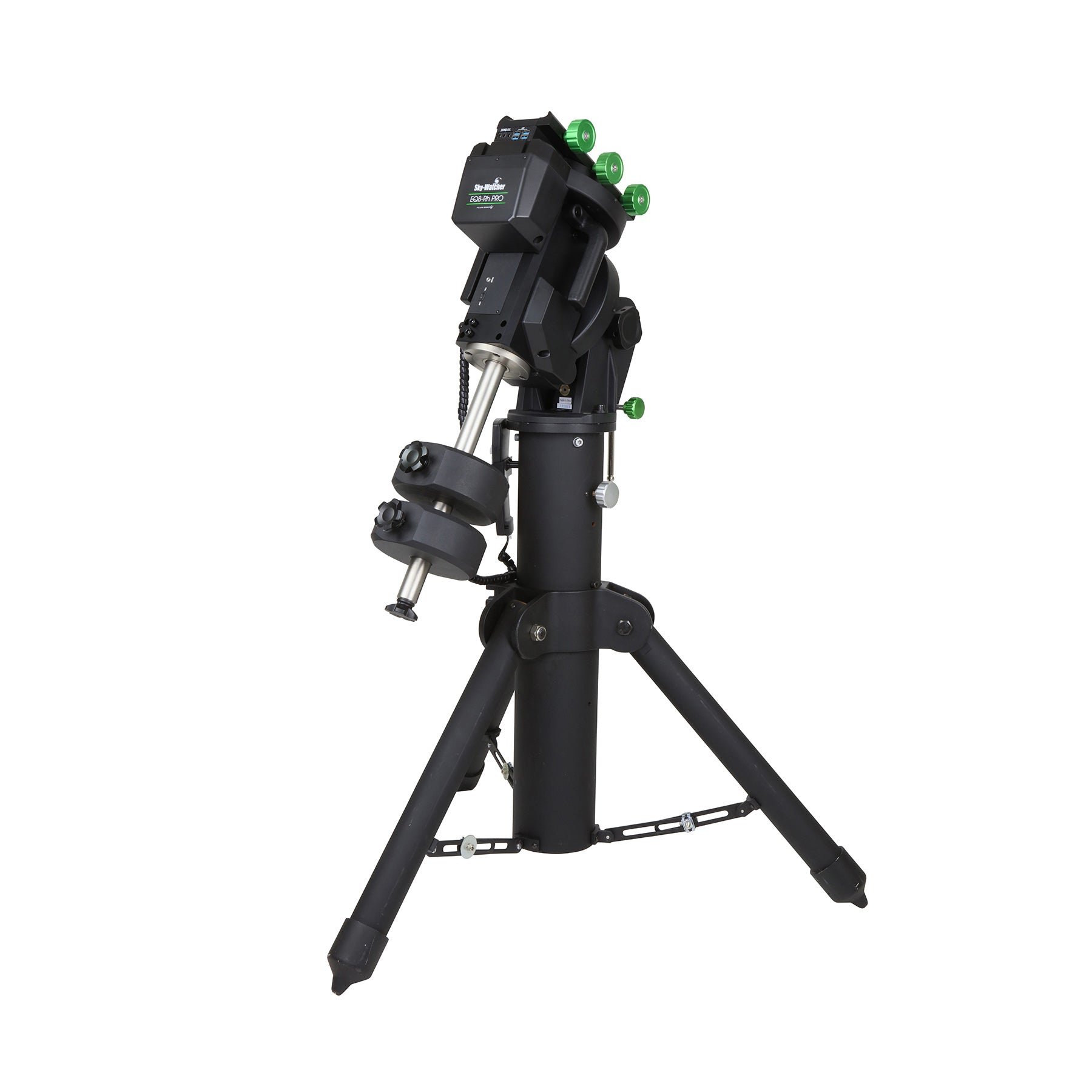

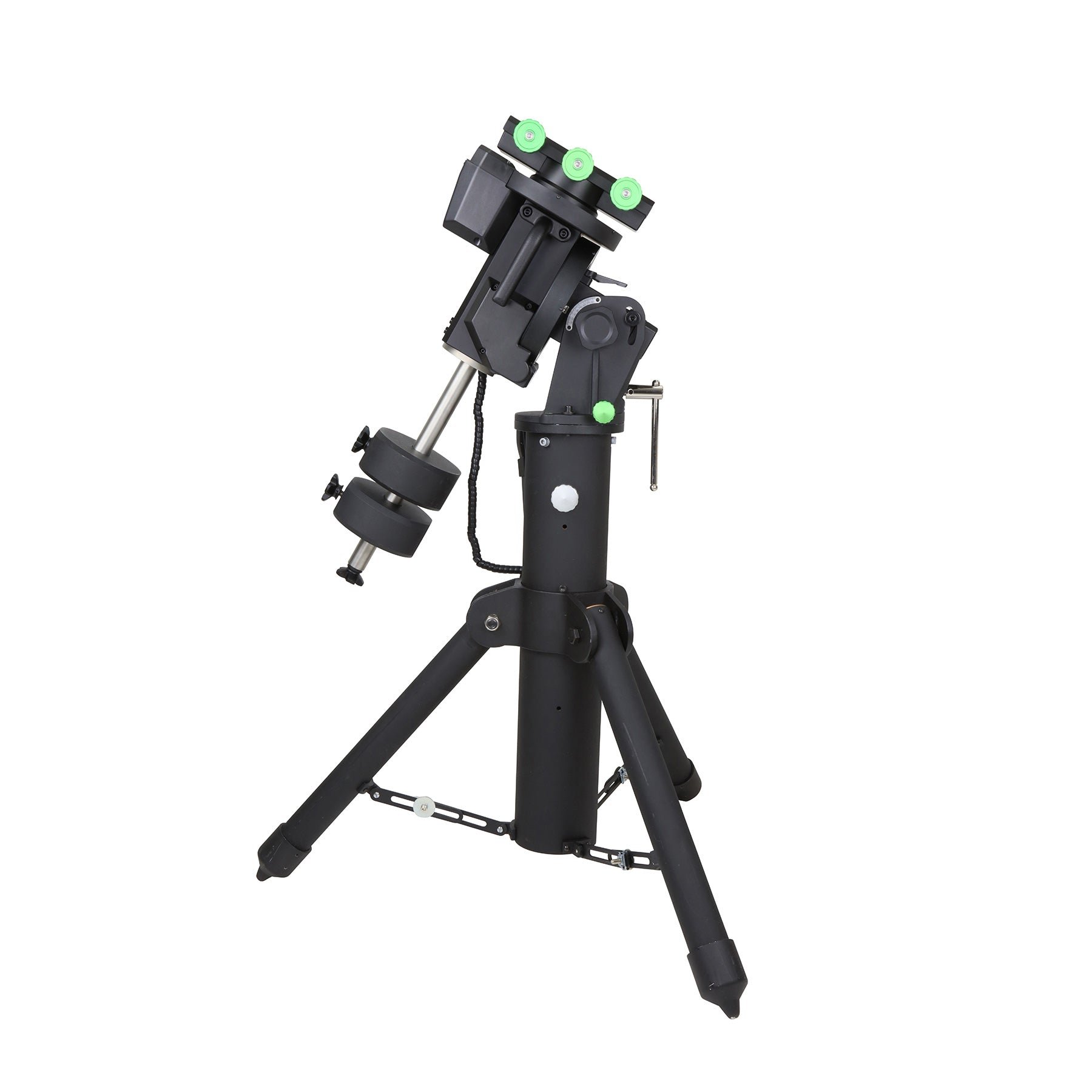

EQ8-Rh Mount with Pier Tripod

Sky-Watcher

From ~$9,241.27

8 stores

In stock

The EQ8-Rh is an observatory-class equatorial mount equipped with a Renishaw incremental 11.8 million tick encoder on the RA axis, virtually eliminating periodic error and delivering precise guiding for capturing elusive deep-sky objects like wispy nebulae and faint galaxies. With all-metal precision construction, this mount delivers a staggering 110 pounds of payload capacity, includes an adjustable portable pier tripod, D-style dovetail saddle, two 22-pound counterweights, DC power cord, and built-in USB PC control. Designed as an observatory-class mount for PC Direct or even completely remote control, it can still be run by the tried-and-true SynScan V5 hand controller with a 42,000+ object database.

Specifications

Drive type Belt
Computerized
Payload Capacity 50 lb
Mount Head Weight 25.8 kg
Counterweight Capacity 22 lb
RA Encoder Resolution 11.8
GoTo Capable
Object Database 42900
Motor Type 0.9° Hybrid Stepper
Saddle Type D-style Dovetail
Power Current 3 A
USB Ports 4
Power Ports 3
Serial Ports 3
Slew Speeds 1x, 2x, 8x, 16x, 32x, 200x, 400x, 600x, 800x, 1000x
Alignment Procedures One-, Two-, Three-Star
Latitude Range 10°
Tripod Leg Diameter 2.4 in
Tripod Weight 64.8 kg
Tripod Minimum Height 49.75 in
Tripod Maximum Height 58.63 in
