Paramount MyT Equatorial Mount
Software Bisque
From $7,295.00
3 stores
In stock

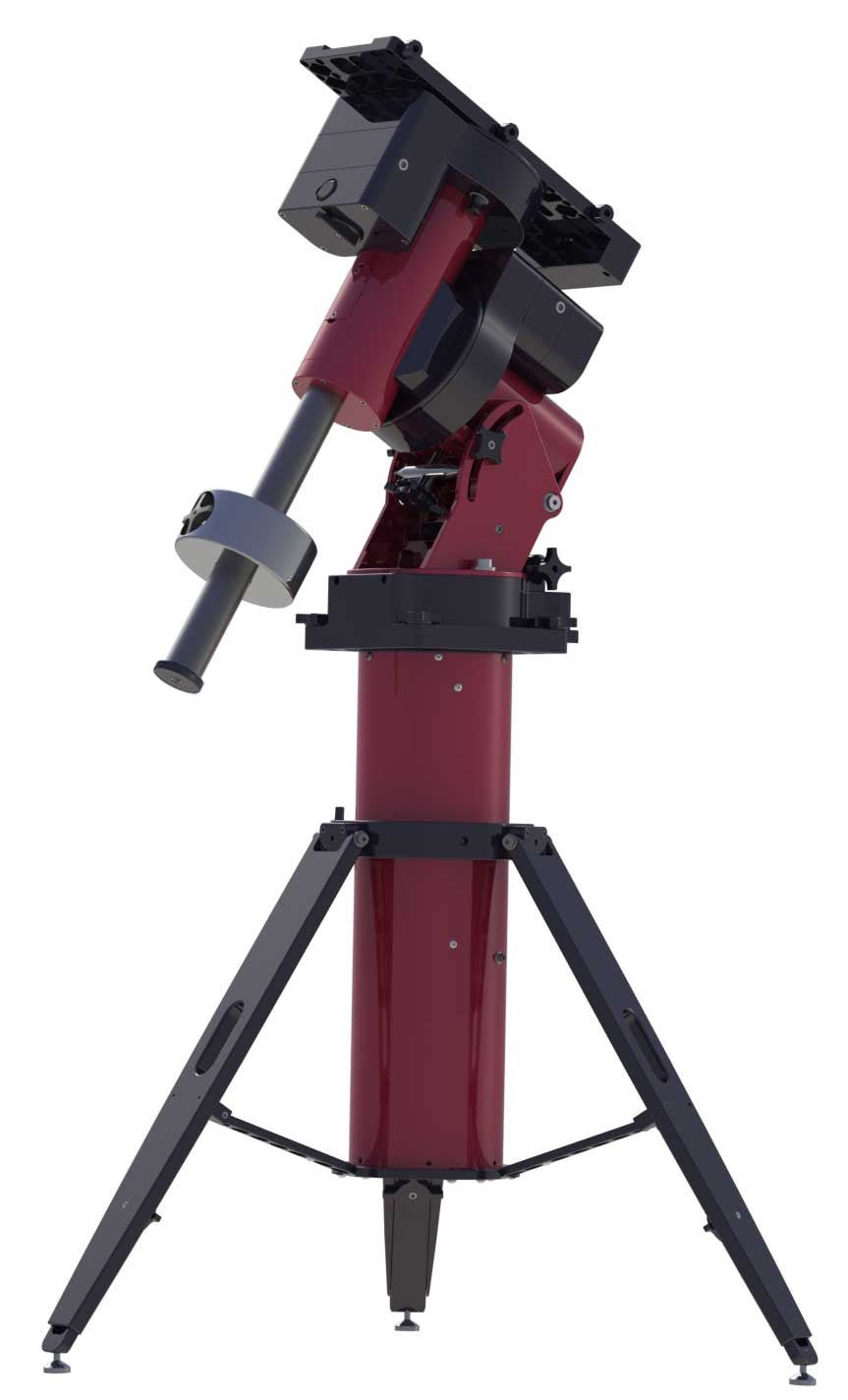

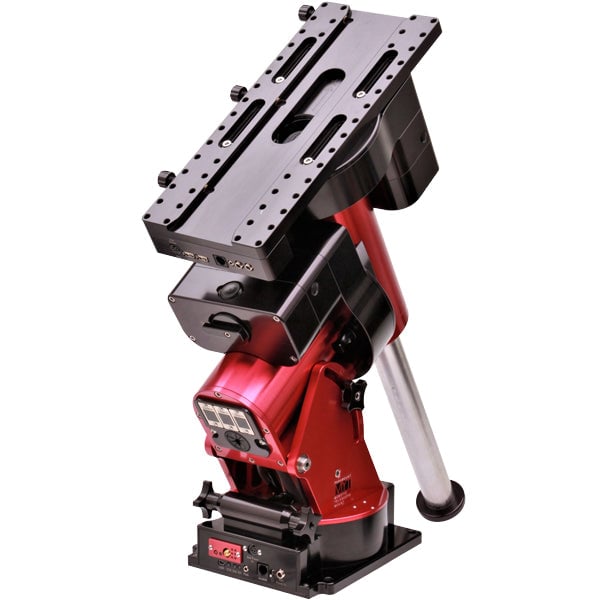

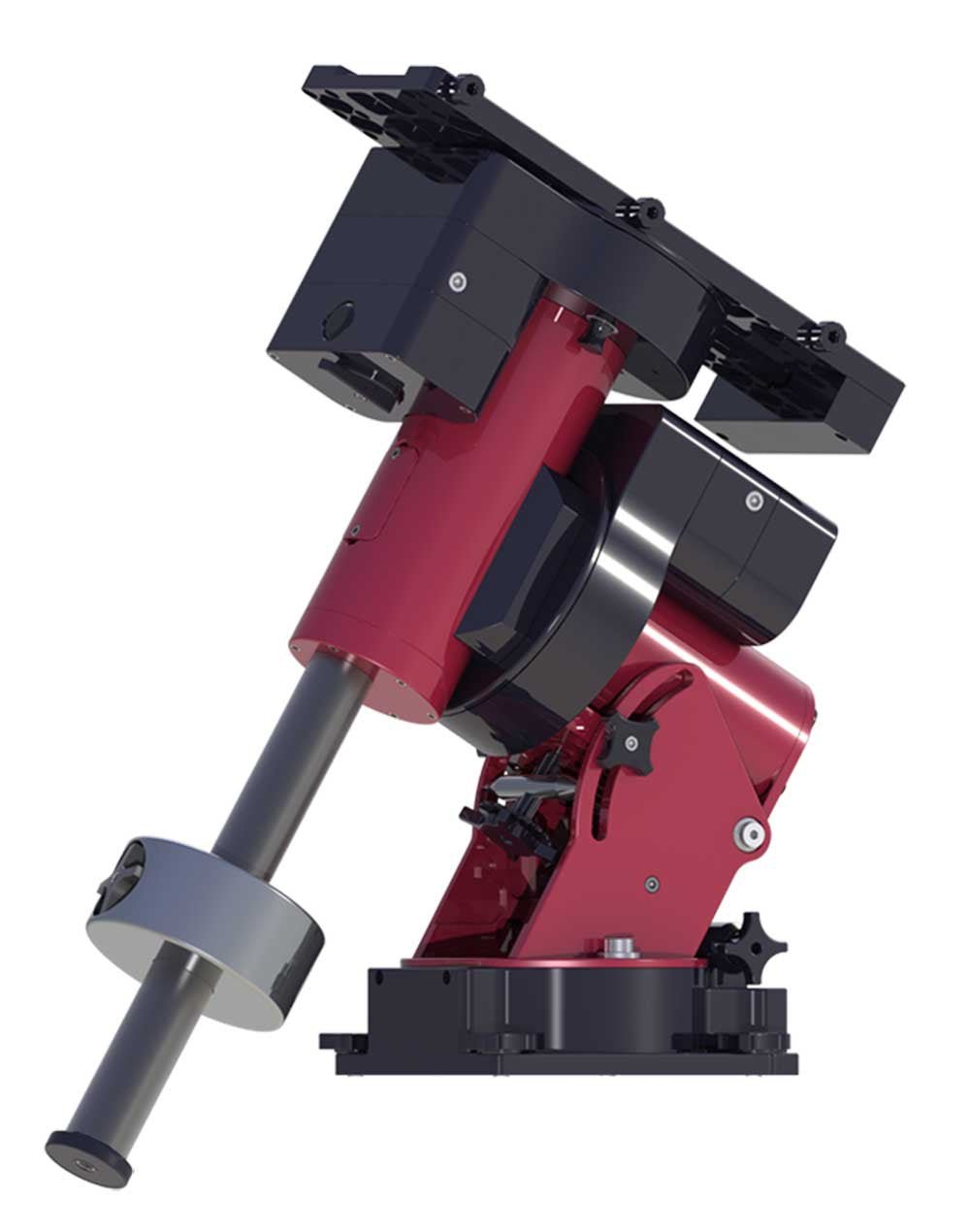

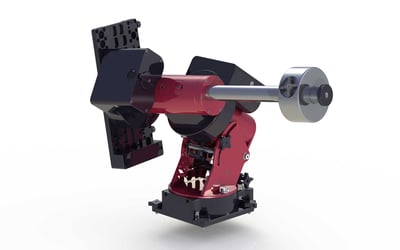

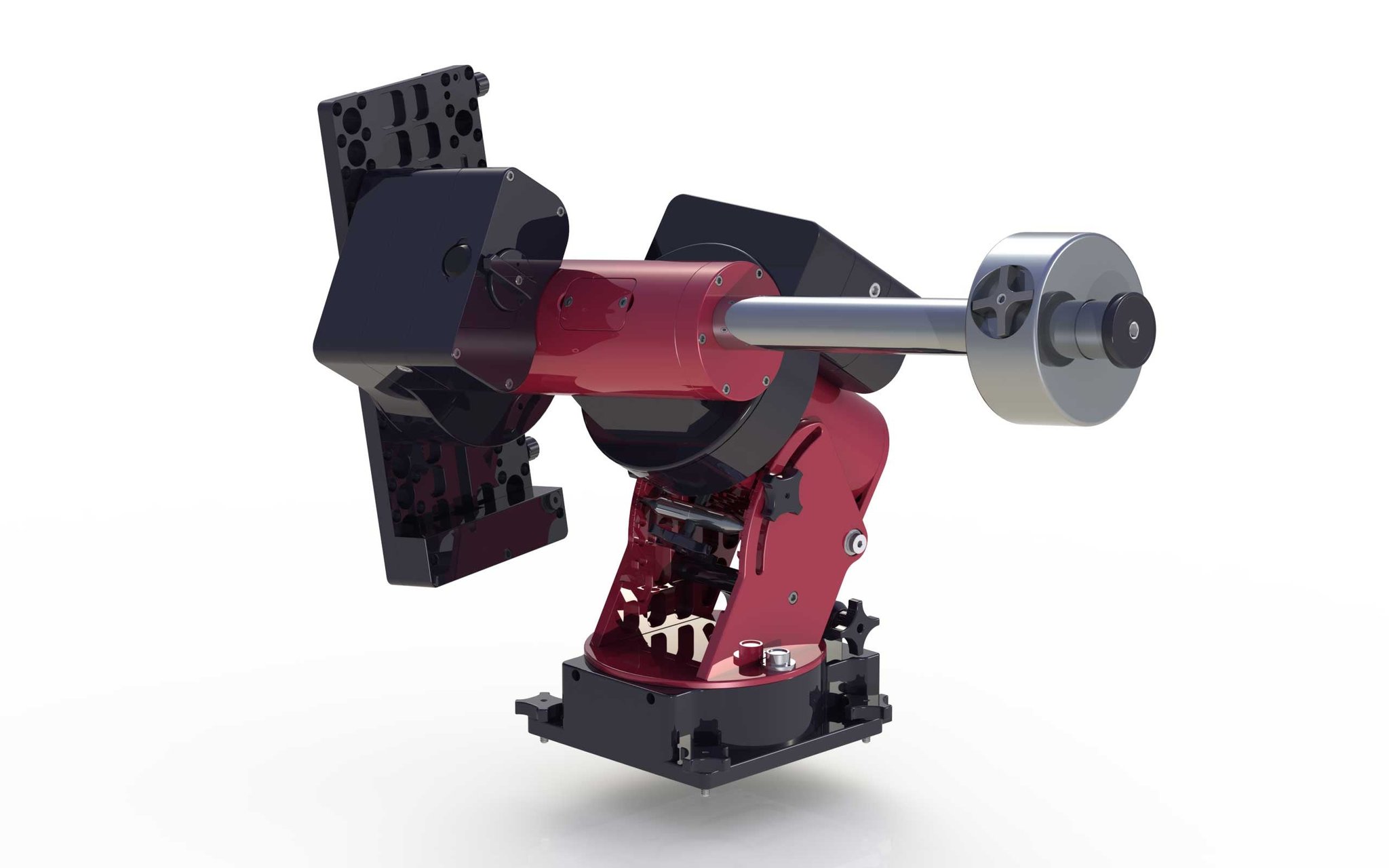

The Paramount MYT Series 6 Robotic Telescope Mount is a German equatorial mount designed from the base up to provide unsurpassed stability and performance for portable, semi-portable, or permanent installations. This ultimate grab-and-go observatory-class mount combines exceptional pointing accuracy and tracking performance through integrated TPoint™ modeling and ProTrack™ technologies, enabling all-sky pointing accuracy at or below 30 arcseconds RMS and unguided exposures as long as 20 minutes. Weighing 35 lb (16 kg) without counterweights or counterweight shaft, the mount is ideal for astrophotographers seeking research-grade precision in a portable package.
Specifications
| Pointing Accuracy | 30′ |
| Polar Alignment Azimuth Adjustment | 7° |
| Declination Bearing Size | 4.3 in |
| Counterweight Shaft Width | 1.5 in |
| Encoder Operating Temperature Range High | 80 °C |
| Maximum Payload Capacity | 64 lb |
| Control System | MKS 6000 |
| Right Ascension Bearing Size | 4.3 in |
| Counterweight Shaft Length | 13 mm |
| Encoder Operating Temperature Range Low | -40 °C |
| Polar Alignment Elevation Range | 0° |
| Periodic Error Before PEC | 7″ |
| Power Supply Output | 80 W |
| Mount Weight | 16 lb |
| Periodic Error After PEC | 1″ |
| Backlash | 2″ |
| Power Supply Output Voltage | 48 V |
| Included Software | TheSky Professional, TPoint, Cameras+, Domes, Multi-OS+ modules |
| Instrument Capacity | 32 lb |
| Maximum Slew Speed | 6° |
| Included Counterweight | 9 lb |
| Optional Absolute Encoders | 26-bit Renishaw |
| Mount type | German Equatorial |
| Unguided Exposure Capability | 20 min |
| Power Supply Output Current | 1.66 A |
