RST-300
Rainbow Robotics
From ~$9,499.76
2 stores

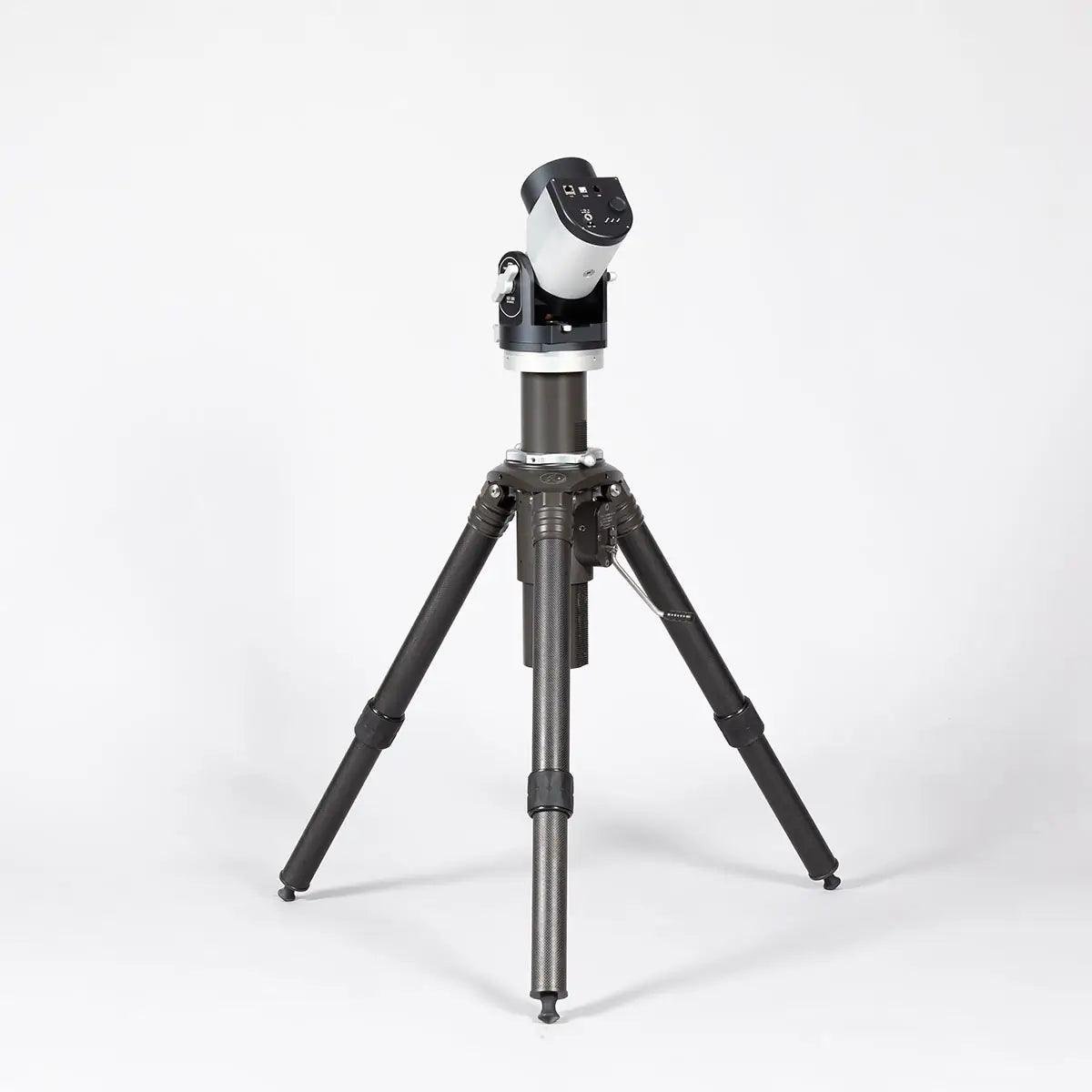

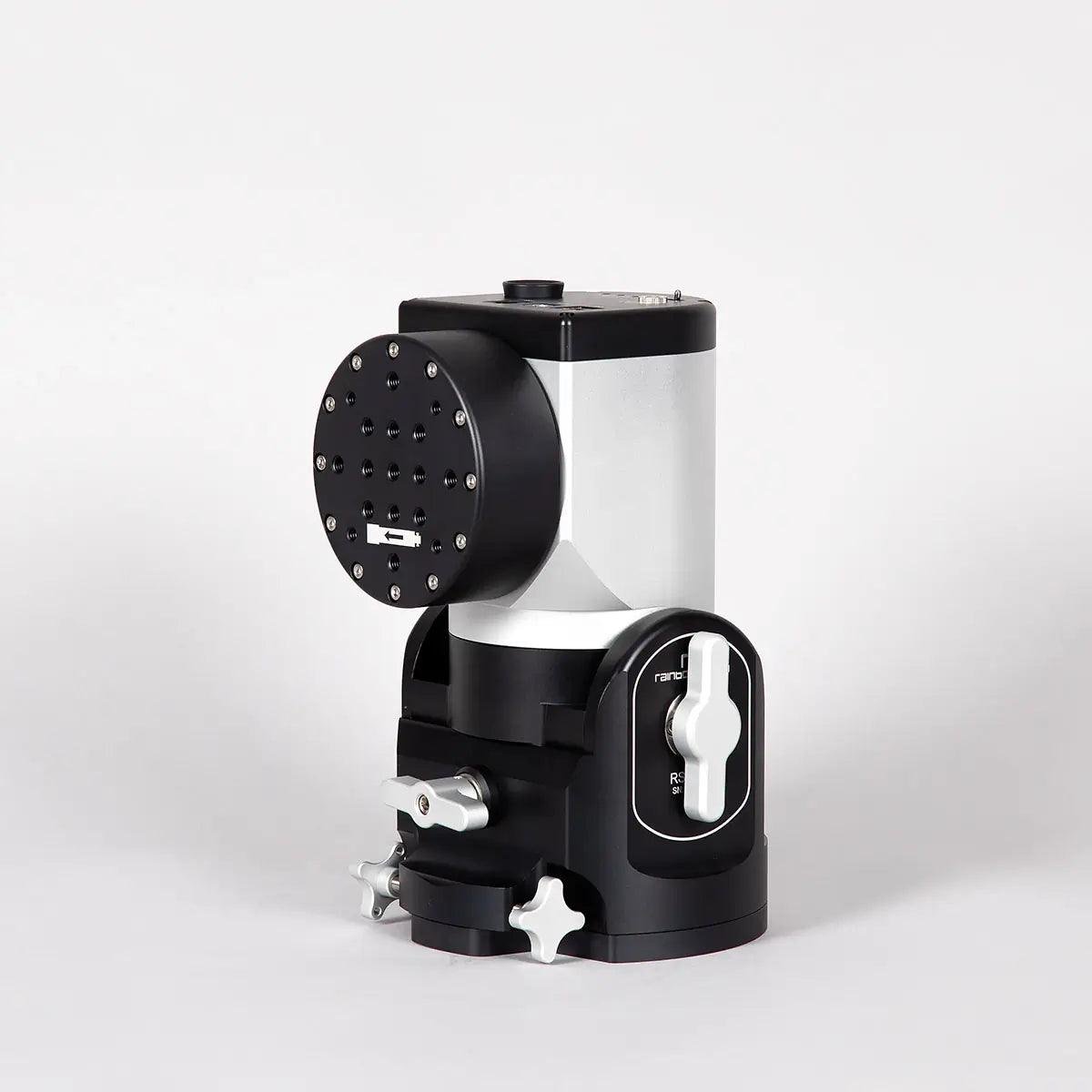

The Rainbow Robotics RST-300 is a revolutionary equatorial mount featuring strain wave (harmonic drive) technology that provides high torque in a compact package with essentially zero backlash. This dual-mode German equatorial/Alt-azimuth mount can hold 30kg of equipment without counterweights (50kg maximum with optional counterweights) while weighing only 8.5kg, making it ideal for portable astrophotography and remote observatories. The RA axis features a built-in brake system that prevents the mount from drifting when powered off, and integrated WiFi connectivity allows smartphone control via SkySafari while a built-in GPS receiver automatically captures observer position and time. Unlike stepper motor designs, the RST-300 features DC servo motors for improved tracking accuracy and smoother motion control.
Specifications
| Drive System | Strain Wave Gear (Harmonic Drive) with DC Servo Motors |
| RA Axis Brake | ✓ |
| Load Capacity (With Counterweights) | 50 kg |
| Warranty | 5 |
| WiFi Connectivity | ✓ |
| Alignment Accuracy | 2′ |
| Mount type | Dual mount - German Equatorial and Alt-Azimuth |
| Dimensions | 18.3 x 17.5 x 27.9 |
| Weight | 8.5 lb |
| Material | Aluminum alloy AL6061, Steel, Brass |
| Home Sensor | ✓ |
| Load Capacity (Without Counterweights) | 30 kg |
| GPS Receiver | ✓ |
