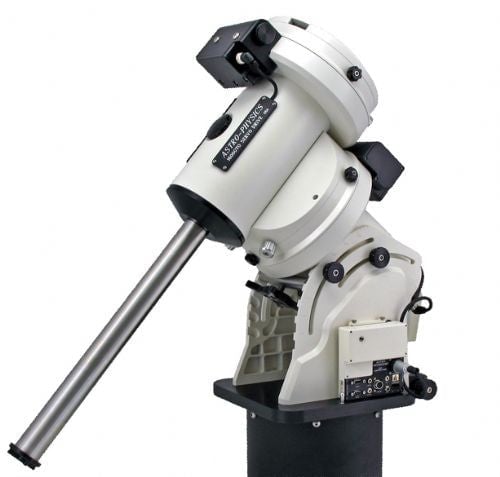

1600GTO Computerized German Equatorial Telescope Mount
Astro-Physics
From $13,450.00
2 stores
The Astro-Physics 1600GTO is an observatory-grade German equatorial mount with a payload capacity of 220 lbs, manufactured and assembled in the USA, and individually tested to exceed a periodic error specification of 5 arc seconds. Built from the ground up as a precision imaging platform, the mount remains user-friendly while delivering the accuracy needed for demanding astrophotography work. Its large adjustable latitude range of 0 to 78 degrees eliminates the need for a wedge, and it uses a high-quality Swiss DC servo motor controlled by microprocessor to an accuracy of 0.05 arc-seconds per step. The mount is available in three versions: standard, with standard-temperature absolute encoders (1600GTO-AE), or with extended-temperature absolute encoders (1600GTO-AEL).
Specifications
| Minimum Guiding Speed | 0.25 |
| Worm Wheel Diameter | 10.3 mm |
| Counterweight Shaft Diameter | 1.875 mm |
| Azimuth Adjustment Range | 13° |
| Slew Rate | 5° |
| Periodic Error Specification | 5″ |
| Slewing Current Draw | 2.5 A |
| Axis Shaft Diameter | 3.74 in |
| Counterweight Shaft Length | 22 mm |
| Payload Capacity | 220 lb |
| Latitude Range | 0° |
| Speed Range | 4800 |
| Tracking Current Draw | 0.5 A |
| Worm Wheel Tooth Count | 225 |
| Dec Axis Weight | 40 lb |
| Absolute Encoder Periodic Error | 0.2″ |
| RA Axis Weight | 63.7 lb |
| Stepper Motor Accuracy | 0.05″ |
| Operating Voltage | 12 V |
| Bearing Diameter | 5.71 mm |
| Pointing Accuracy | 1′ |
| Mount Weight | 123.9 lb |
| Slew Speed | 1200° |
