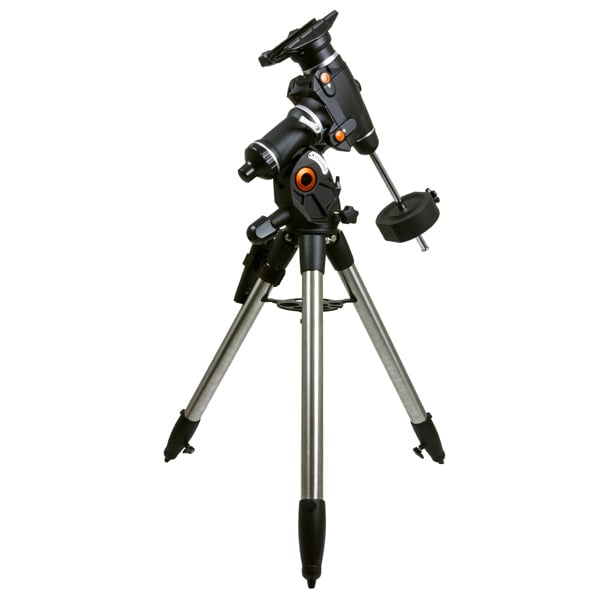

CGEM II EQ Mount
Celestron
From $2,099.00
3 stores

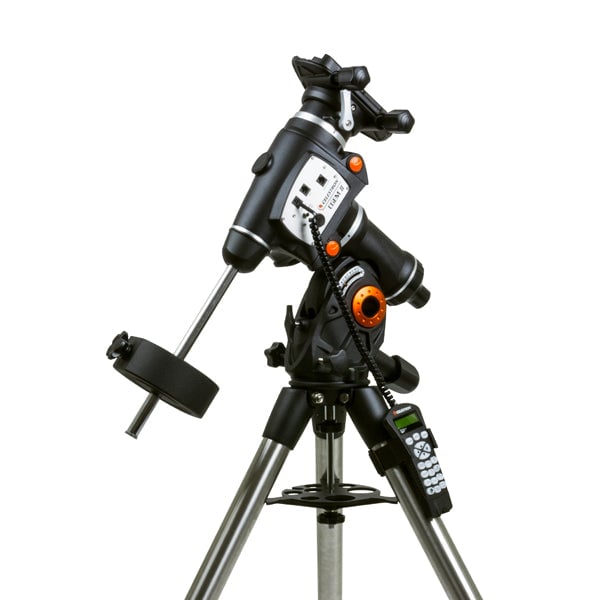

The Celestron CGEM II is a fully computerized German equatorial mount engineered for both serious visual astronomers and astrophotographers seeking exceptional precision tracking. With a robust 40-pound payload capacity, it securely handles large optical tubes up to 11 inches, making it ideal for long-exposure deep-sky imaging and planetary work. The mount features Celestron's innovative All-Star Polar Alignment procedure, Permanent Periodic Error Correction (PPEC), and the ability to track smoothly past the meridian for uninterrupted imaging sessions. The included NexStar+ hand controller provides access to over 40,000 celestial objects and supports ASCOM-compatible computer control for advanced astrophotography workflows.
Specifications
| Motor Type | Low cog DC Servo with optical encoders |
| Payload Capacity | 40 lb |
| Latitude Range | 15° |
| Warranty | 2 |
| Hand Controller Display | 2 |
| Mount type | German Equatorial |
| Database Objects | 40000 |
| Worm Gear Type | Steel with 90mm brass worm wheel |
| Tripod Weight | 20 kg |
| Height Adjustment Range | 1346 mm |
| Connection Ports | USB 2.0, 2 AUX ports |
| Counterweight (Standard) | 17 lb |
| Power Requirements | 12 V |
| Slew Speed | 5° |
| Total Mount Weight | 75 lb |
| User-Defined Objects | 100 |
| Mount Head Weight | 40 kg |
| Tripod Leg Diameter | 2 in |

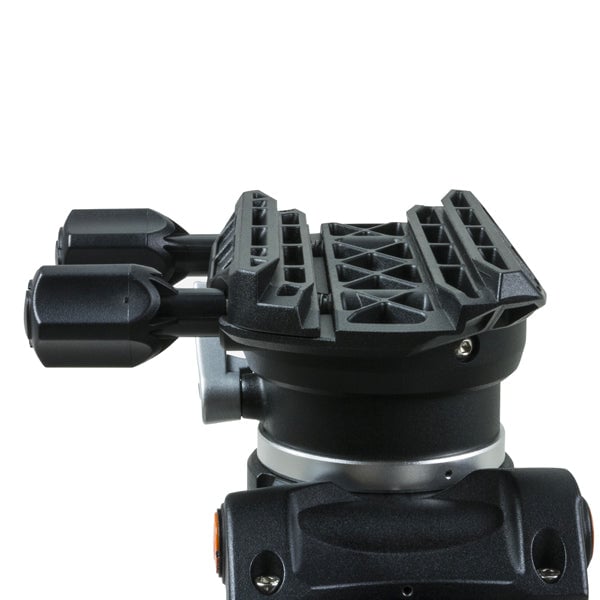

| Saddle Compatibility | Vixen/CG-5 and Losmandy/CGE dovetails |
