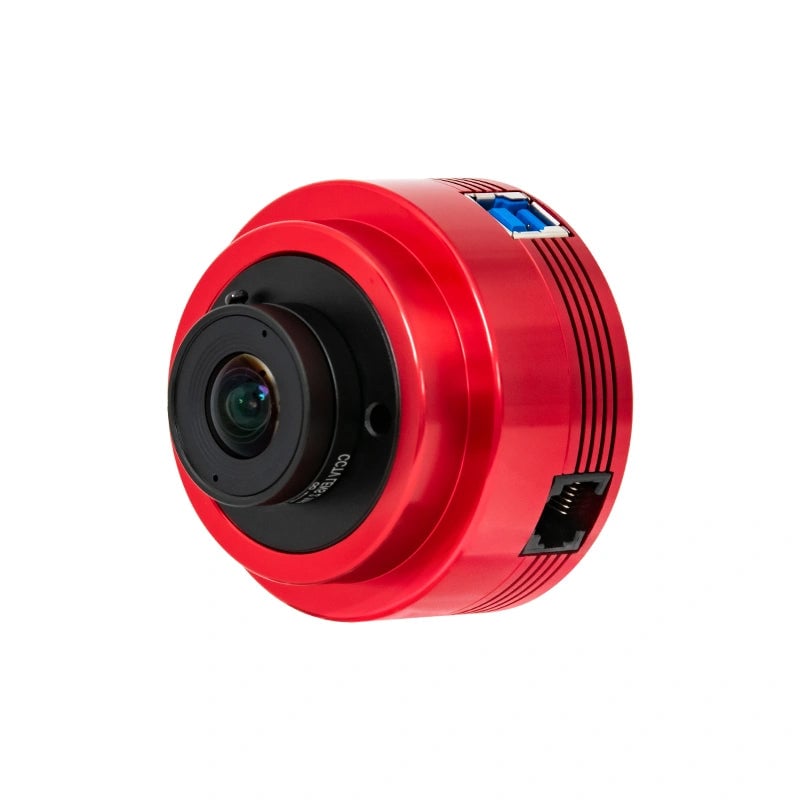

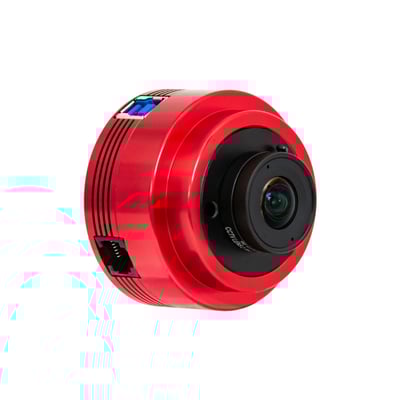

ASI662MM

ZWO

From ~$276.98

5 stores

In stock

The ZWO ASI662MM is a high-performance monochrome camera designed for lunar, solar, and planetary astrophotography. Powered by the Sony IMX662 sensor with STARVIS 2 technology, it features a 1920x1080 resolution, ultra-low 0.8e read noise, and an impressive 91% quantum efficiency. Its back-illuminated design and 2.9µm pixels deliver sharp, detailed frames, while a 38.2Ke full well depth ensures excellent dynamic range. The ASI662MM captures up to 107.6 FPS at full resolution using its USB 3.0 interface, supported by a 256MB DDR3 buffer to reduce data lag. As the monochrome version of the camera, it offers maximum sensitivity and flexibility, especially when combined with filters for LRGB or narrowband imaging, making it the preferred choice for serious planetary imagers who want to capture the finest details.

Specifications

Sensor Size 5.568 mm
Max Frame Rate 107.6 fps
Shutter Type Rolling shutter
Weight 126 lb
Sensor diagonal 6.45
Quantum Efficiency 91%
Exposure Range 32 µs to 2000 s
Operating Temperature Range -5 °C
Sensor Format 1/2.8 inch
Pixel Size 2.9 μm
ADC Bit Depth 12
Back Focus Length 12.5 mm
Sensor type Sony IMX662 CMOS
Pixel Array 1920 x 1080
Full Well Capacity 38.2
Memory Buffer 256
Power Consumption 1.36 W
Resolution 2.07″
Read Noise 0.8
Interface USB 3.0 / USB 2.0 Type-B
Storage Temperature Range -10 °C

Related products

ZWO ASI678MM

ASI678MM

ZWO

~$357.36

ZWO ASI662MC

ASI662MC

ZWO

~$152.74

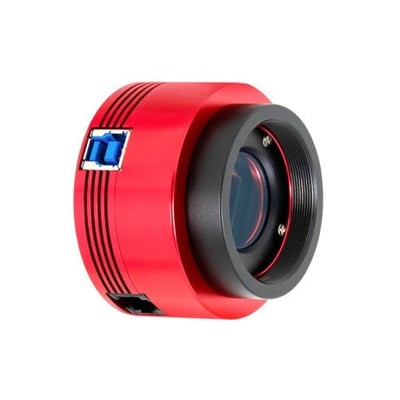

ZWO ASI533MM
