ASI461MM Pro
ZWO
From ~$13,153.80
4 stores

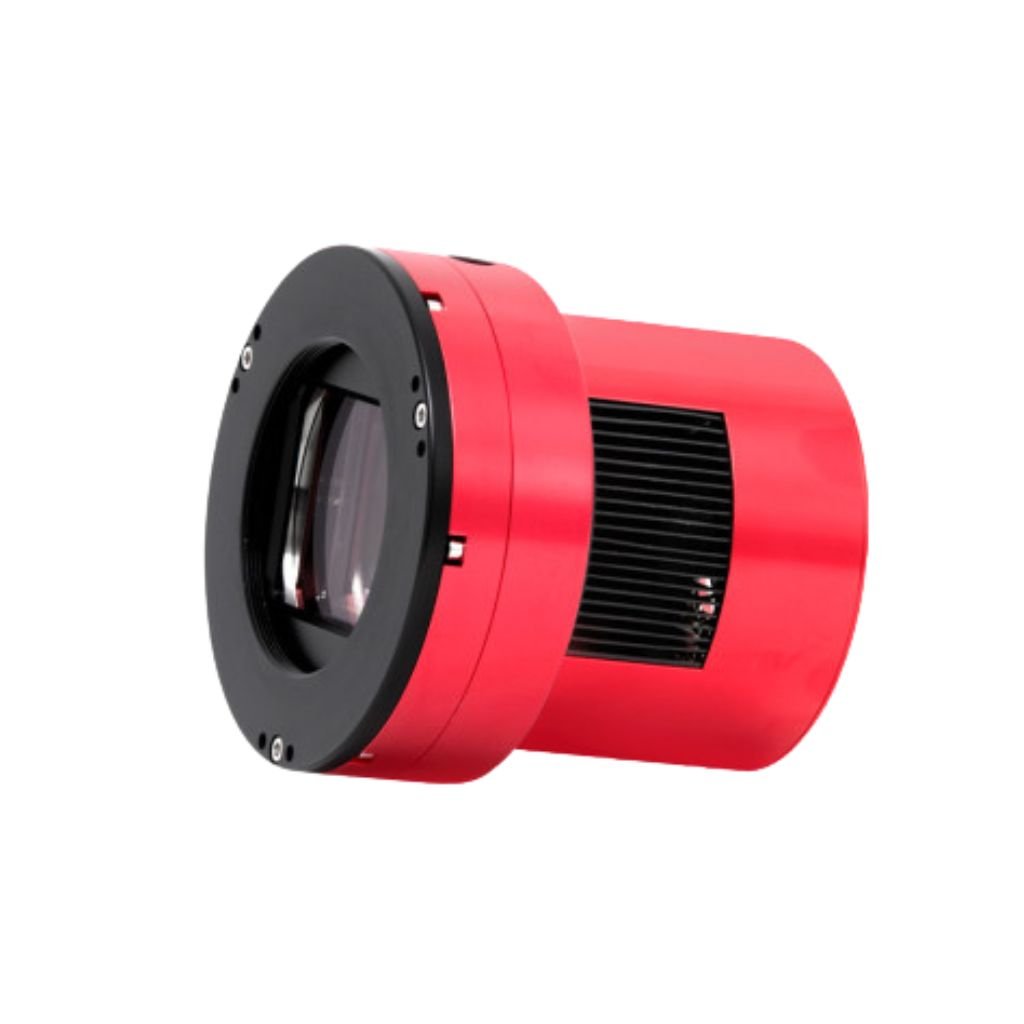

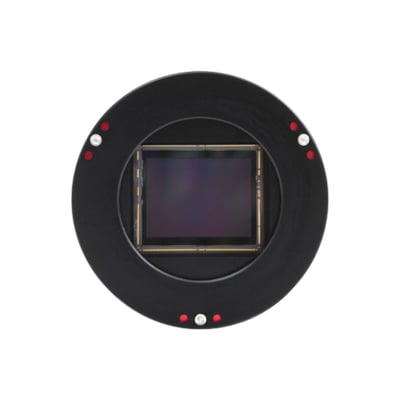

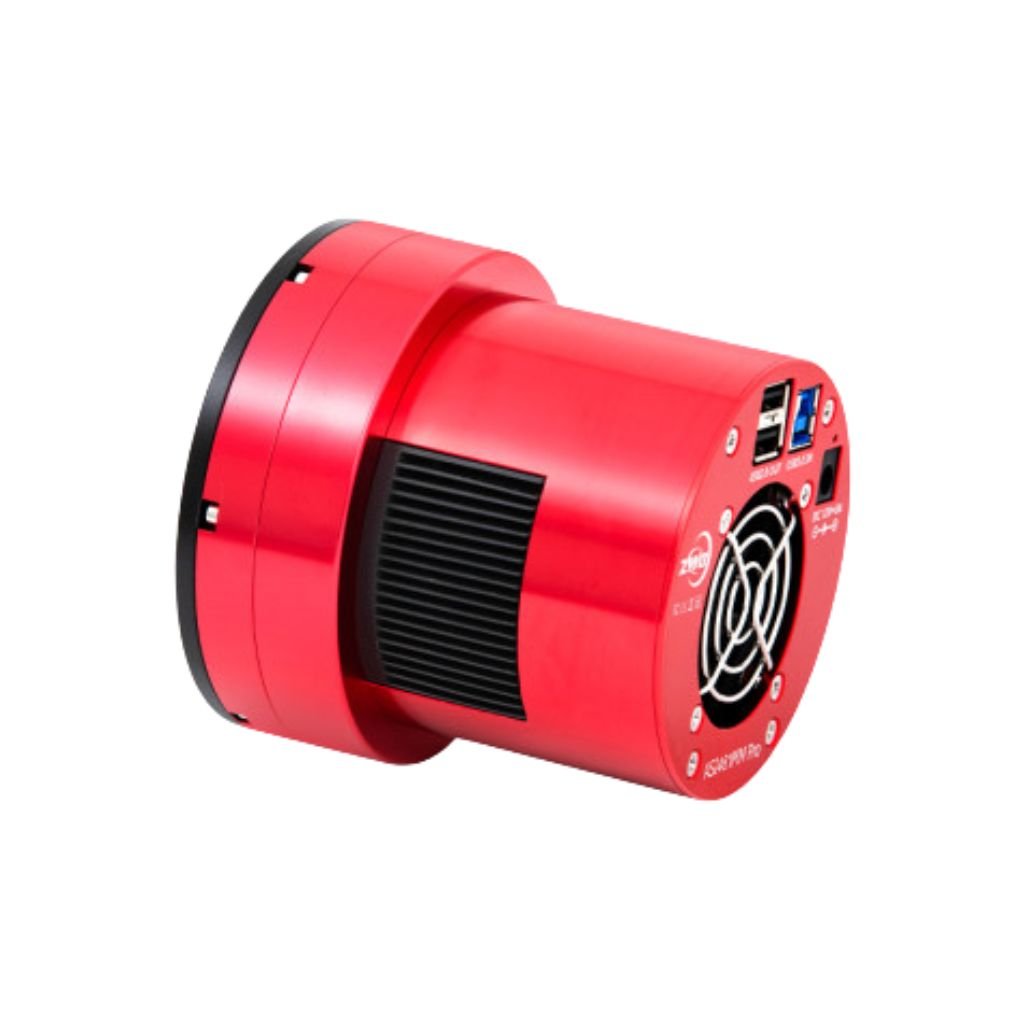

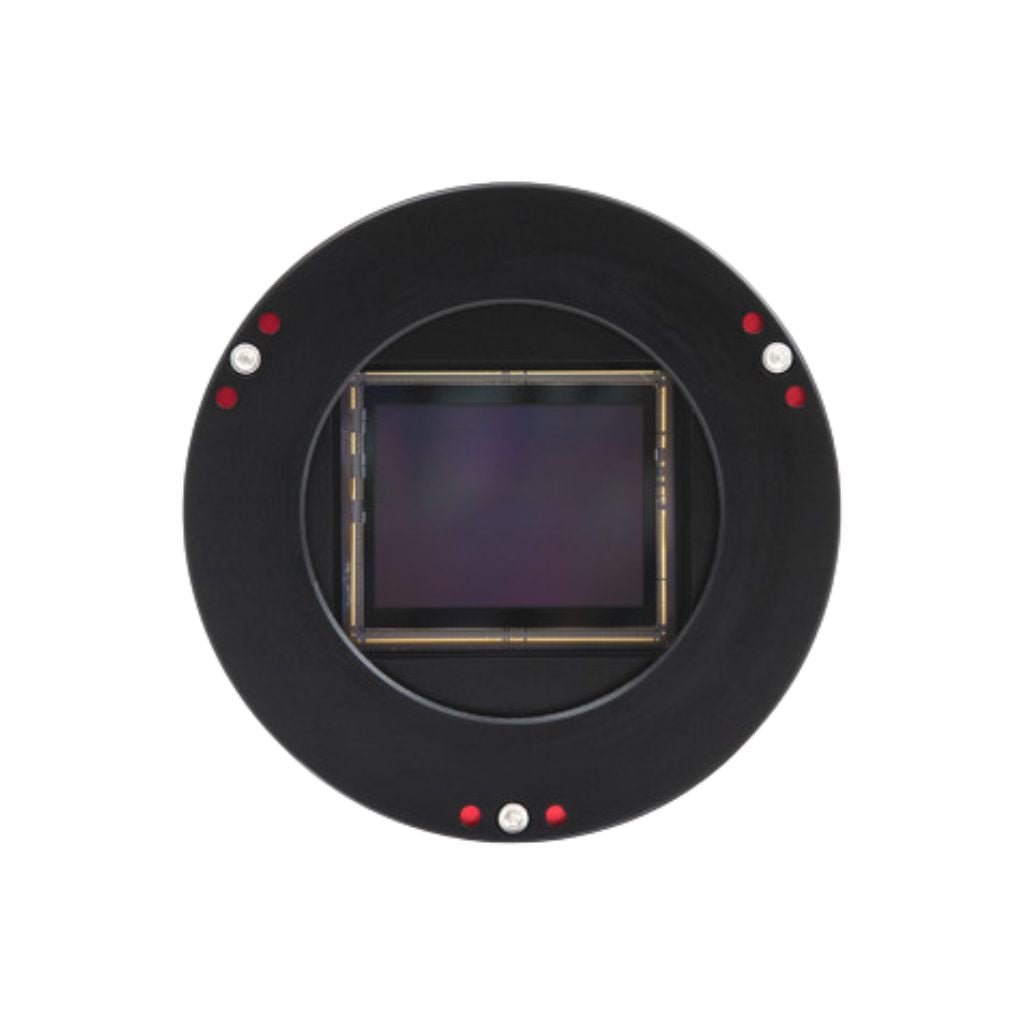

The ZWO ASI461MM Pro is a high-performance cooled monochrome camera featuring the large-format 100MP Sony IMX461 sensor (44 x 33mm), delivering exceptional clarity with 16-bit ADC, high quantum efficiency, and zero amp glow circuitry for clean, low-noise images. With very low readout noise, nearly zero fixed-pattern noise, 3.76μm pixels offering a 50.3Ke full well capacity, and dual-stage TEC cooling that drops sensor temperature by up to 35°C below ambient, this camera significantly reduces noise for deep-sky imaging and scientific research. As a monochrome camera, each pixel captures pure luminance data without a Bayer matrix, enabling specialized narrowband imaging with hydrogen-alpha, oxygen-III, and sulfur-II filters to reveal structures hidden in broadband light.
Astronomy Plus
ASI461MM Pro Mono Cooled (ASI461MM-P)
Worldwide shipping
CA$17,999.00
~$13,153.80
Astronomics
ASI461MM Pro Camera
$14,800.00
OPT
ASI461MM Pro Cooled Camera
Worldwide shipping
$14,800.00
Astroshop.eu
Camera ASI 461 MM Pro Mono
Worldwide shipping
€14,390.00
~$16,964.34
Specifications
| Sensor pixel size | 3.76 |
| Sensor type | CMOS |
| Sensor resolution | 11656 |
| Sensor read noise | 1 |
| Sensor diagonal | 3.4 |
| Sensor | Sony IMX461ALR C |
| Read Noise (HCG Mode) | <1.5 |

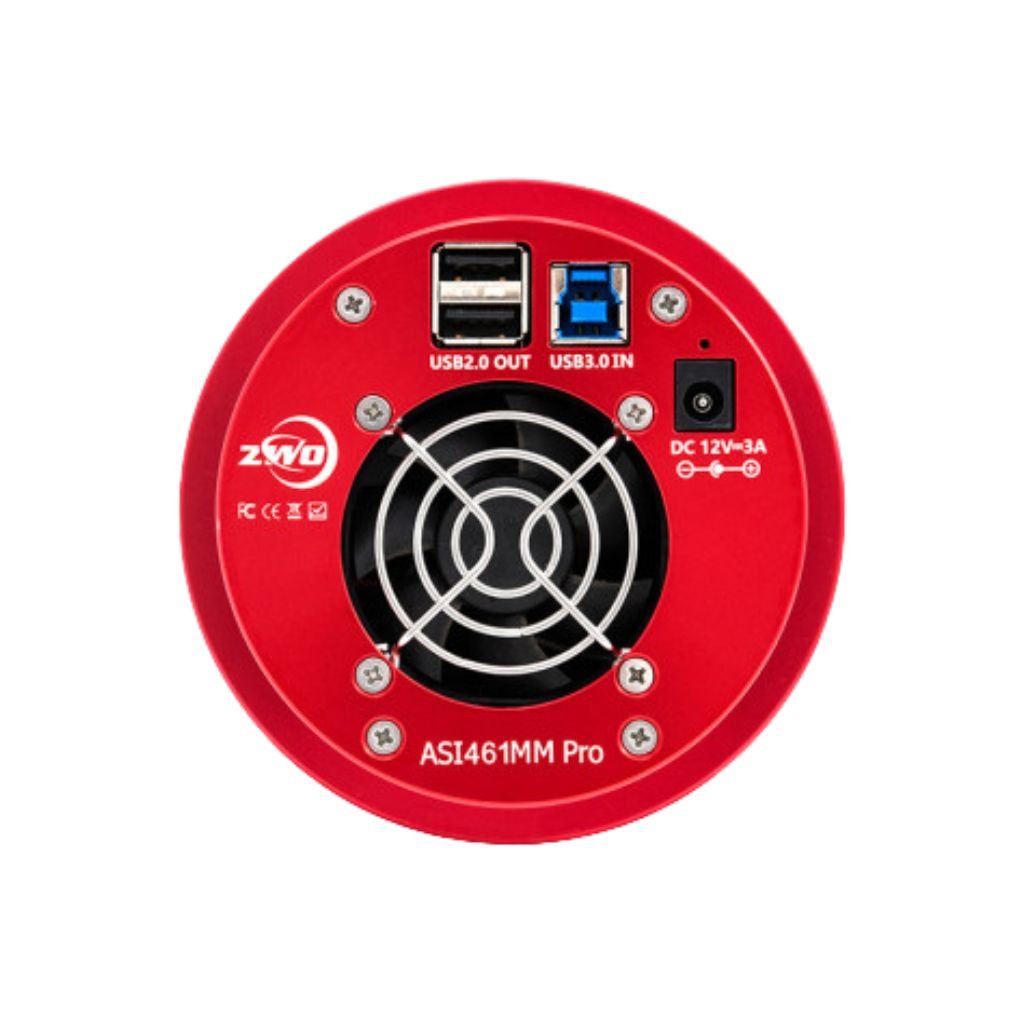

| USB Interface | USB 3.0 Type-B |
| Dew Heater Power | 5 W |
| Quantum Efficiency Peak | 91% |
| Memory Buffer | 256 |
| Full Well Capacity | 50.3 |
| Cooling Delta T | 35 °C |
| Maximum Frame Rate | 3.77 fps |
| Sensor Dimensions | 44 |
| Weight | 910 lb |
| Back Focus Length | 17.5 mm |
| Full Well Capacity (Bin2 Mode) | 198 |
| ADC Bit Depth | 16 |
| Power Requirement | 12V, 3A minimum |
| Read Noise | 1.0 |
| Dynamic Range | 14 |
| Operating Temperature Range | -5 °C |
