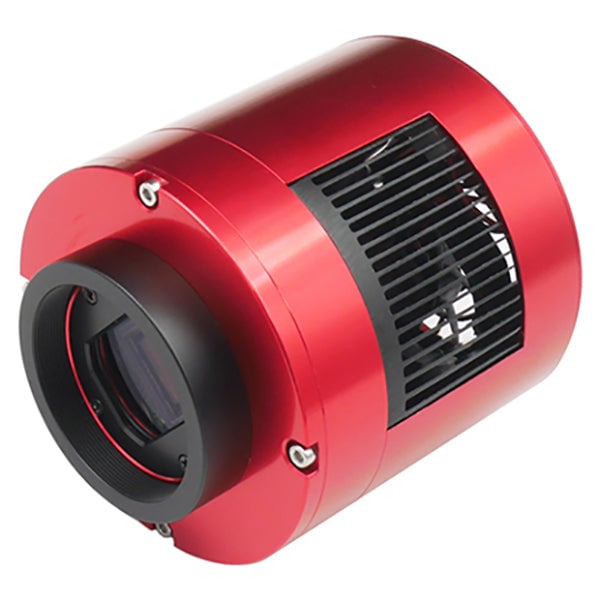

ASI294MM Pro
ZWO
From $1,280.00
7 stores

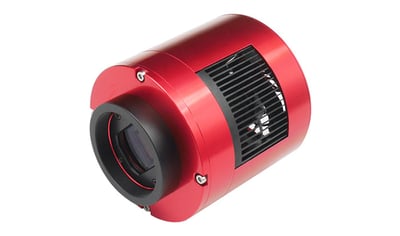

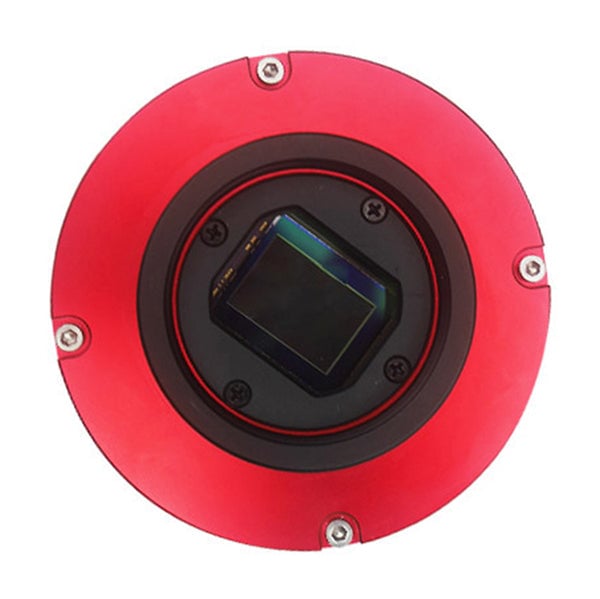

The ASI294MM Pro is the monochrome version of the ASI294MC Pro, one of ZWO's most popular astronomy cameras. This monochrome, cooled camera features a 4/3" 11.7MP Sony IMX492 sensor capable of true 4K resolution, ultra-low 1.2e read noise, and an exceptional 90% quantum efficiency. Integrated two-stage TEC cooling reduces sensor temperature to 30-40 degrees Celsius below ambient temperature for low-noise deep-sky imaging. The sensor is natively binned 2x2 to give 4.63 µm pixels, ideal for long focal length telescopes, but can be unbinned to give small 2.3 µm pixels for wide focal length scopes such as refractors.
OPT
ASI 294MM Pro Cooled Mono Astrophotography Camera
Worldwide shipping
$1,280.00
Astronomy Plus
ASI294MM Pro Mono Cooled (ASI294MM-P)
Worldwide shipping
CA$1,809.00
~$1,322.03
Astronomics
ASI294MM Pro Cooled Mono CMOS Astrophotography Camera
$1,480.00
High Point Scientific
ZWO ASI294MM Pro Cooled Monochrome Camera
Ships to US only
$1,480.00
Starizona
ASI 294MM-Pro Cooled Monochrome Camera
Worldwide shipping
$1,480.00
Astroshop.eu
Camera ASI 294 MM Pro Mono
Worldwide shipping
€1,490.00
~$1,756.56
First Light Optics
ZWO ASI 294MM-Pro USB 3.0 Cooled Mono Camera
Worldwide shipping
£1,369.00
~$1,845.34

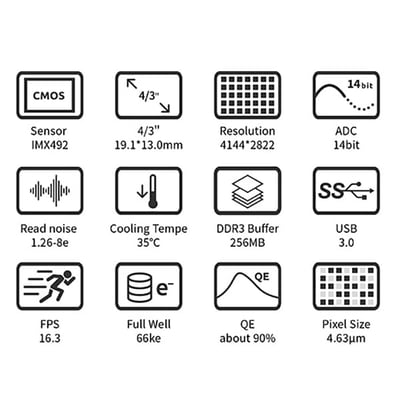

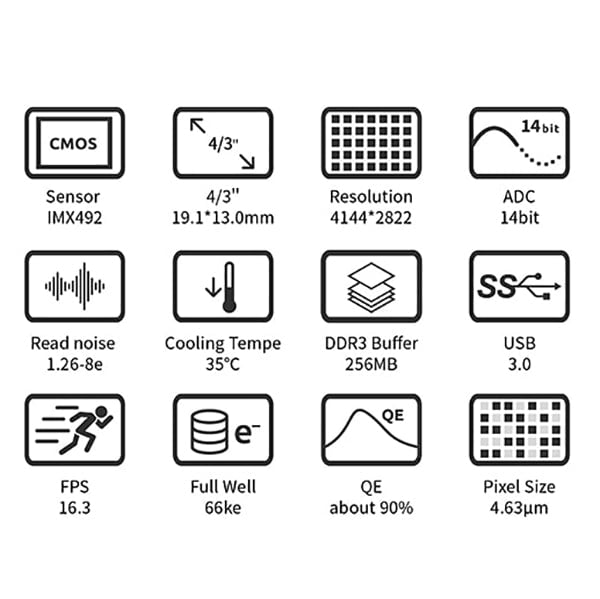

Specifications
| Sensor type | CMOS Chip (Sony IMX492) |
| Sensor read noise | 1.2 |
| Sensor pixel size | 4.6 |
| Sensor diagonal | 23.2 |
| Sensor | Sony IMX492 |
| Sensor resolution | 4144 |
| Sensor Resolution (Megapixels) | 11.7 MP |
| ADC Bit Depth | 14 |
| Frame Rate at Full Resolution | 16.3 fps |
| Read Noise | 1.2 |
| Cooling Type | Two-stage TEC |
| HCG Mode Available | ✓ |
| Pixel Size (Bin 1 Mode) | 2.3 μm |

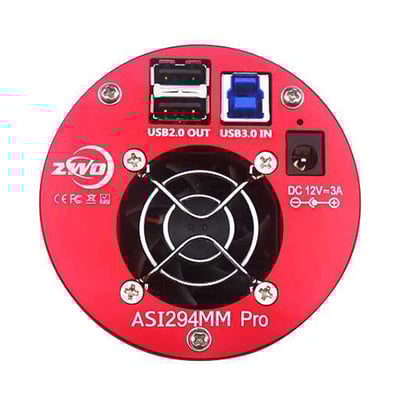

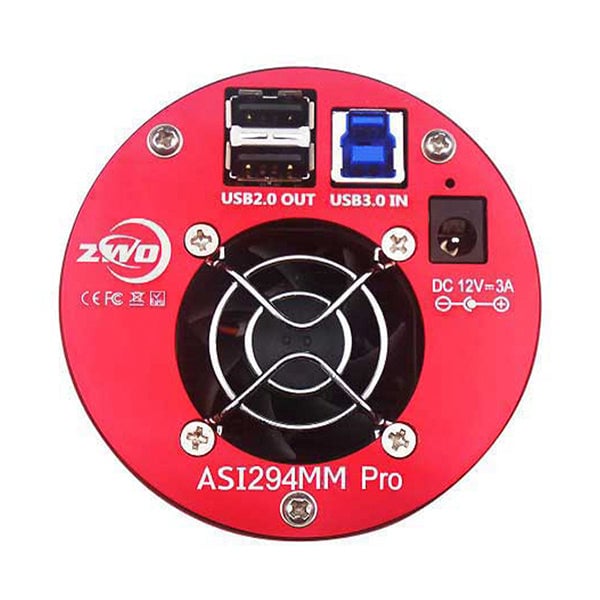

| Power Connector | 5.5 x 2.1mm (center positive) |
| Unlocked Bin 1 Resolution | 8192 x 5556 |

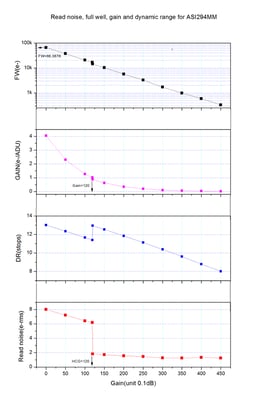

| Dynamic Range | 13 |
| Weight | 14.5 lb |
| Full Well Capacity | 66387 |
| USB Interface | USB 3.0 |
| USB 2.0 Hub Ports | 2 |
| Sensor Format | 4/3 inch |
| Pixel Size (Bin 2 Mode) | 4.63 μm |
| Quantum Efficiency | 90% |
| Cooling Temperature Reduction | 35 °C |
| Power Supply Required | 12V DC at 3A minimum |
| Memory Buffer | 256 |
| USB Data Transfer Speed | 5 |
| Anti-dew Heater Power | 5 W |

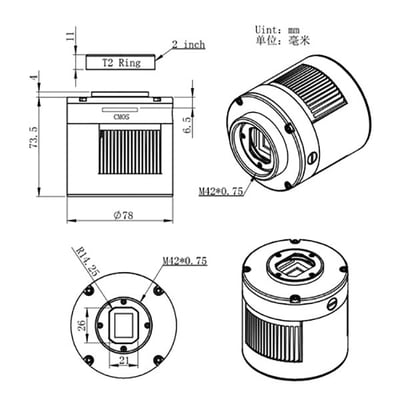

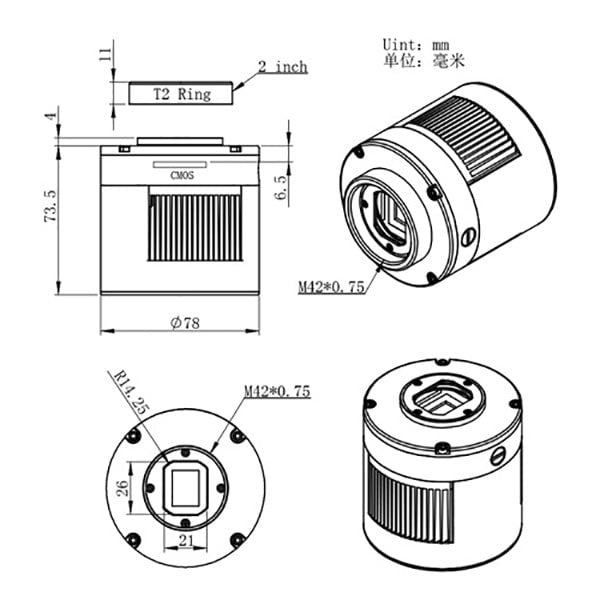

| Camera Diameter | 78 mm |
| Back-Illuminated Sensor | ✓ |
