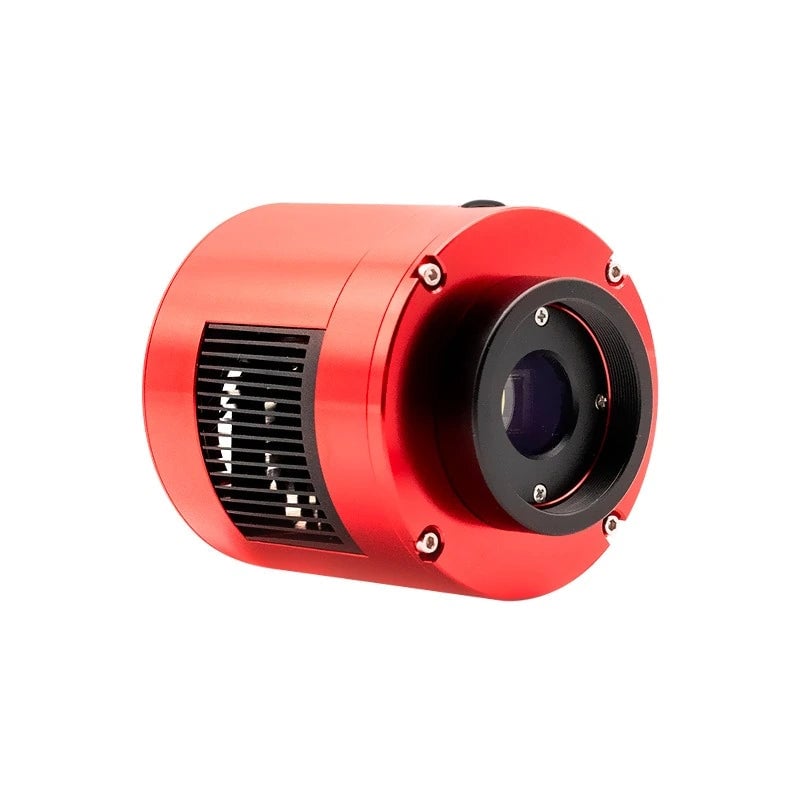

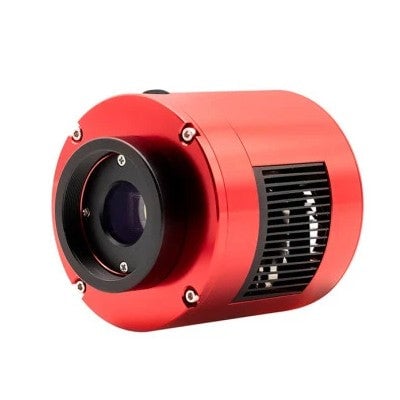

ASI990MM Pro
ZWO
From $16,800.00
2 stores
The ZWO ASI990MM Pro is a scientific-grade, cooled shortwave infrared (SWIR) monochrome camera built on Sony's IMX990 InGaAs sensor, designed for advanced deep-sky imaging and specialized astrophotography. With 1.3MP resolution, 5-micron pixels, and sensitivity spanning 0.4-1.7 micrometers, it enables imaging through light pollution, thin clouds, and even daytime conditions by capturing wavelengths invisible to conventional cameras. Featuring dual-stage TEC cooling that reduces sensor temperature up to 35°C below ambient, ultra-low read noise (~21 electrons), 80% peak quantum efficiency at 1200nm, and zero amp-glow circuitry, the camera delivers exceptionally clean data for long-exposure scientific imaging, photometric measurements, optical communication, and specialized research applications.

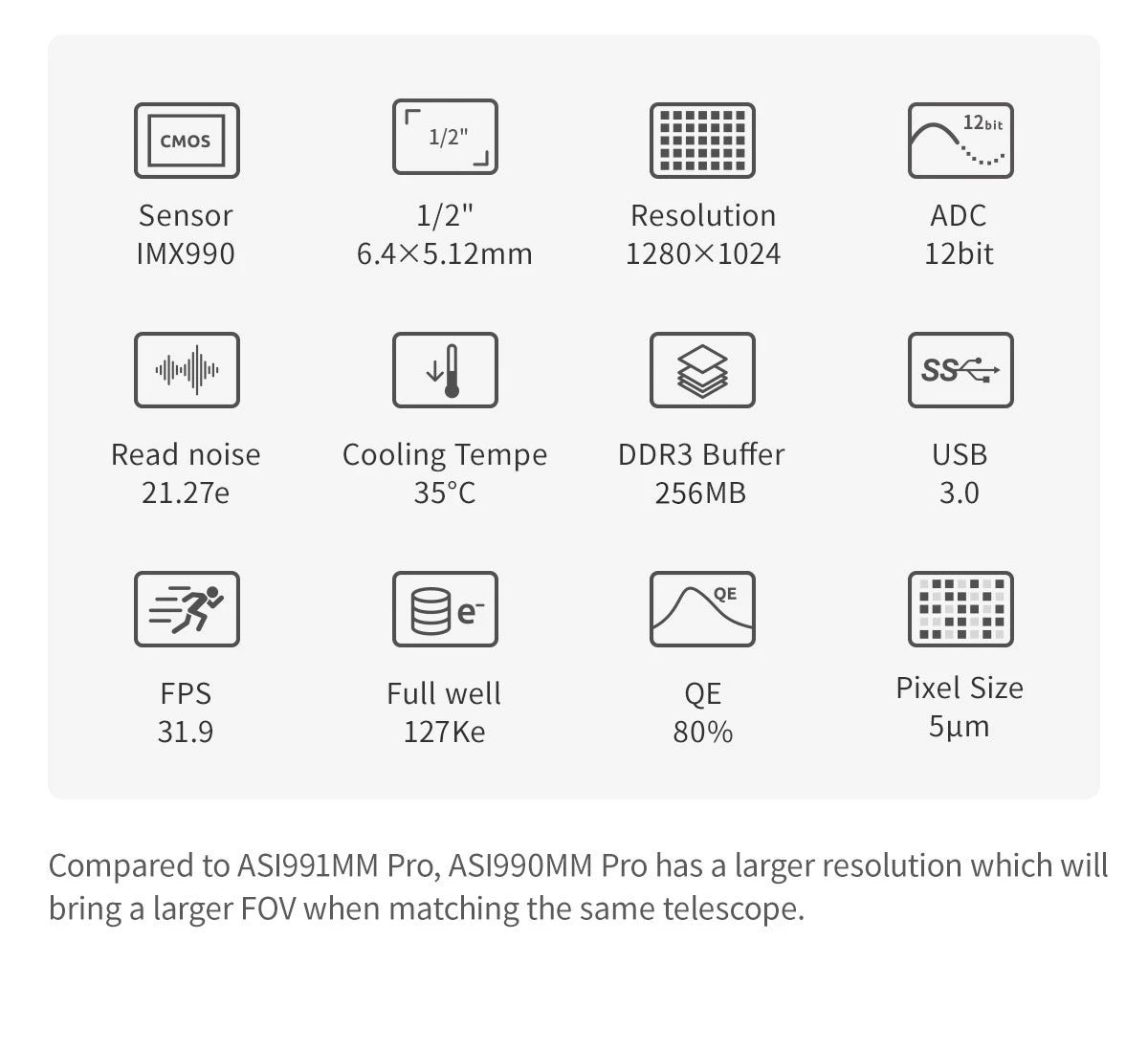

Specifications
| ADC Bit Depth | 12 |
| Cooling System | 2-stage TEC |
| Power Input | 12 V |
| Amp Glow Suppression | ✓ |
| Megapixels | 1.31 MP |
| Quantum Efficiency Peak | 80% |
| Front Thread | M42 x 0.75 |
| Maximum Frame Rate | 31.9 fps |
| Cooling Temperature Reduction | 35 °C |
| Weight | 0.465 lb |
| Pixel Size | 5 μm |
| Peak QE Wavelength | 1200 |
| Power Consumption Non-Cooling | 1.85 W |
| Weight Alternative | 1.2 kg |
| Shutter Type | Global Shutter |
| Spectral Response Range | 0.4 μm |

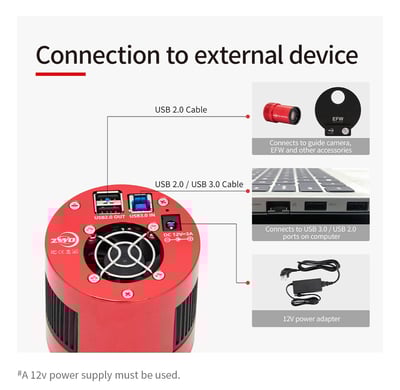

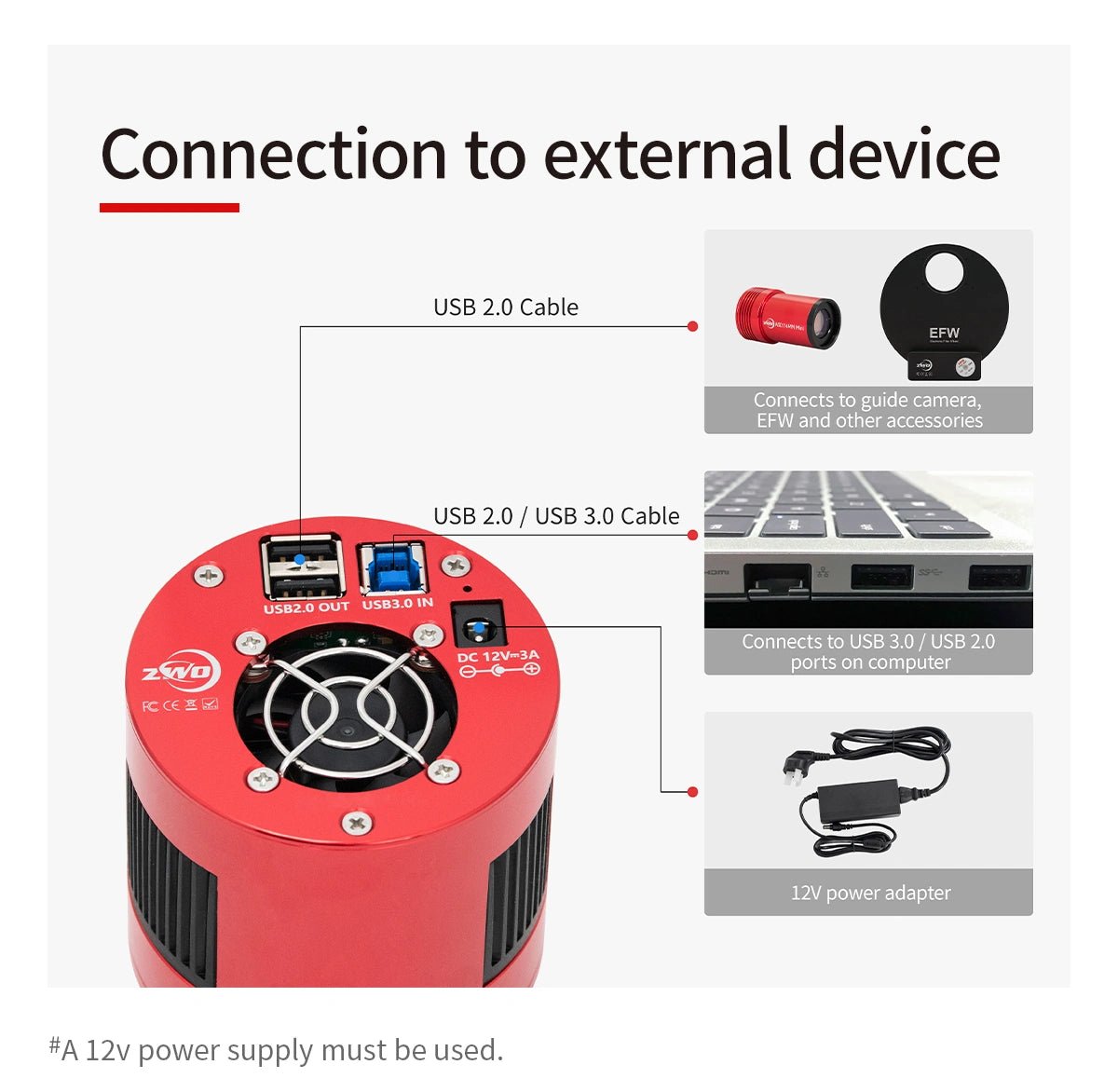

| USB 2.0 Ports | 2 |
| Power Consumption Cooling | 21.36 W |
| Back Focus Native | 6.5 mm |
| Resolution | 1280″ |
| Full Well Capacity | 127000 |
| Back Focus with T2 Spacer | 17.5 mm |
| DDR3 Buffer | 256 |
| Sensor Format | 1/2 inch |
| Read Noise | 21.27 |
| USB Interface | USB 3.0 |
| Sensor type | Sony IMX990 InGaAs |
| Sensor Dimensions | 6.4 |
| Protective Window | 32mm diameter, 2mm thick, AR-coated |
