ASI2600MM Duo
ZWO
$2,299.00
1 stores
In stock

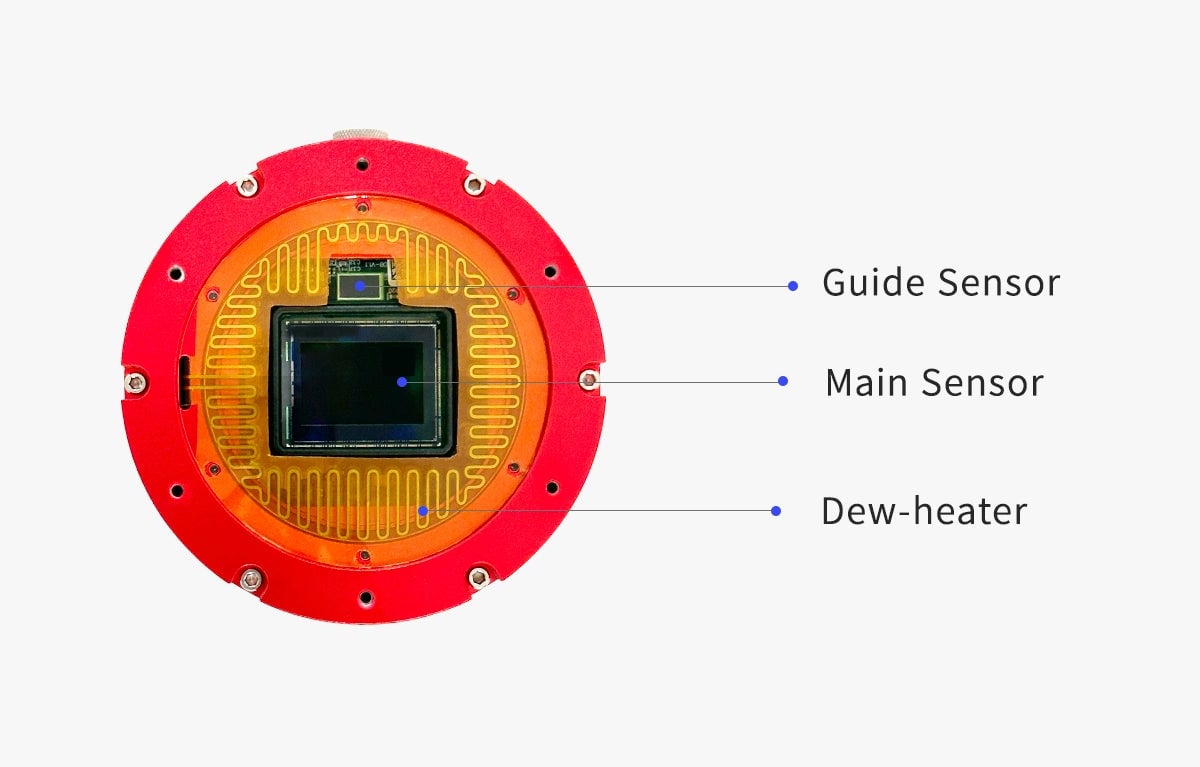

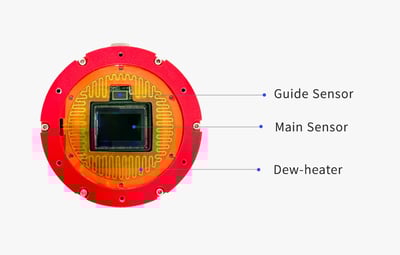

The ASI2600MM Duo combines ZWO's best-selling monochrome camera technology with a built-in guide camera in one compact body. It features a Sony IMX571 sensor with 14 stops dynamic range and 3.76um square pixels, delivering over 91% peak quantum efficiency for monochrome imaging. The two-stage TEC cooling system reduces sensor temperature by 30-35 degrees Celsius below ambient, significantly lowering noise during extended exposures. With zero-amp glow circuitry and a built-in guide sensor, this camera eliminates the need for separate guide scope or off-axis guider setups, simplifying your astrophotography rig.
Specifications
| Guide Sensor Pixel Size | 4 μm |
| Guide Sensor Readout Noise | 0.6 |
| Full Well Capacity | 73 |
| Sensor diagonal | 28.3 |
| Anti-dew Heater Power | 5 W |
| Memory Buffer | 512 |
| Sensor type | Sony IMX571 CMOS (Main), SC2210 CMOS (Guide) |
| ADC | 16-bit native |
| Guide Sensor Size | 7.68 x 4.32 mm |
| Guide Sensor Peak Quantum Efficiency | 92% |
| Maximum Frame Rate (RAW 8 mode) | 15 fps |

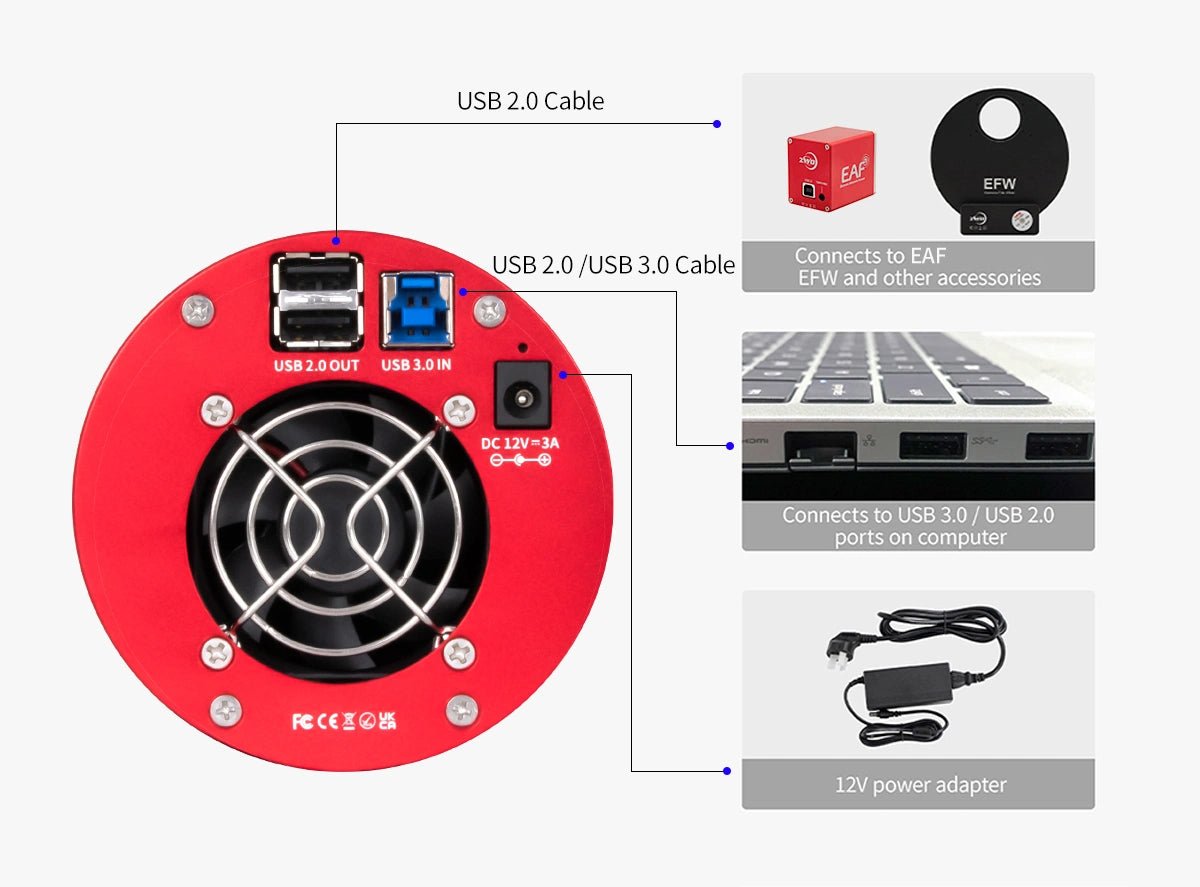

| Interface | USB 3.0 |
| Pixel Size | 3.76 μm |
| Guide Sensor Resolution | 2 |
| Peak Quantum Efficiency | 91% |
| Readout Noise | 1 |
| Sensor Size | 23.5 mm |
| TEC Cooling Capability | 30 °C |
| Main Sensor Resolution | 26 MP |
| Dynamic Range | 14 |
| Guide Sensor Full Well Capacity | 8780 |
| Sensor Format | APS-C |
| Guide Sensor Array | 1920 x 1080 |
| Image Circle | 44 mm |
