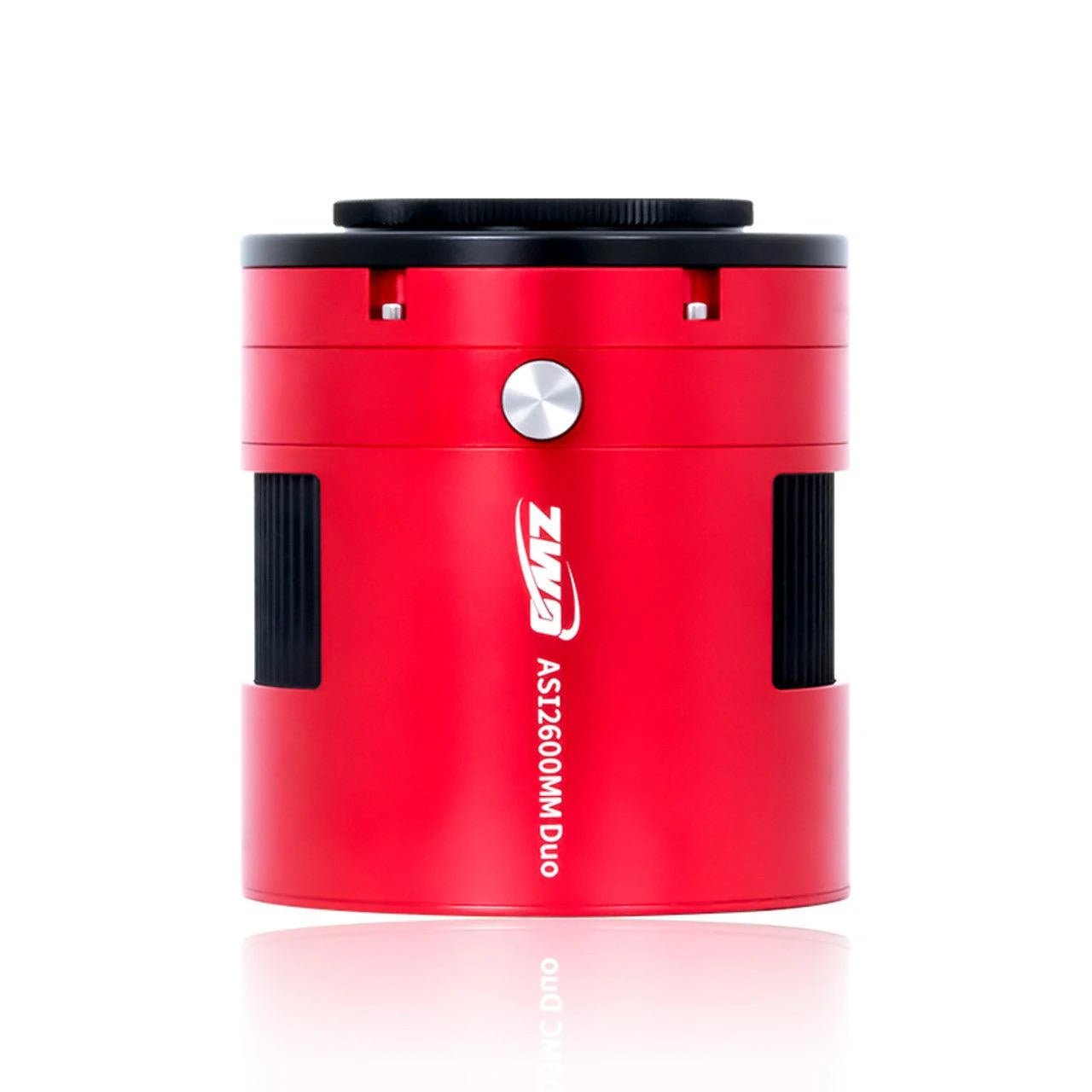

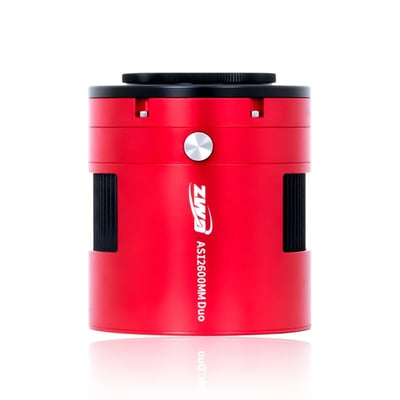

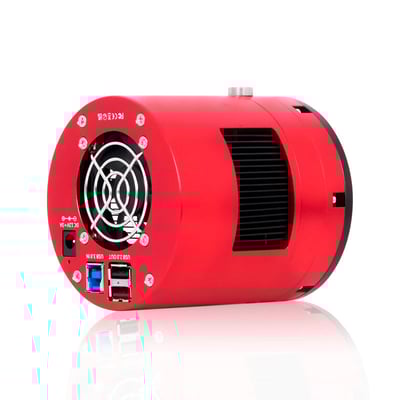

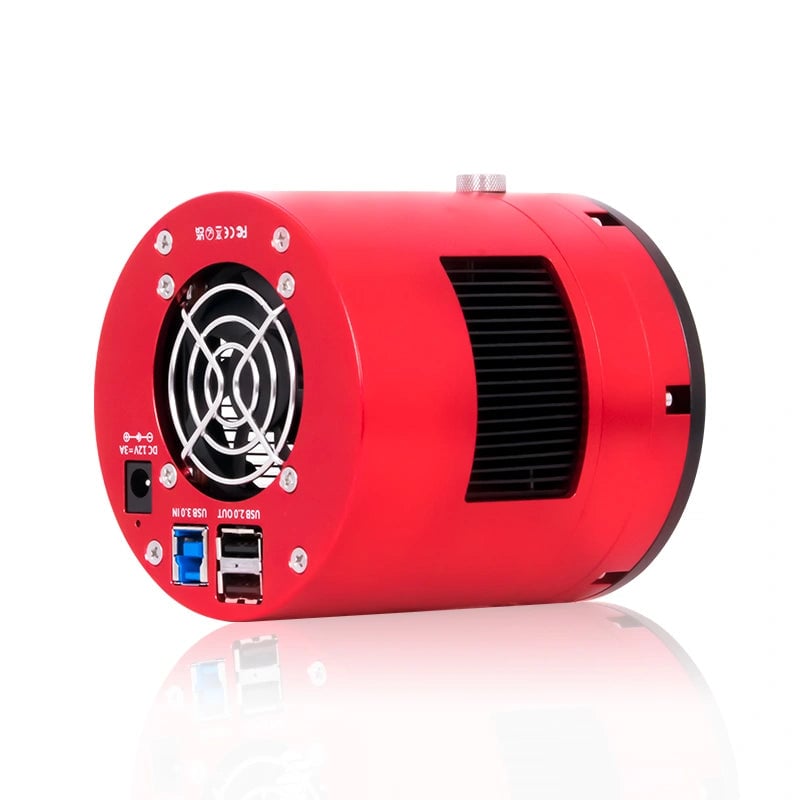

ASI2600MM-DUO
ZWO
From $2,299.00
3 stores
The ZWO ASI2600MM Duo is a revolutionary new camera that features an ultra-sensitive APS-C monochrome sensor plus a built-in guide sensor, ideal for deep-sky photography using telescopes. The main Sony IMX571 sensor delivers 26 megapixels with 3.76µm pixels, 16-bit ADC, 14 stops of dynamic range, and readout noise as low as 1.0e. The monochrome sensor features peak quantum efficiency over 91%, while two-stage TEC cooling reduces sensor temperature by 30-35 degrees Celsius below ambient for clean long-exposure imaging. With an integrated guide sensor built in, this camera eliminates the need for a separate guide scope or off-axis guider, streamlining your astrophotography setup.
High Point Scientific
ZWO ASI2600MM-DUO Monochrome Astronomy Camera
Ships to US only
$2,299.00
Astronomy Plus
ASI2600MM DUO Cooled Camera with Guiding Sensor (ASI2600MM-DUO)
Worldwide shipping
CA$3,239.00
~$2,367.08
Astroshop.eu
Camera ASI 2600 MM DUO Mono
Worldwide shipping
€2,690.00
~$3,171.23
Specifications
| Full Well Capacity Standard | 50 |
| Pixel Size | 3.76 μm |
| ADC Bit Depth | 16-bit |
| Anti-dew Heater Power | 5 W |
| Memory Buffer | 512 |
| Sensor type | Monochrome back-illuminated CMOS |
| Max Frame Rate RAW8 | 15 fps |
| Guide Sensor Full Well Capacity | 8.78 |
| Main Sensor Type | Sony IMX571 |
| Sensor Size Height | 15.7 mm |
| Readout Noise | 1 |
| Guide Sensor Array | 1920x1080 |
| Power Supply Required | 12V DC, 3A minimum |
| Sensor Format | APS-C |
| Dynamic Range | 14 |
| Full Well Capacity Extended | 73 |
| Guide Sensor Type | SC2210 |
| Additional USB Ports | 2x USB 2.0 |
| Guide Sensor Readout Noise | 0.6 |
| Technology | Sony STARVIS |
| Sensor Size Width | 23.5 mm |
| Quantum Efficiency Peak | 91% |
| Guide Sensor Resolution | 2 |
| Amp Glow | Zero |
| Resolution | 26″ |
| Sensor diagonal | 28.3 |
| TEC Cooling Temperature Reduction | 30 °C |
| Guide Sensor Pixel Size | 4 μm |
| Guide Sensor Quantum Efficiency Peak | 92% |
| Data Interface | USB 3.0 |
| Cooling System | Two-stage TEC |
