ASI2600MC DUO
ZWO
From $1,619.00
5 stores

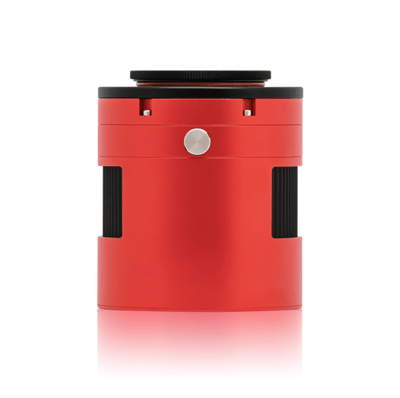

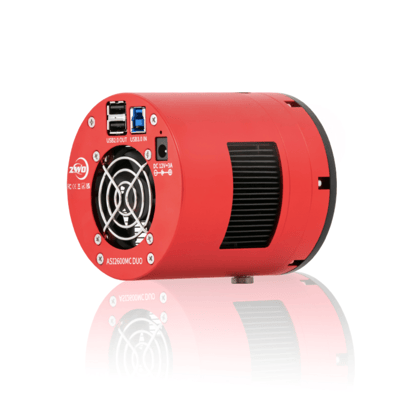

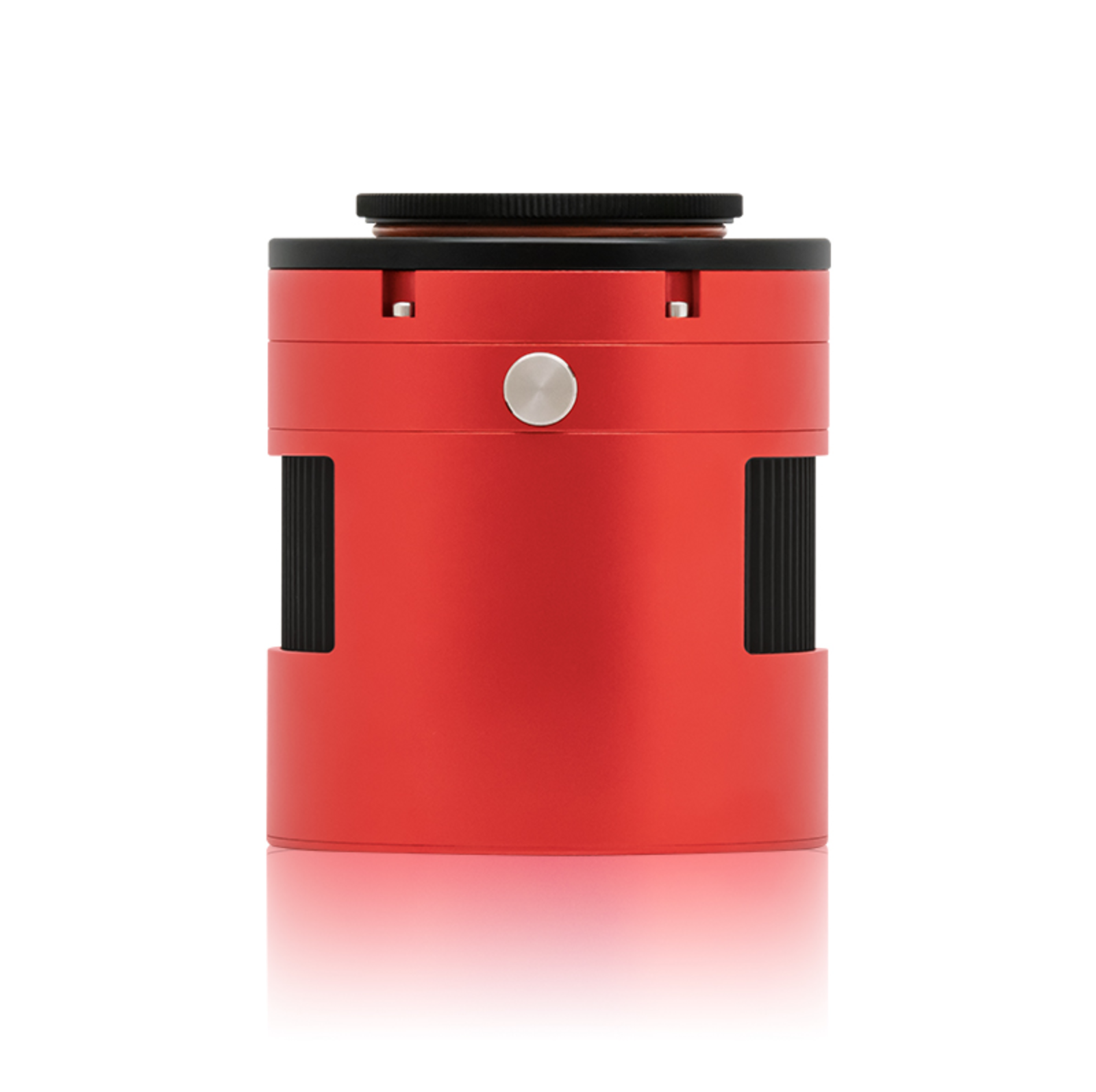

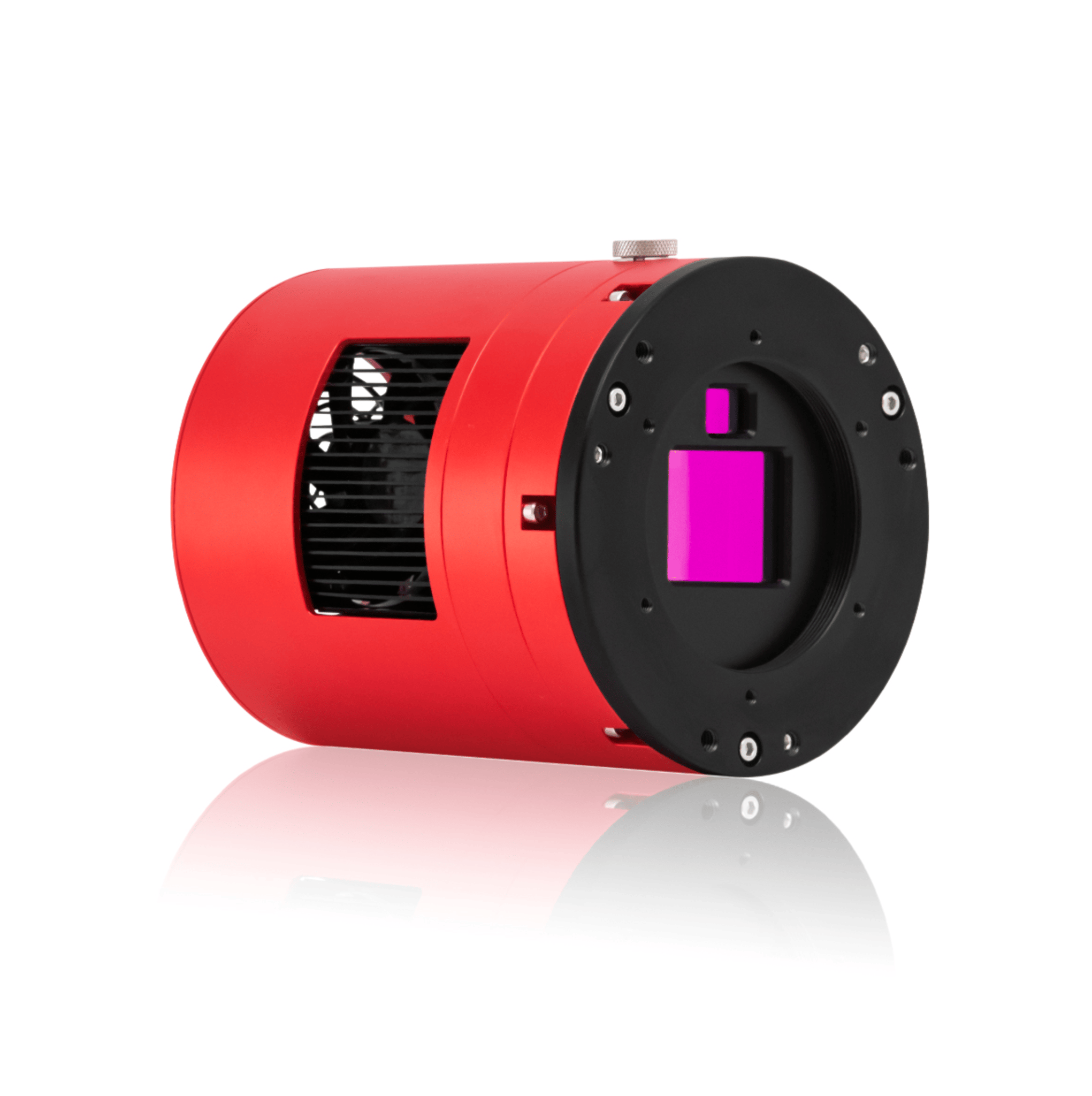

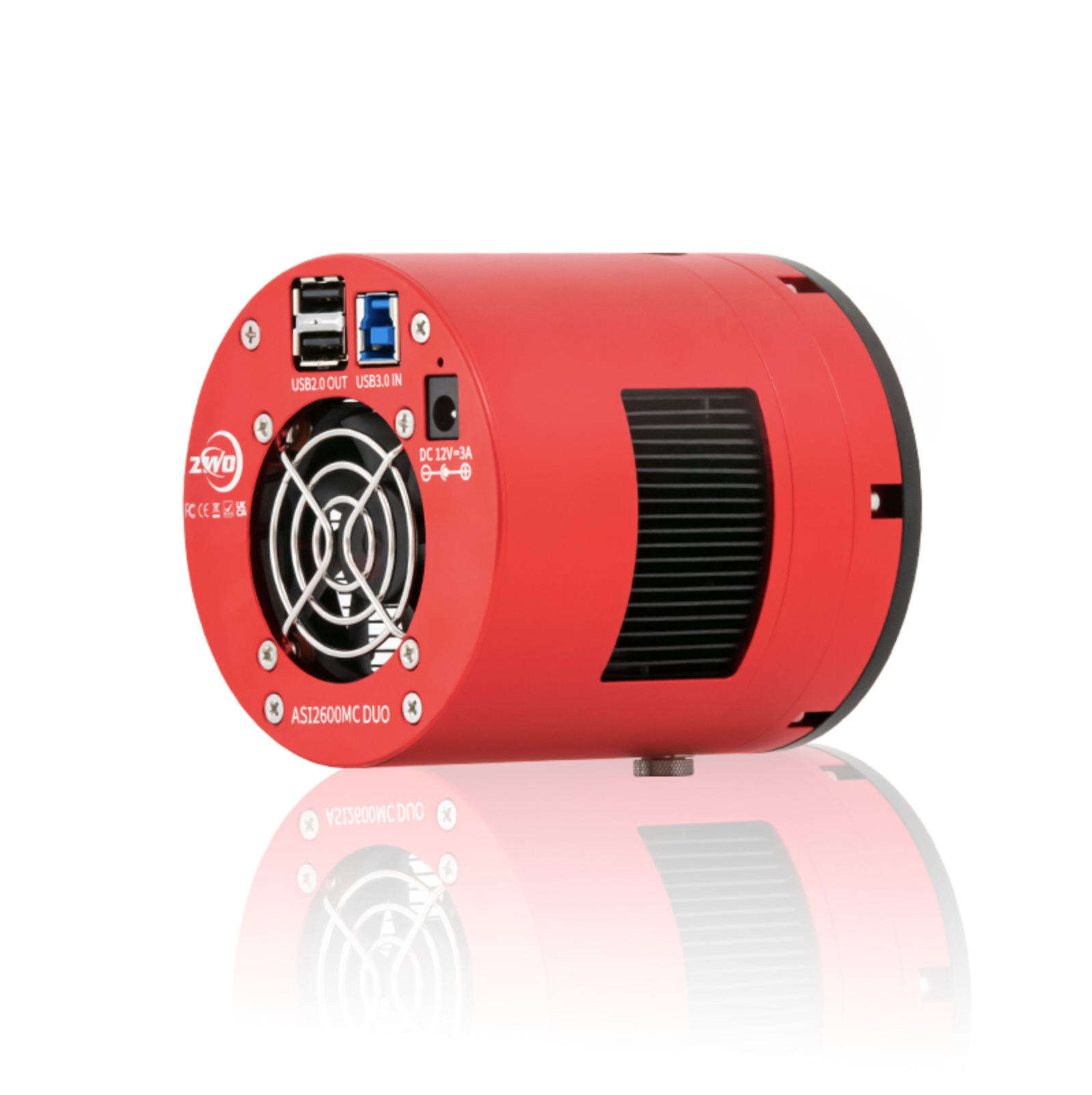

The ZWO ASI2600MC Duo integrates a 26-megapixel imaging sensor with a built-in guide camera into a single compact body, eliminating the need for a separate guide scope or off-axis guider. The main sensor is the Sony IMX571 with native 16-bit ADC, 14 stops dynamic range, 3.76µm square pixels, readout noise as low as 1.0e, and full well capacity of 73ke. The camera features zero-amp glow circuitry, eliminating unwanted infrared light even during high-gain, long-exposure imaging. With two-stage TEC cooling, the sensor temperature can be lowered more than 30-35 degrees Celsius below ambient, greatly reducing dark current and sensor noise during extended exposures.
High Point Scientific
ZWO ASI2600MC-DUO Astronomy Camera with Imaging & Guiding Sensors
Ships to US only
$1,619.00
Astronomics
ASI2600MC Duo USB 3.0 Cooled Color Astronomy Imaging Camera with Built In Guider
$1,619.10
Astronomy Plus
ASI2600MC DUO Cooled Camera with Guiding Sensor (ASI2600MC-DUO)
Worldwide shipping
CA$2,284.95
~$1,659.66
Starizona
ASI 2600MC-DUO Color Camera
Worldwide shipping
$2,299.00
Astroshop.eu
Camera ASI 2600 MC DUO Color
Worldwide shipping
€1,990.00
~$2,347.26
Specifications
| Sensor type | CMOS Chip (Sony IMX571) |
| Sensor diagonal | 28.3 |
| Guide Sensor Type | 1/1.8 inch |
| Guide Sensor Resolution | 1920x1080 |
| ADC Bit Depth | 16 |
| Cooling Temperature Reduction | 30 °C |
| Guide Sensor Array Depth | 8780 |
| Resolution | 26″ |
| Full Well Capacity | 73 |
| Weight | 0.7 lb |
| Readout Noise | 1 |
| Guide Sensor Pixel Size | 4 μm |
| Interface | USB 3.0 |
| Maximum Frame Rate (RAW 8) | 15 fps |
| Dynamic Range | 14 |
| Anti-dew Heater Power | 5 W |
| Memory Buffer | 512 |
| Color Type | Color |
| Pixel Size | 3.76 μm |
| Peak Quantum Efficiency | 80% |
| Guide Sensor | SC2210 |
| Sensor Dimensions | 23.5 |
