ASI183MC Pro
ZWO
From $799.00
2 stores

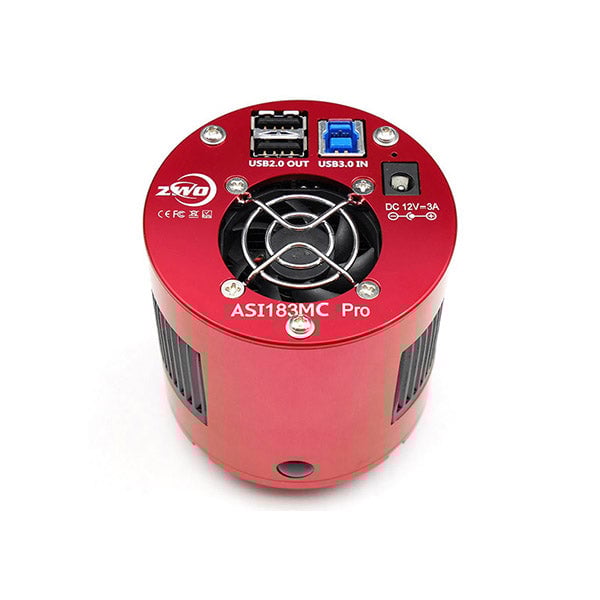

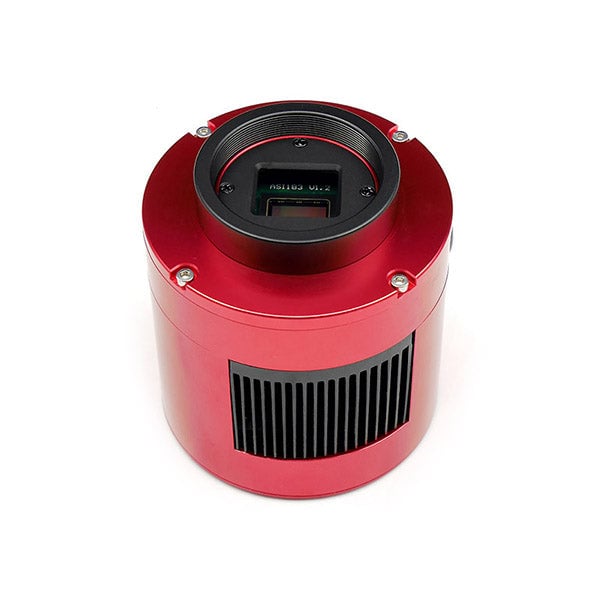

The ZWO ASI183MC Pro USB 3.0 is a high-resolution cooled color astronomy camera equipped with a Sony IMX183 Exmor CMOS sensor achieving 20.2MP resolution with low read noise. The camera's two-stage TEC cooling system lowers the sensor temperature to more than 95°F (approximately 40-45°C) below ambient temperature, greatly reducing dark current and sensor noise during extended exposures. Featuring a frame rate of up to 19 fps at full resolution with high-speed readout, the camera is well-suited for solar and lunar imaging, live viewing for electronic-assisted astronomy, and lucky imaging of double stars and small objects. The camera includes a 256MB DDR3 buffer for stable data transfer and reduced amp glow, features an attractive red anodized aluminum body, and weighs only 410g (14.5 oz).
Specifications
| Camera Body Diameter | 78 mm |
| Resolution | 20.18″ |
| Memory Buffer | 256 |
| Pixel Array | 5496 x 3672 |
| Peak Quantum Efficiency | 84% |
| Cooling Type | Two-stage TEC |
| Color Type | Color (Bayer pattern RGGB) |
| Interface | USB 3.0, USB 2.0 Hub |
| Shutter Type | Rolling shutter |

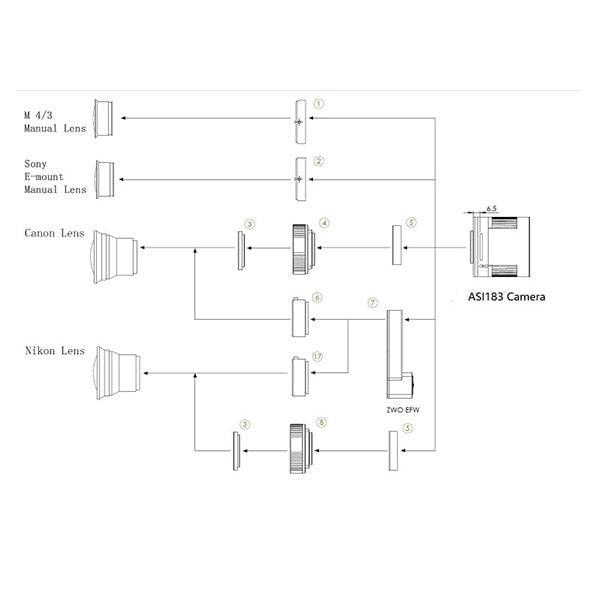

| Back Focus Distance | 6.5 mm |
| Sensor diagonal | 15.9 |
| ADC | 12-bit/10-bit |
| Pixel Size | 2.4 μm |

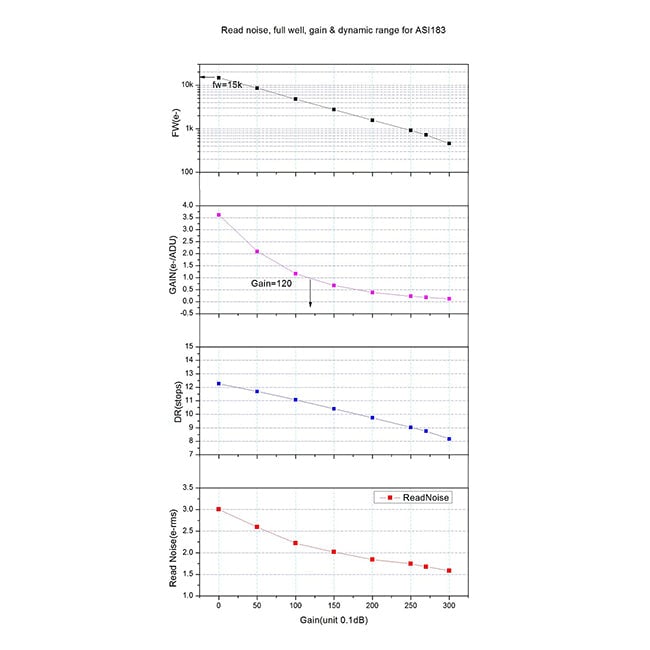

| Read Noise | 1.6 |
| Operating Temperature Range | -5 °C |
| Sensor type | Sony IMX183CQJ-J back-illuminated CMOS |
| Cooling Performance | 40 °C |
| Weight | 410 lb |
| Sensor Size | 13.2 mm |
| Full Well Capacity | 15000 |
| Camera Power Consumption | 650 mAh |
| Resolution Unit | MP |
| Frame Rate (Full Resolution, 12-bit) | 19 fps |
| Dynamic Range | 12 |
| Cooler Power Requirement | 12V @ 3A |
