5-III 174C Uncooled Color CMOS Telescope Camera
QHY
From $599.00
2 stores
In stock

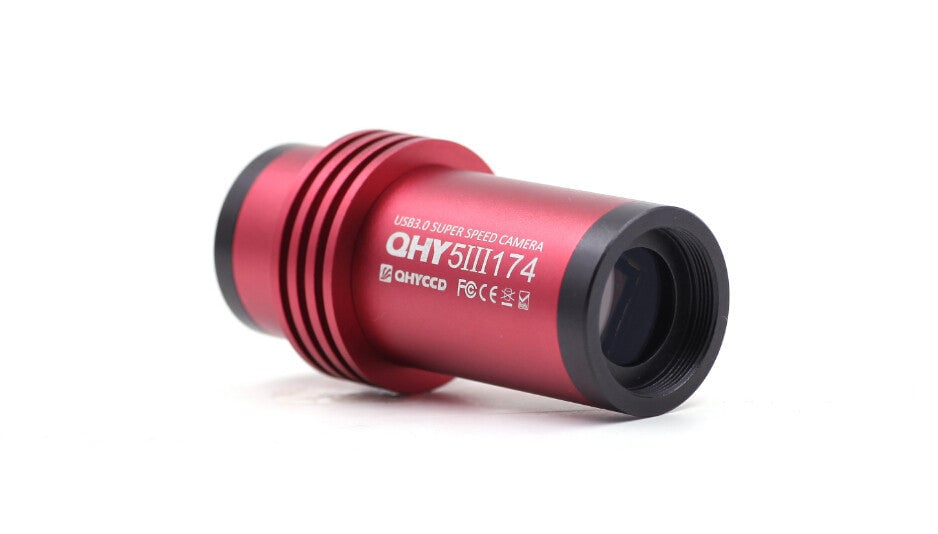

The QHY5III 174C is the first in QHY's new line of QHY5III series CMOS USB3.0 cameras, designed to be excellent for Lunar, Planetary, and Solar imaging. It features a 1/1.2-inch, 2.3 Megapixel SONY Exmore IMX174 CMOS sensor with global shutter, large 5.6um pixel size and high quantum efficiency of 78%. This camera produces a high frame rate with the USB 3.0 interface, delivering 138 frames per second at full resolution, up to 490 FPS at selected ROI, making it ideal for capturing fast planetary motion and lunar detail.
Specifications
| Pixel Size | 5.86 μm |
| Interface | USB 3.0 |
| Dynamic Range | 12 stops |
| Mount type | 1.25 inch eyepiece |
| Weight | 0.19 lb |
| Full Well | 32000 |
| Sensor Size | 1 mm |
| Full Resolution Frame Rate | 138 fps |
| Cooling | Uncooled |
| Sensor type | Sony IMX174 Exmor CMOS |
| Color Type | Color |
| Shutter Type | Global |
| Guide Port Connector | 5-pin LEMO |
| Pixel Array | 1920 x 1200 |
| Quantum Efficiency | 78% |
| ADC | 12 bit |
| Read Noise | 5.3 |
| Resolution | 2.3″ |
| Maximum Frame Rate | 490 fps |
| Back Focus | 11 mm |
