5-III 462C Color and NIR CMOS Telescope Camera
QHY
From $249.00
2 stores
In stock

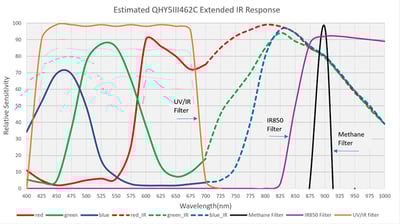

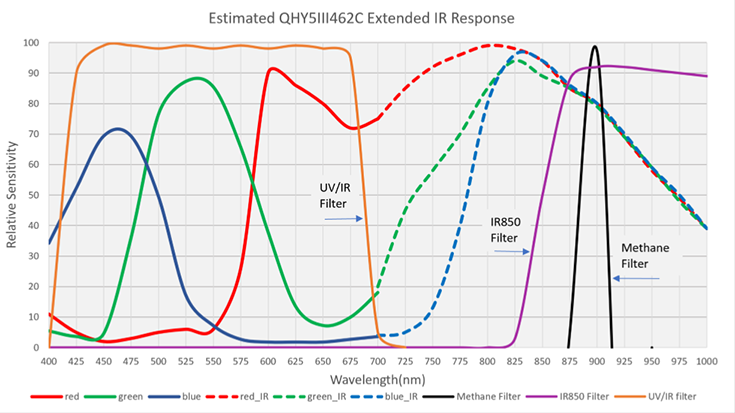

The QHY5III462C uses the latest (6th Generation) Sony 2.1 MP IMX462 CMOS sensor, offering exceptional performance for planetary and guiding applications. This camera can image in visible light only, NIR light only, or combined visible and NIR, with sensitivity at methane (880 nm) comparable to visible wavelengths. The back-illuminated sensor features sHGC technology for extremely low read noise (less than one electron) at high gain, making it ideal for stacking hundreds or thousands of short planetary images. The camera includes two 1.25-inch filters for versatile imaging in both color and near-infrared modes.
Specifications
| Pixel Array | 1920 x 1080 |
| Frame Rate | 135 fps |
| Resolution | 2.1″ |
| Color Type | Color with NIR Enhanced |
| Sensor | Sony IMX462 STARVIS CMOS |
| Back-illuminated | ✓ |
| Flash Memory | 512 |
| Exposure Time Range | 7 us to 900 sec |
| Telescope Interface | 1.25 inch |
| NIR Sensitivity Range | 850 |
| Power Source | USB 3.0 |
| Output Bit Depth | 8 and 16 |
| Guide Port | ✓ |
| Shutter Type | Electronic Rolling Shutter |
| Back Focal Distance | 12 mm |
| Sensor Format | 1/3 inch |
| AD Sample Depth | 12 |
| Interface | USB 3.0 |
| Weight | 88 lb |
| Pixel Size | 2.9 μm |
| Read Noise | 0.5 |
