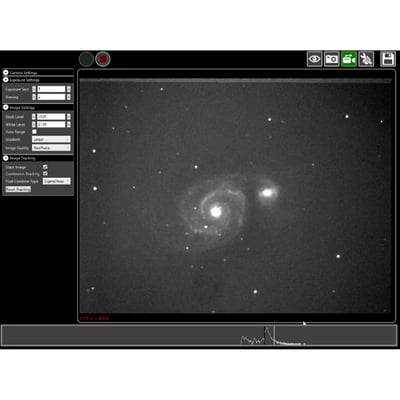

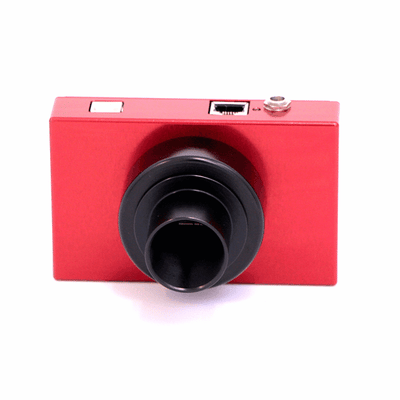

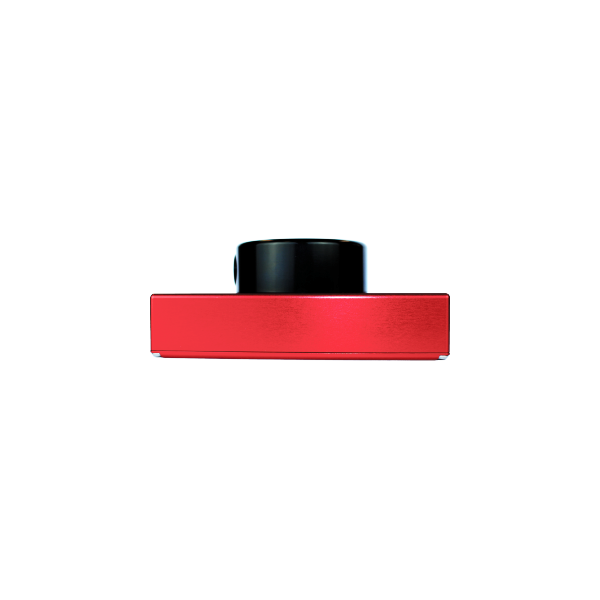

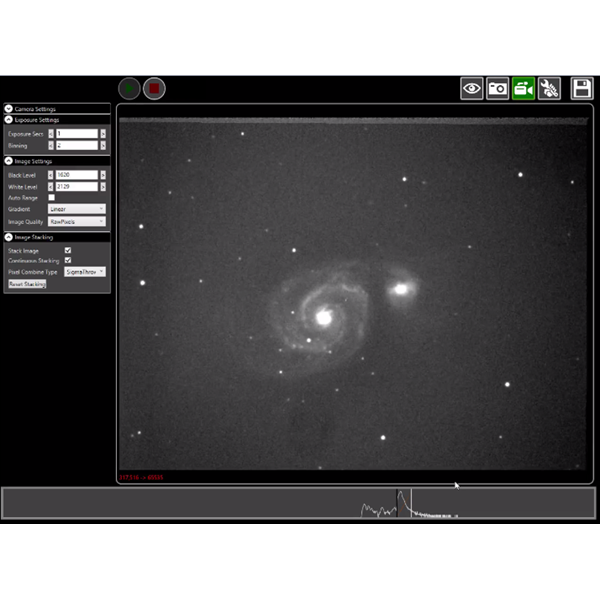

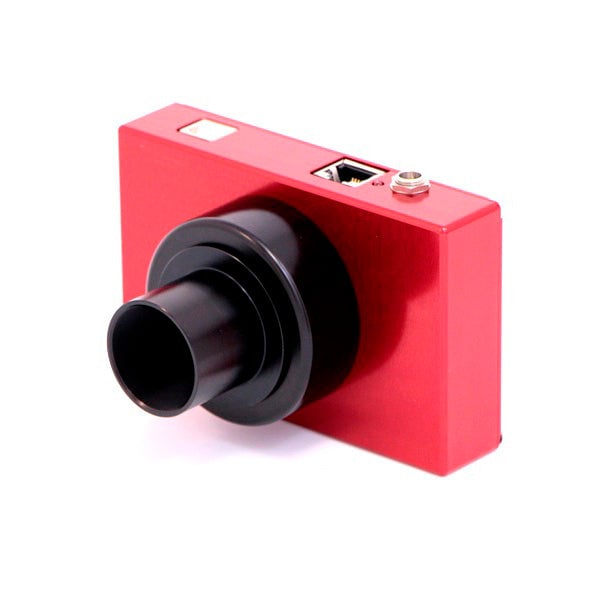

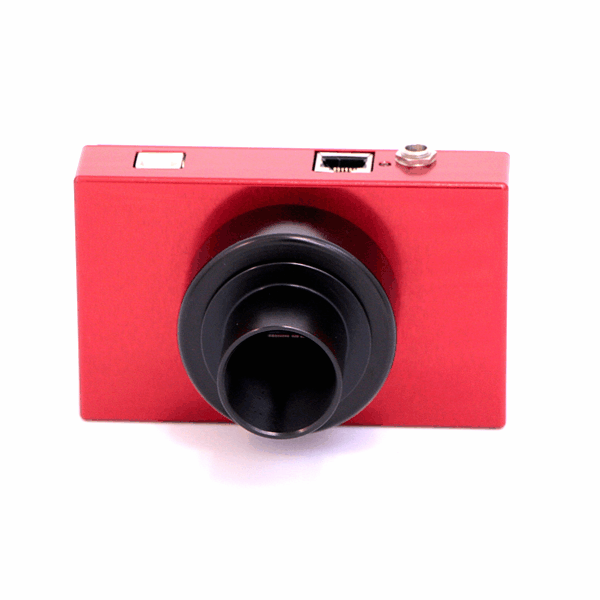

The ATIK Infinity Color CCD is a video astronomy camera featuring a sensitive Sony ICX825 sensor and custom built-in software that simplifies tracking, adjusts for field rotation, and enables real-time stacking. No high-end equatorial mount or polar alignment is needed, and its slim, rectangular design ensures compatibility with various telescopes including fork-mounted scopes. Perfect for public outreach and education, it can also serve as an exceptional autoguider, allowing advanced users to capture wide-field astrophotography while using it as a guide camera. Unlike scaled-up guide cameras, the Infinity is based on a high-end 16-bit camera originally developed for microscopy applications, making it a no-compromise solution for capturing high-quality images at live view frame rates.
| Sensor type | Sony ICX825 CCD Color |
| Horizontal Resolution | 1392 |
| Vertical Resolution | 1040 |
| Pixel Size | 6.45 μm |
| ADC | 16 bit |
| Readout Noise | 6 |
| Frame Rate | 2 fps |
| Maximum Exposure Time | 120 s |
| Minimum Exposure Time | 1 s |
| Cooling | Passive |
| Weight | 340 lb |
| Interface | USB 2.0 High Speed and ST4 Guide Port |
| Back Focus Distance | 13 mm |
| Sensor Size | 9 mm |
| Power Supply | 12 V |
| Quantum Efficiency Peak | 73% |
| Quantum Efficiency Peak Wavelength | 525 |
| Download Speed | 0.3 s |
