414EX Color
ATIK
From $1,574.00
3 stores
In stock

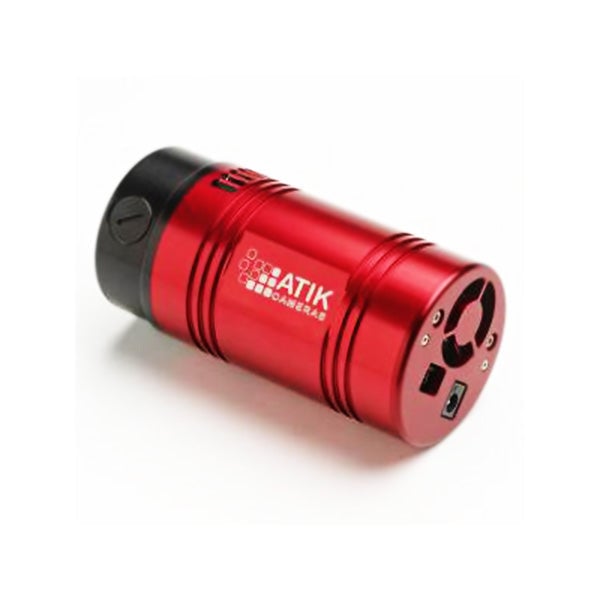

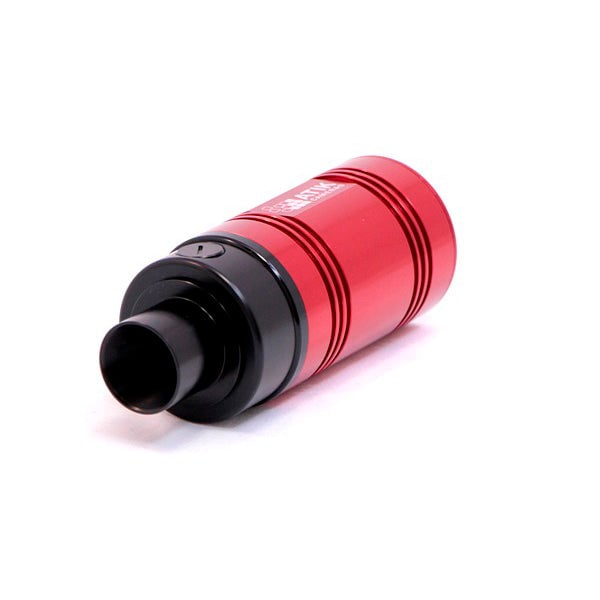

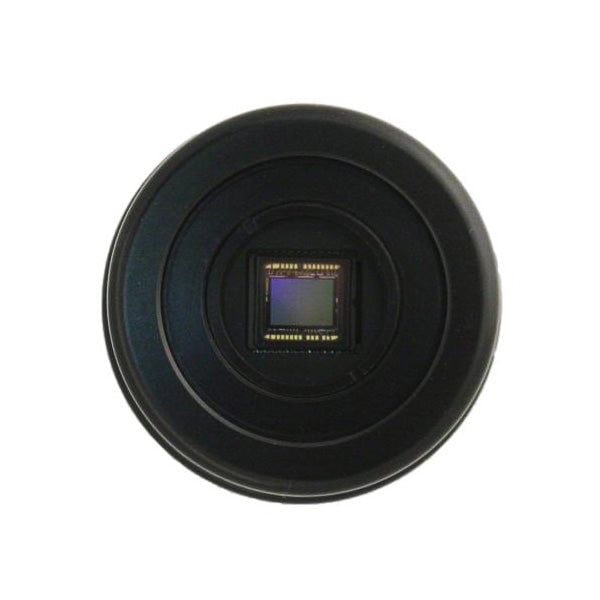

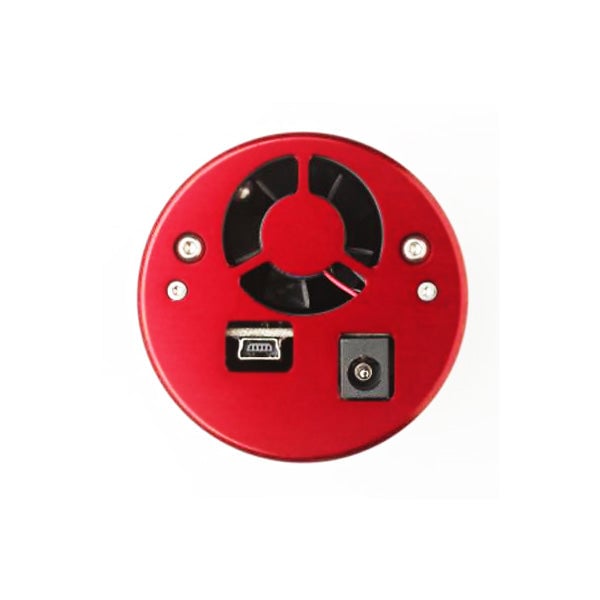

The ATIK 414EX Color is a high-sensitivity cooled CCD camera featuring the Sony ICX825 sensor with 1.45 megapixels, ideal for color deep-sky astrophotography and narrowband imaging. With 6.45 µm pixels and exceptional quantum efficiency using EXview HAD CCD II technology, it offers outstanding sensitivity across a broad range of wavelengths while maintaining remarkably low read noise for consistent calibration. The compact, lightweight design with regulated thermoelectric cooling (-30°C below ambient) makes it suitable for both traditional telescopes and Hyperstar/Fastar configurations, while the low power requirements (12V, 1A) enable extended field imaging sessions.
Specifications
| Sensor type | CCD |
| Sensor | Sony ICX825 |
| Sensor pixel size | 6.45 |
| Sensor resolution | 1.45 |
| Sensor diagonal | 11 |
| Sensor read noise | 5 |
| Sensor Dimensions | 8.98 |
| Power Consumption | 1 W |
| Interface | Mini-USB 2.0 High Speed |
| Weight | 0.88 lb |
| ADC Resolution | 16 |
| Maximum Temperature Reduction | -30 °C |
| Minimum Exposure Time | 1 s |
| Power Supply | 12 V |
| Read Noise | 5 |
| Cooling | Thermoelectric set point |
