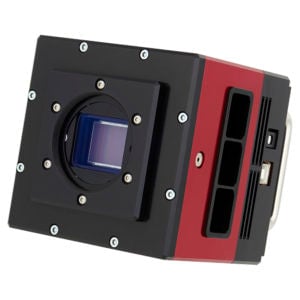

Atik 16200
ATIK
From $4,142.00
2 stores
In stock
The ATIK 16200 is a large-format APS-H CCD camera featuring the KAF-16200 sensor with 16.2 megapixels, delivering exceptional performance for deep-sky astrophotography and widefield imaging. With a 35mm diagonal sensor, 6-micrometer pixels, and dual-stage Peltier cooling capable of reaching -50°C below ambient temperature, this camera provides outstanding low-noise imaging across a wide range of telescopes. The sealed, argon-purged chamber prevents condensation, while the new blade shutter and lightweight cube design ensure reliable operation and easy integration into astronomical setups.
Specifications
| Pixel Array | 4500 x 3600 |
| Typical Cooling Temperature | -45 °C |
| Filter Compatibility | 2 inch |
| Includes Artemis Capture Software | ✓ |
| Back Focus (with EFW3) | 41.5 mm |
| Sensor Format | APS-H |
| Quantum Efficiency | 60% |
| Power Consumption | 2.5 W |
| Sensor type | KAF-16200 CCD |
| Pixel Size | 6 μm |
| Weight | 1.3 lb |
| Telescope Connector | M54x0.75 |
| Sensor diagonal | 35 |
| Cooling Delta | -50 °C |
| Interface | USB 2.0 |
| Back Focus (direct attachment) | 34.5 mm |
| Resolution | 16.2″ |
| Read Noise | 9 |
| Power Supply | 12 V |
| ASCOM Driver Included | ✓ |
