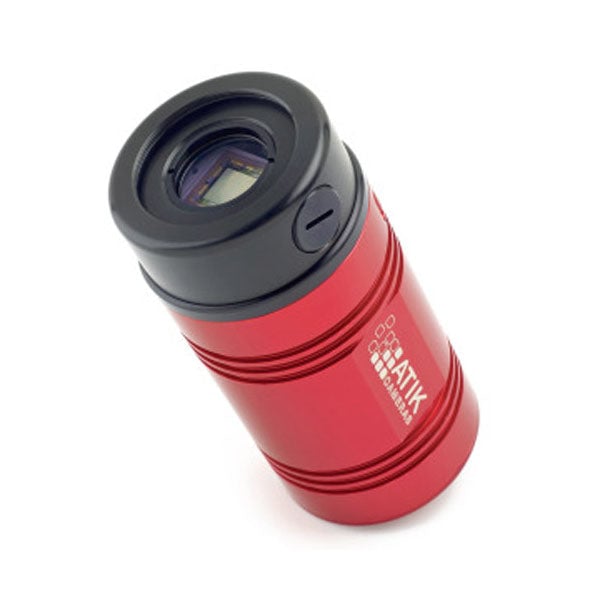

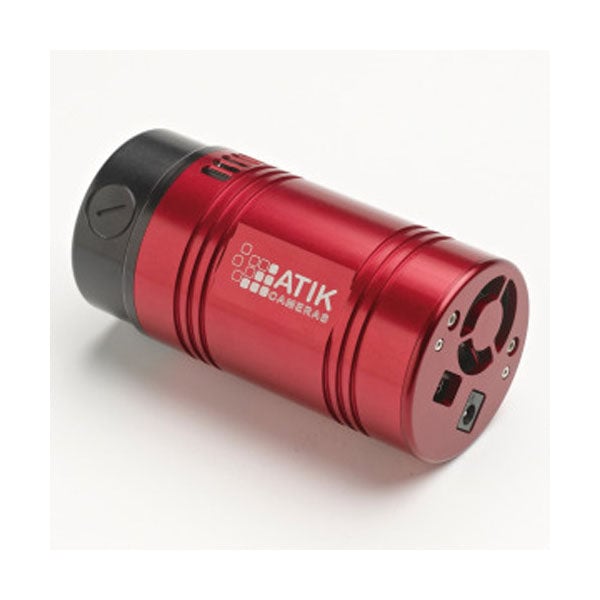

Atik 490EX Color CCD Camera - ATK0111

ATIK

From $2,891.00

2 stores

In stock

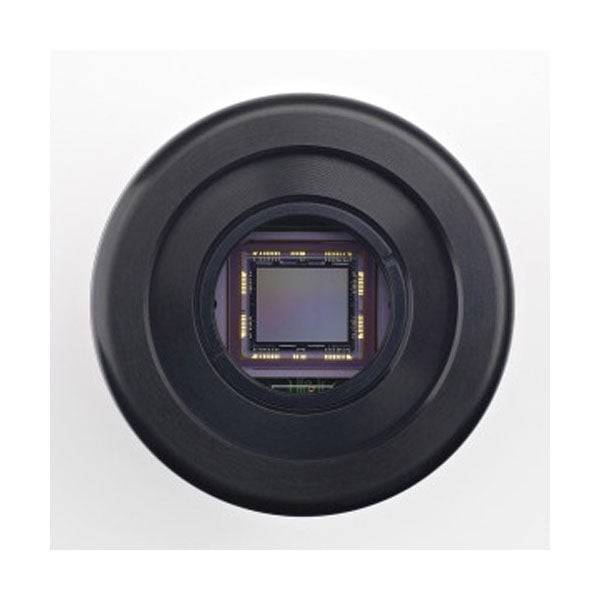

The Atik 490EX Color CCD Camera is Atik's highest resolution model, featuring Sony EXview HAD CCD II technology with excellent Quantum Efficiency, low noise, and superior thermal management. This camera combines high resolution imaging with the incredible sensitivity of the Sony ICX814 sensor and the versatility of the 4-Series design, with small 3.69 µm pixels ideal for short-mid focal length telescopes while performing at multiple binning levels. It is an ideal match for Hyperstar systems and most small to midsize telescopes used by astrophotographers, with excellent sensitivity and the possibility of binning while maintaining high pixel counts, making it one of the best cameras for deep-sky astrophotography. The Atik 490EX fully supports 1.25" filters down to f/2, so you won't need to replace any of your current investment in wheel or filters.

Specifications

Sensor type Sony ICX814 EXview HAD CCD II
Resolution 9.2″
Pixel Array 3379 x 2703
Pixel Size 3.69 μm
Sensor Size 12.5 mm
Read Noise 5
Power Supply 12 V
Filter Support 1.25 inch filters down to f/2
Camera Diameter 60 mm

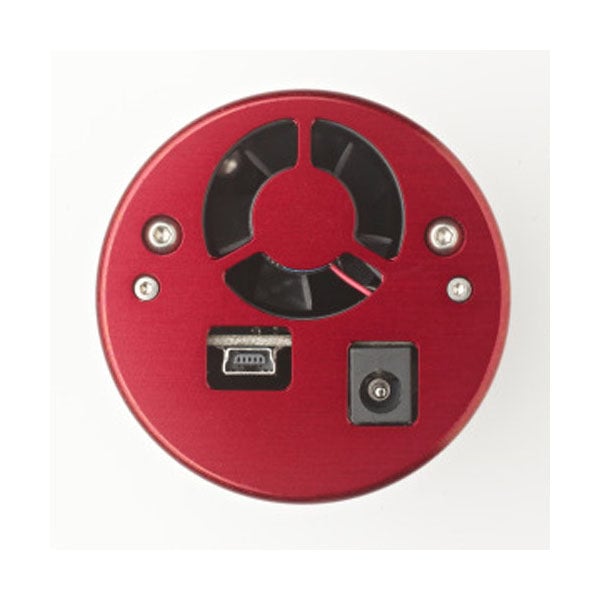

Connection Type USB 2.0 Mini-B
Color Type One-shot color
Cooling Peltier regulated set-point cooling
Bit Depth 16
Camera Length 122 mm
Weight 380 lb
