12-Inch f/8 Ritchey Chretien Reflecting OTA Telescope

iOptron

From $4,158.00

4 stores

In stock

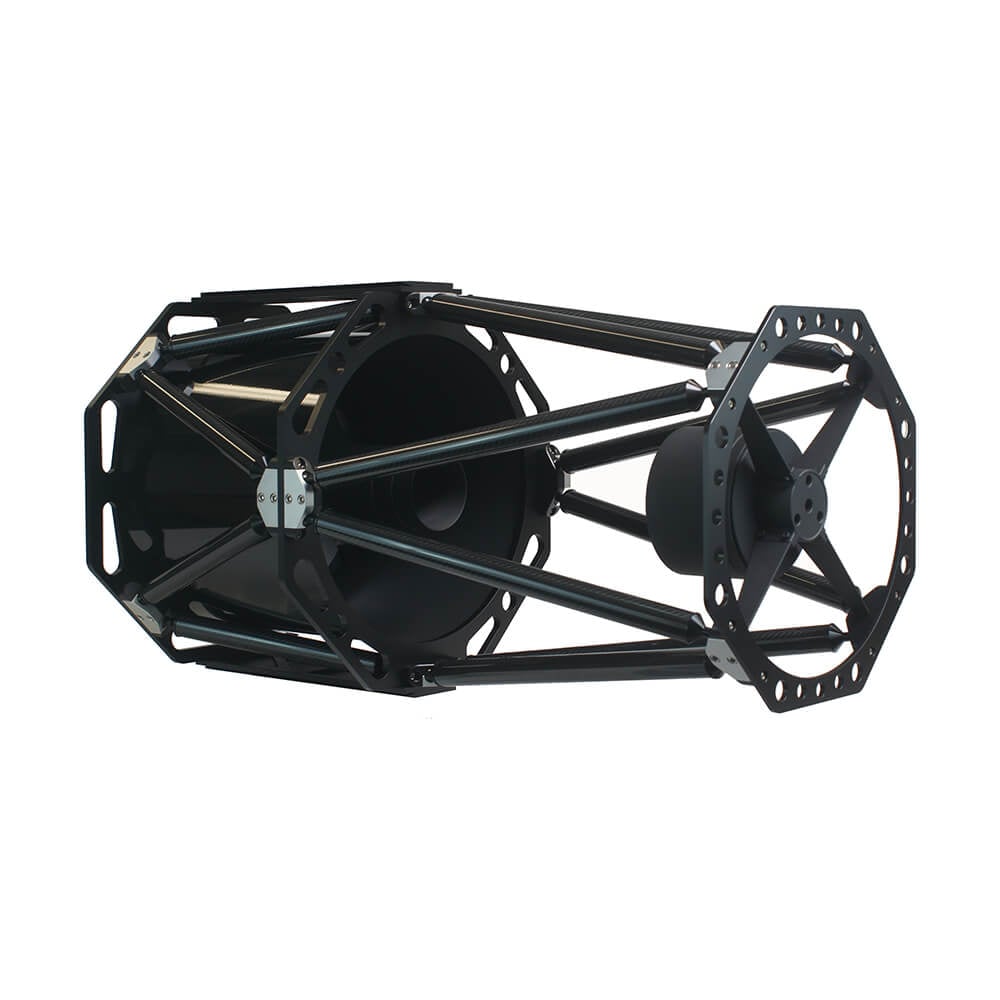

Designed for today's astro-imager, the iOptron 12-Inch f/8 Ritchey Chretien Reflecting OTA Telescope delivers sharp clear images from one edge to the other. This truss-tube astrograph features low thermal expansion quartz primary and secondary mirrors with highly reflective dielectric coatings, and the RC optical design delivers coma, spherical and chromatic aberration-free results, perfect for color and monochrome imaging. With a carbon fiber truss backbone holding the optics firmly in place while keeping weight minimal, its open-air design results in rapid cooling, reducing wait time before use. A fixed position primary mirror eliminates image shift that occurs when focusing with other telescope designs.

Specifications

Focuser Drawtube Size 3 in
Cooling Fans 3
Mirror Coating Reflectivity 96%
Focuser Speed Ratio 10:1
Minimum Mount Payload Capacity Required 44 lb
Focal length 2436 mm
Tube Type Carbon fiber truss tube
Optical design Ritchey-Chretien with hyperbolic mirrors
Focal ratio f/8
Primary Mirror Specification 1/12th wave or better
Focuser Type Dual-speed linear bearing Crayford
Dovetail Mount Plate Type Losmandy-style long dovetail
Aperture 304 mm
Primary Mirror Type Low-expansion quartz with dielectric coating
Secondary Mirror Type Low-expansion quartz with dielectric coating
iOptron 12-Inch f/8 Ritchey Chretien Reflecting OTA Telescope
