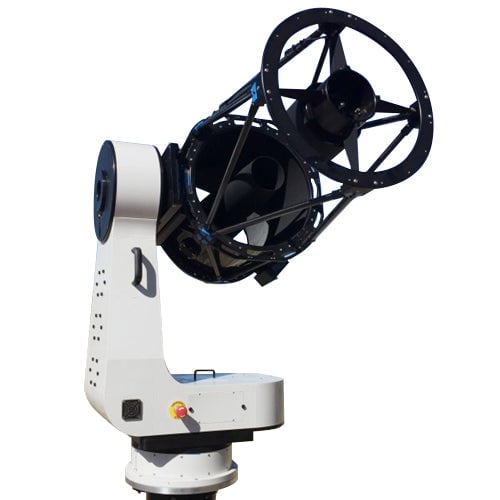

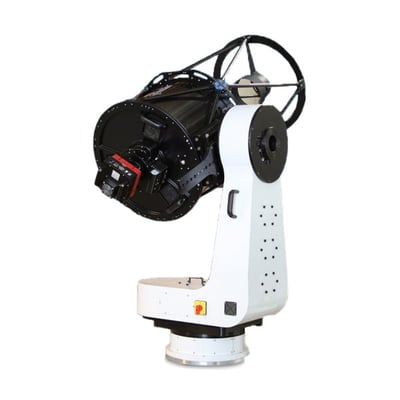

CDK500 (20-inch) Telescope System
PlaneWave
From $54,000.00
2 stores
In stock

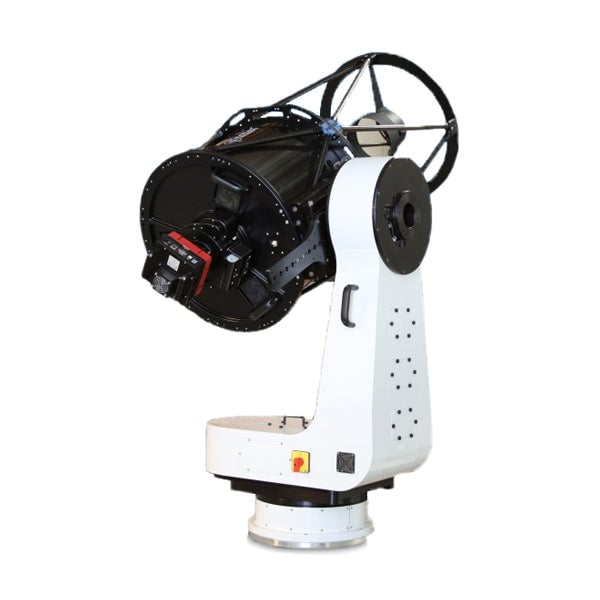

The PlaneWave CDK500 combines a 20-inch Corrected Dall-Kirkham optical tube with the L-500 direct-drive mount, creating a premium system designed for serious astrophotographers and research applications. The CDK20 features fused silica optics and a dual carbon-fiber truss design that delivers a flat, coma-free field across a 52mm image circle with exceptional optical performance for large-format imaging. The L-500 mount employs direct-drive motors on each axis with high-resolution encoders, providing zero backlash, zero periodic error, and sidereal tracking accuracy of less than 0.30 arcseconds RMS, making it ideal for both visual observation and long-exposure astrophotography.
Specifications
| Mount Configurations | Alt-Azimuth or Equatorial |
| Dovetail Size | 8 |
| Focal length | 3454 mm |
| Optical Tube Weight | 64 kg |
| Cooling Fans | 3 |
| Focal ratio | f/6.8 |
| Max Slew Speed | 50° |
| Back Focus | 223 mm |
| Tube Material | Carbon Fiber |
| Tracking Accuracy | 0.30′ |
| Aperture | 20 mm |
| Optical design | Corrected Dall-Kirkham |
| Secondary Mirror Material | Fused Silica |
| Mount type | L-500 Direct-Drive |
| Field of View | 52° |
| Primary Mirror Material | Fused Silica |
| Encoder Resolution | 0.069″ |
