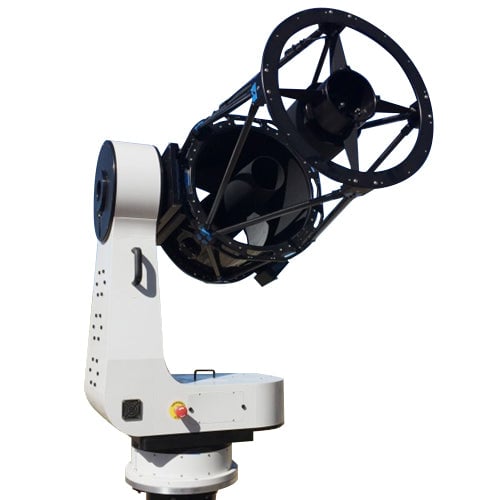

CDK400 (17-inch) Telescope System
PlaneWave
From $42,500.00
2 stores
The PlaneWave CDK400 is a professional-grade 17-inch Corrected Dall-Kirkham astrograph telescope system designed for deep-sky imaging and astronomical research. This complete observatory package combines the CDK17 optical tube with PlaneWave's L-500 direct-drive mount, delivering exceptional off-axis optical performance with zero coma, astigmatism, and field curvature across a flat 70mm field of view. The system features fused silica mirrors, a carbon-fiber truss design with integrated cooling fans, and the L-500 mount's precision direct-drive motors with high-resolution encoders, enabling sub-0.30 arcsecond tracking accuracy and rapid 50 degree-per-second slew speeds for both astrophotography and visual observation.
Specifications
| Field of View | 70° |
| Power Input | 120 V |
| Optical design | Corrected Dall-Kirkham |
| Secondary Mirror Material | Fused Silica |
| Focal length | 2939 mm |
| OTA Weight | 43 lb |
| Full System Weight | 168 kg |
| Encoder Resolution | 0.069″ |
| Mount type | L-500 Direct Drive |
| Power Adapter Current Rating | 15 A |
| Slew Speed | 50° |
| Tube Design | Dual Carbon Fiber Truss |
| Focal ratio | f/6.8 |
| Mount Configuration Options | Alt-Az and Equatorial |
| Aperture | 17 mm |
| Maximum Payload Capacity | 91 lb |
| Primary Mirror Material | Fused Silica |
| Tracking Accuracy | 0.30′ |
| Cooling Fans | 7 |
| Power Adapter Output | 12 V |
