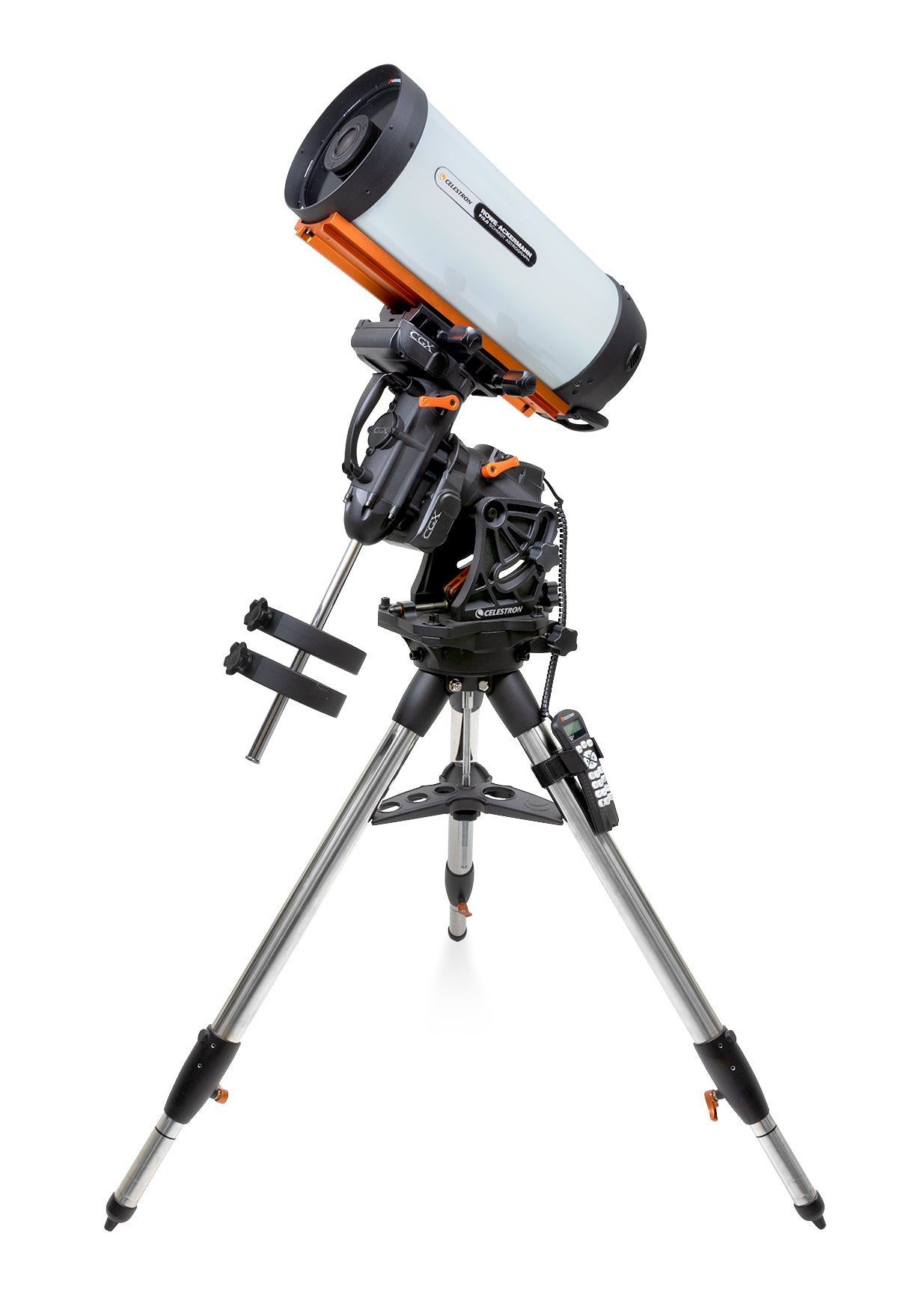

CGX 800 RASA

Celestron

From $4,122.95

5 stores

In stock

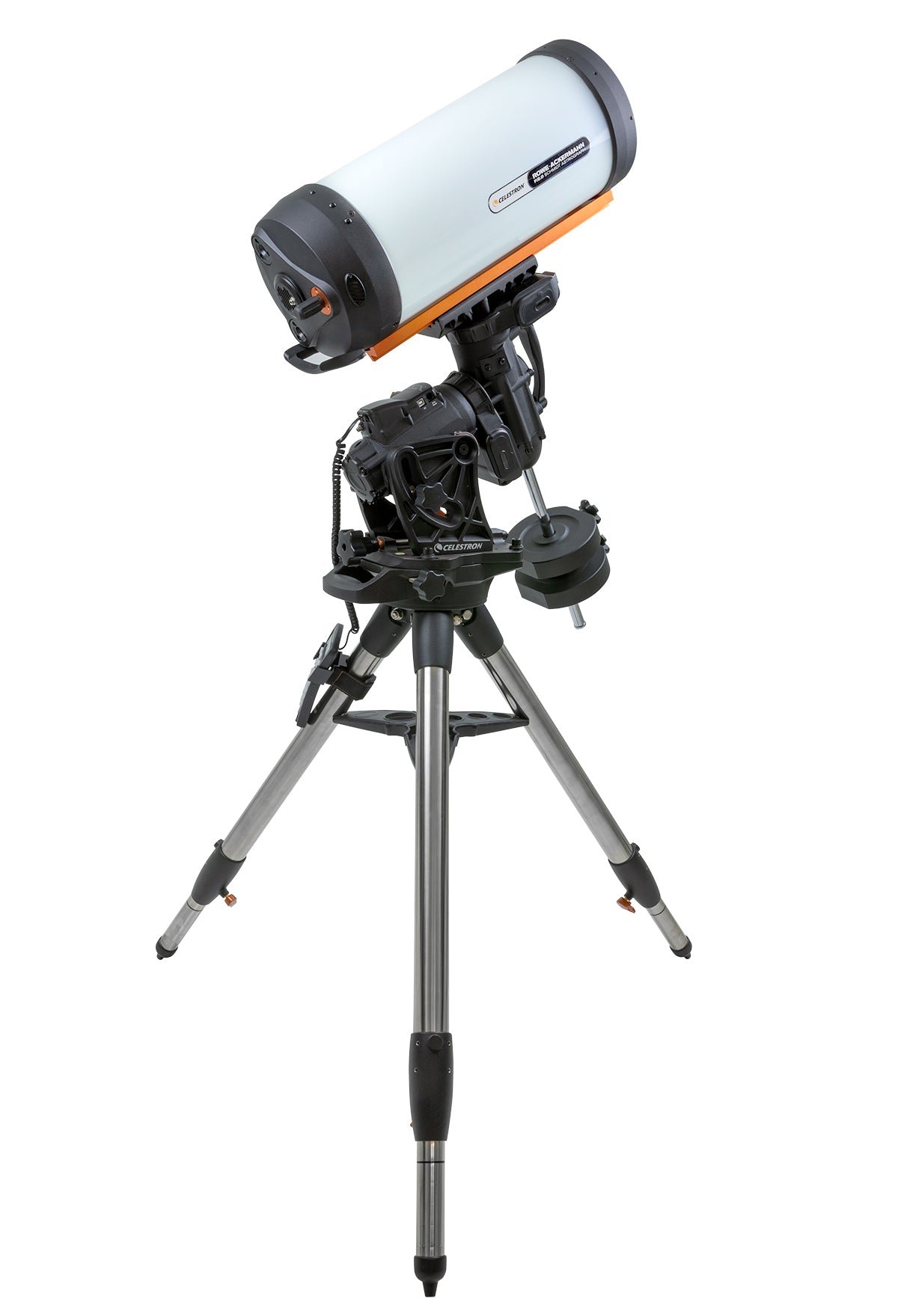

The CGX 800 RASA is a portable astrograph with an incredibly fast f/2.0 system designed for astronomical CMOS cameras, smaller CCD cameras, and mirrorless cameras, enabling sharp, detailed wide-field deep sky images with minimal need for autoguiding. The 4-element rare-earth optical design performs across a wider spectral range (400-800 nm) than conventional telescopes, and delivers a flat field free of optical aberrations like field curvature, coma, astigmatism and chromatic aberration across an entire APS-C sensor. Paired with the advanced CGX German equatorial mount offering 55 lb load capacity, this system easily supports the 17 lb optical tube along with accessories, making it an outstanding choice for portable deep-sky astrophotography from remote dark-sky locations.

Specifications

Coating Starbright XLT
Focal length 400 mm
Focal ratio f/2
Optics type Reflector
Aperture 203 mm
Mount type CGX German Equatorial
Wavelength Range 390
Object Database 40000
Back Focus 25 mm
Optical Tube Diameter 235 mm
Central Obstruction Diameter 93 mm
Back Focus (from collar) 29 mm
Camera Compatibility Astronomical CMOS, smaller CCD, and mirrorless cameras (not DSLR)
Optical design Rowe-Ackermann Schmidt Astrograph (RASA)
Image Circle Diameter 22 mm
Weight 17 lb
Optical Tube Length 628 mm
Mount Load Capacity 55 lb
