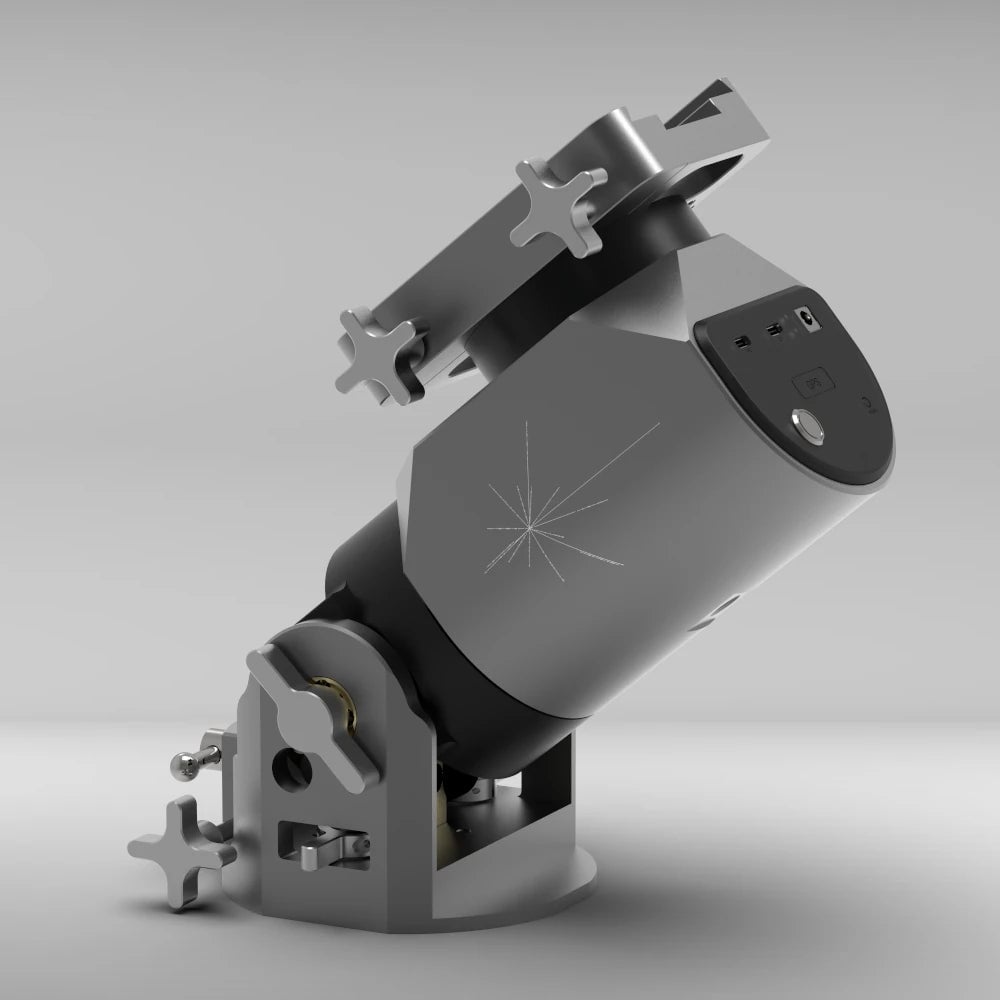

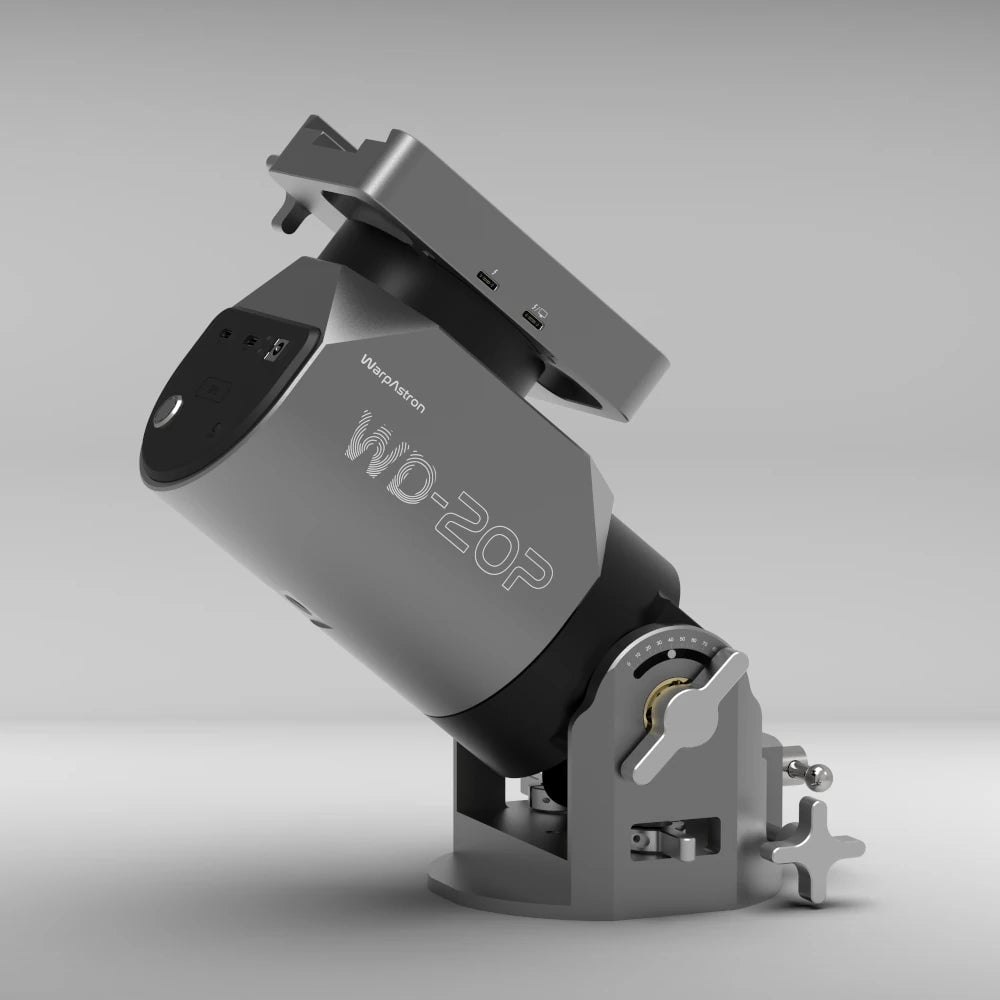

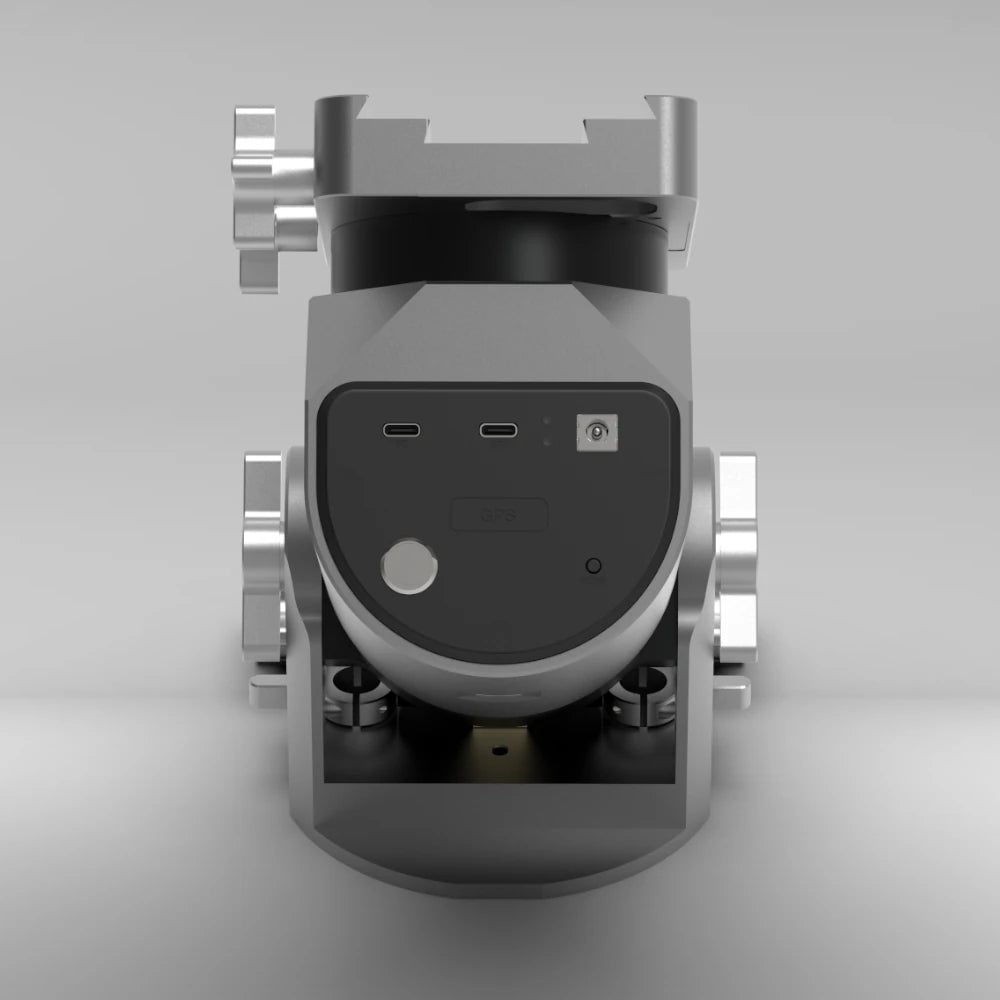

WarpDrive WD-20P
WarpAstron
From $3,499.00
2 stores
The WarpAstron WarpDrive WD-20P features servo direct drive technology and delivers up to 150W of power and data through the saddle, eliminating cable clutter and enabling seamless integration. Designed to support a standard load capacity of up to 48 lbs without additional counterweights, and 66 lb with a counterweight, this lightweight harmonic mount offers exceptional payload-to-weight performance for both portable and permanent observatory setups. Built with multi-layer active and passive safety features including encoder-based limit protection, automatic emergency braking, and a gyroscopic sensor, the WD-20P combines precision tracking with advanced protection for long-exposure astrophotography. The mount operates reliably down to -13°F, making it suitable for year-round use in cold environments.
Specifications
| DEC Axis Harmonic Reducer | Type 17 |
| Saddle Power Ports | 2 |
| Slew Rate (Maximum) | 10° |
| Wireless Connectivity | WiFi 802.11g and Bluetooth |
| Power Supply Included | 240W 24V AC Adapter |
| Mount Weight | 12.5 lb |
| Torque Rating (Standard) | 150 |
| Drive System | Servo Direct Drive with Strain Wave Gears |
| Torque Rating (Maximum) | 60 |
| Polar Alignment Adjustment Range | 30° |
| Payload Capacity (Standard, No Counterweights) | 44 kg |
| RA Axis Harmonic Reducer | Type 20 |
| Power Delivery Through Saddle | 150 W |
| Slew Rate (Standard) | 5° |
| Power Input | 12 V |
| Dual-Axis Homing Sensors | ✓ |
| Control Compatibility | ASCOM, INDI, OnStep, LX200, INDIGO |
| Electromagnetic Brake (RA Axis) | ✓ |
| Mount type | Equatorial with Alt-Az capability |
| Payload Capacity (With Counterweights) | 66 kg |
| Minimum Operating Temperature | -25 °C |
| Altitude Range | 0° |
| GPS | ✓ |
| Dovetail Compatibility | Vixen and Losmandy |
