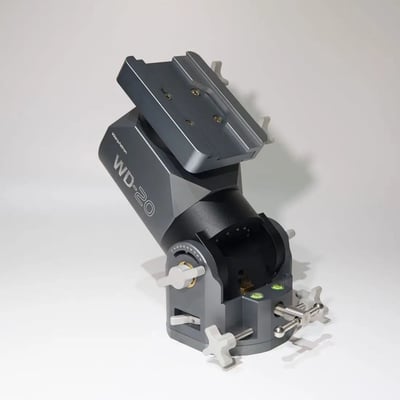

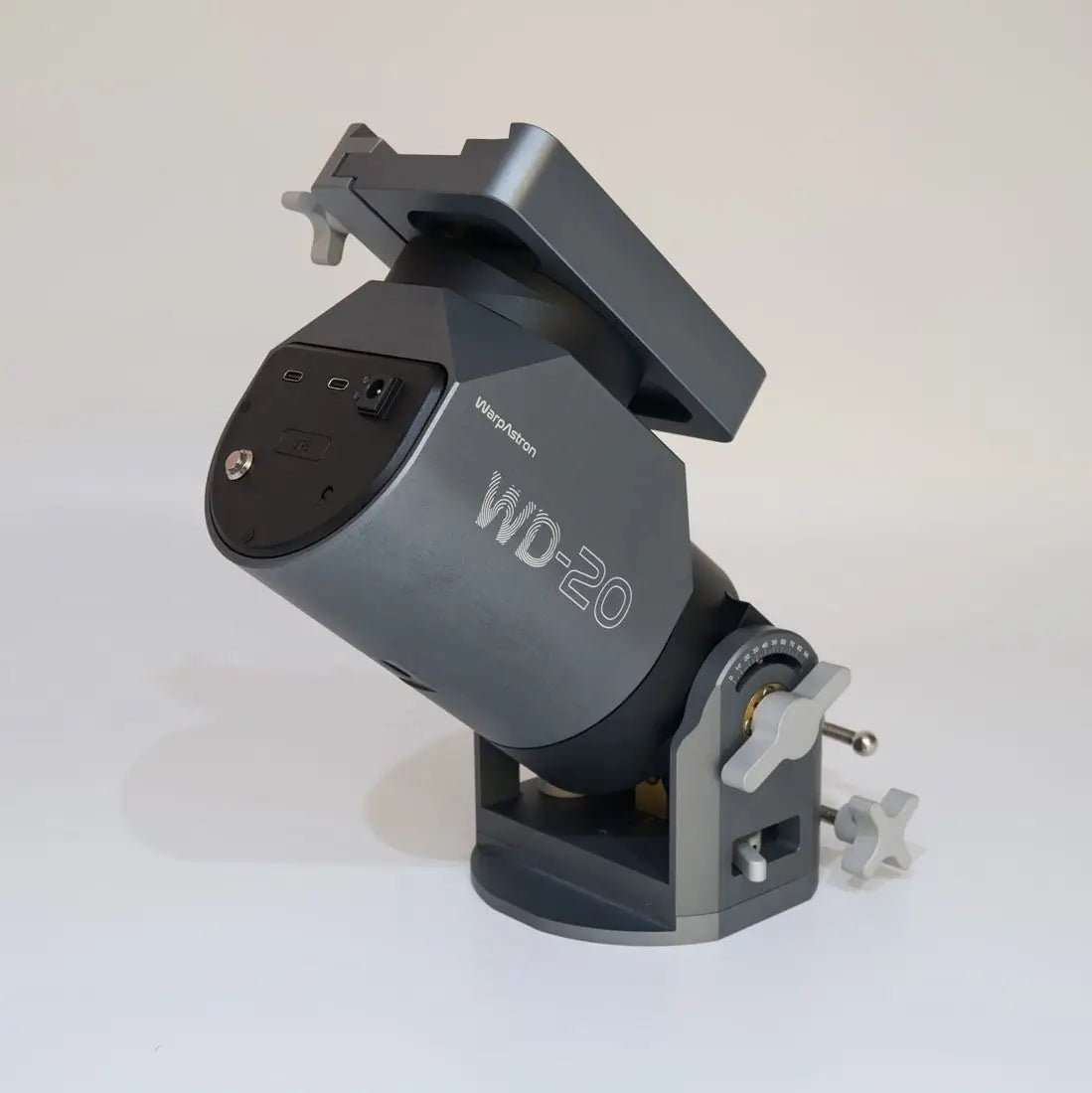

WarpDrive WD-20
WarpAstron
From $3,099.00
2 stores
In stock

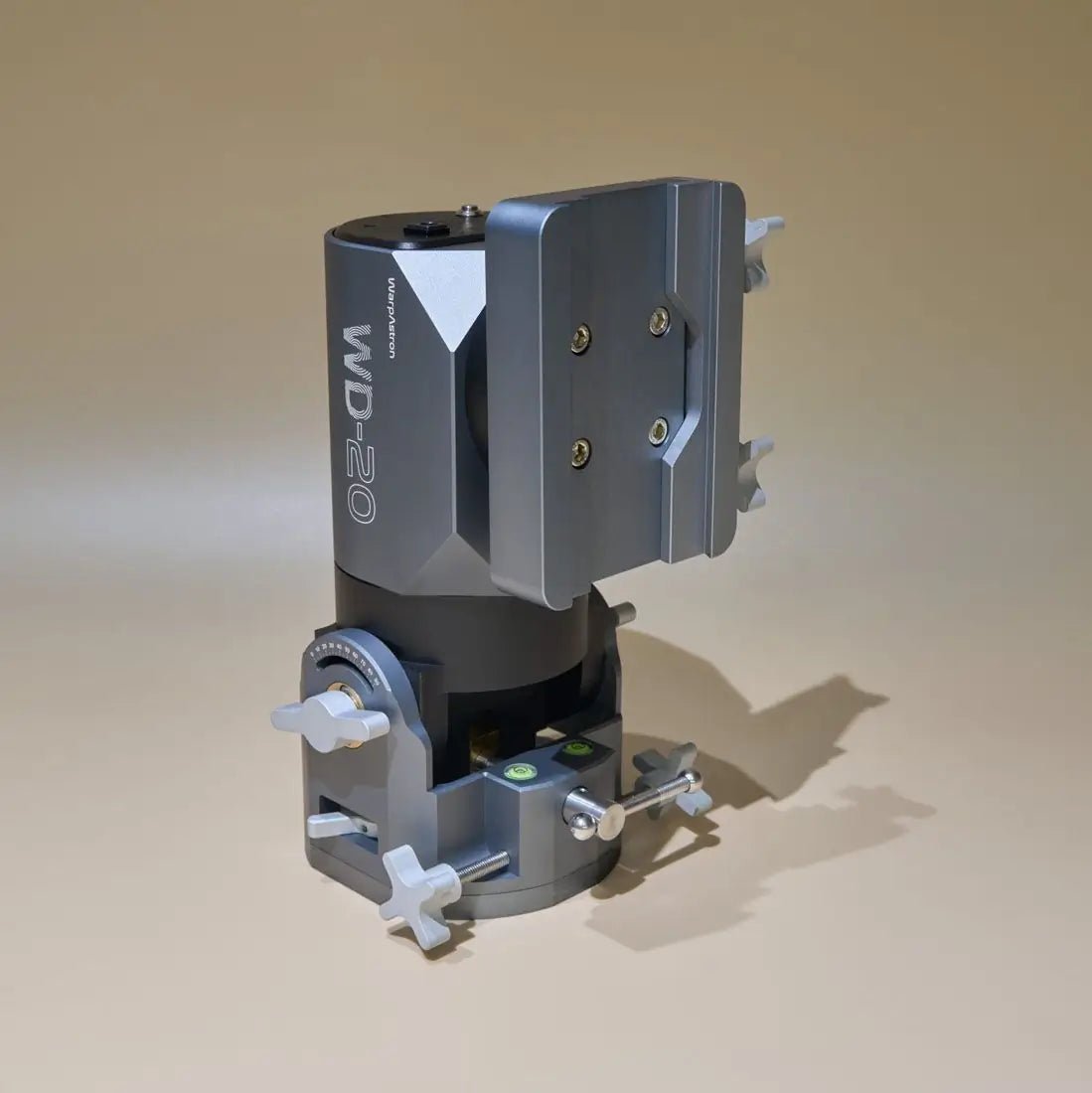

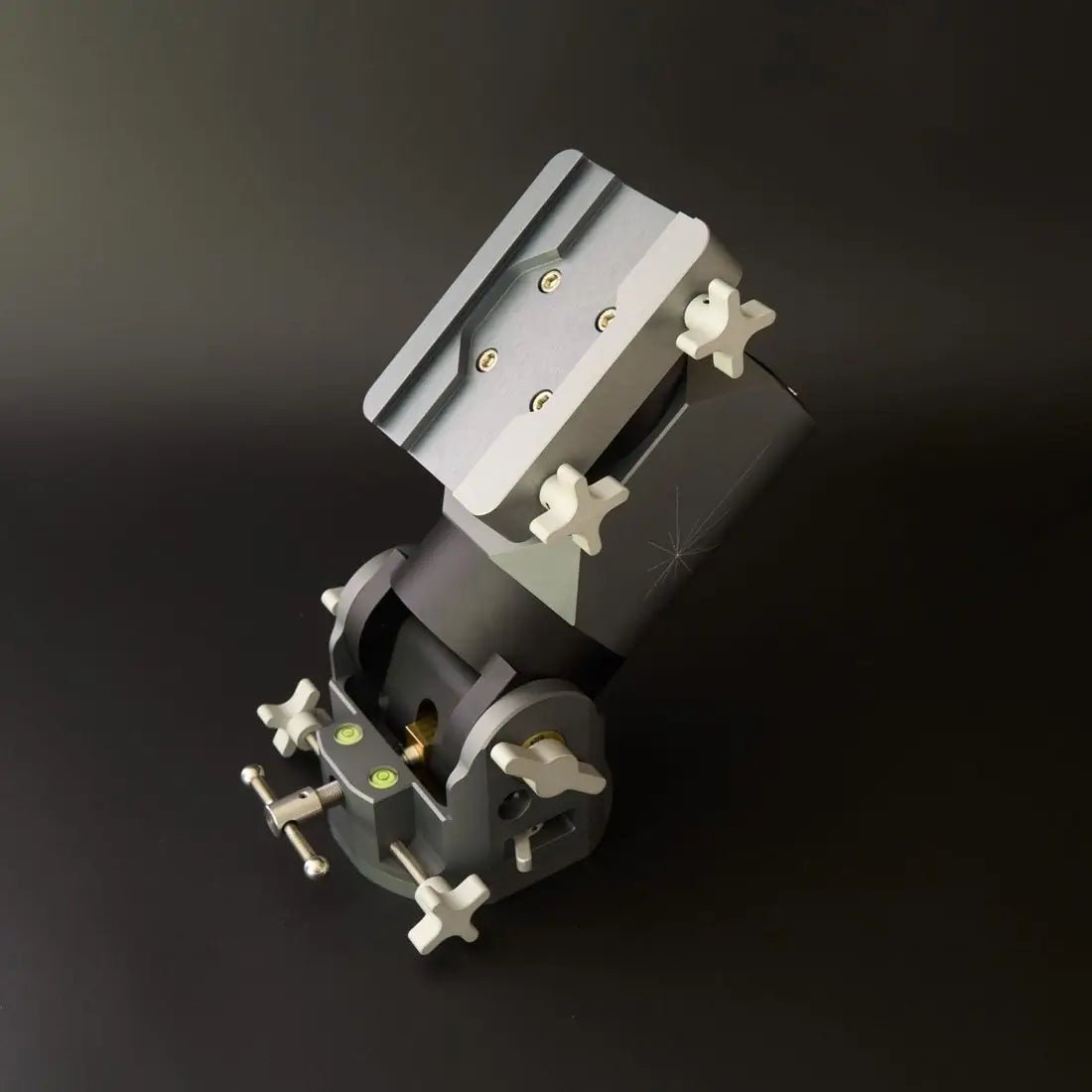

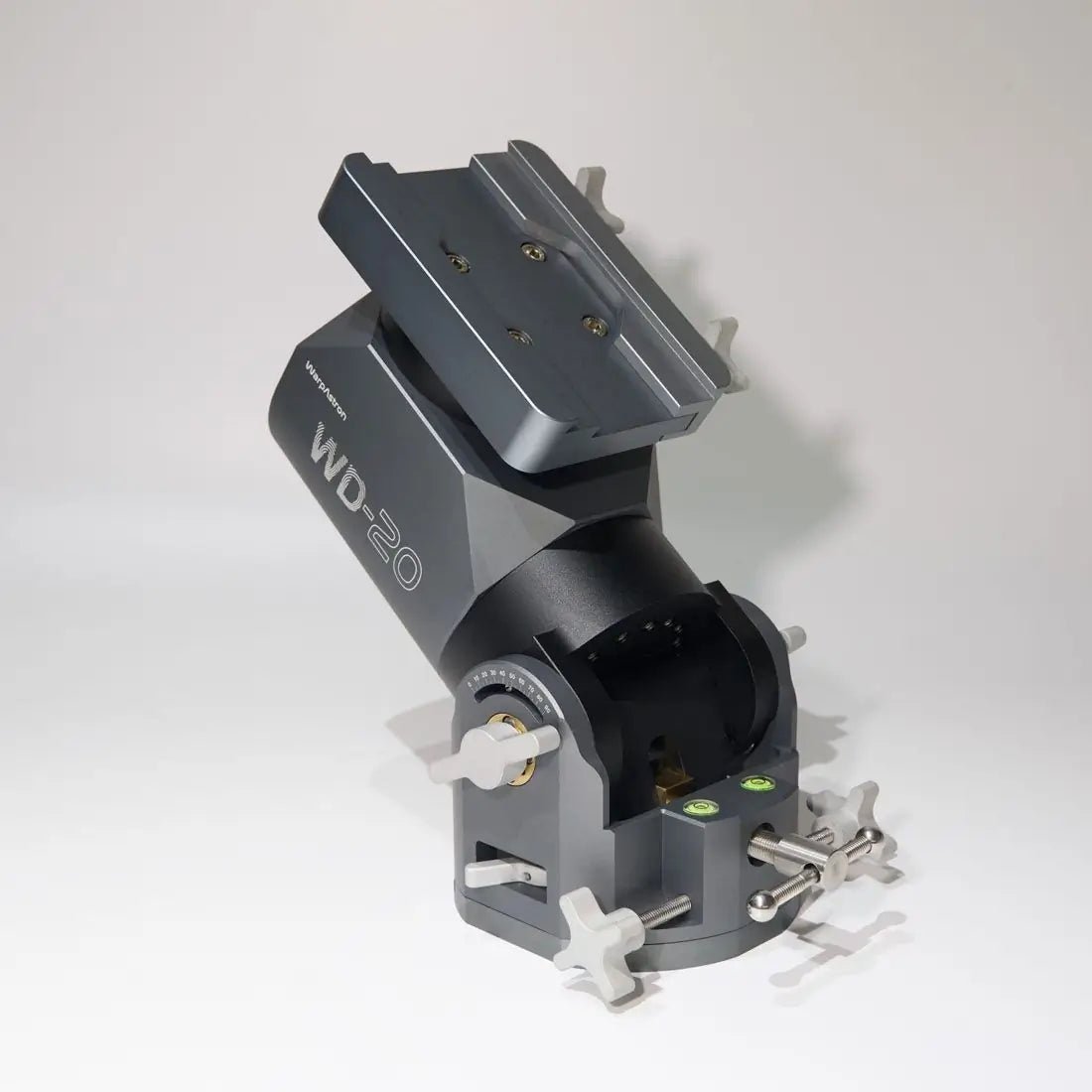

The WarpAstron WarpDrive WD-20 is a compact yet powerful strain-wave harmonic drive equatorial mount featuring innovative servo direct-drive technology that combines exceptional payload capacity with ultralight weight. Designed for both portable and stationary astrophotography setups, it delivers precise tracking with minimal backlash and silent operation down to -25°C, making it ideal for long-exposure imaging of deep-sky objects and planetary systems. The mount's dual-axis homing sensors, built-in GPS/Beidou module, and OnStep control system provide seamless integration with modern imaging software and workflows for advanced amateurs and professional astrophotographers.
Specifications
| Standard Load Torque Capacity | 50 |
| Dovetail Compatibility | Dual D-Style/V-Style (Losmandy and Vixen) |
| Electromagnetic Brake | ✓ |
| Tracking Accuracy | 0.3′ |
| Connections | USB Type-C (dual ports) |
| Mount type | Equatorial with Alt-Az capability |
| Minimum Operating Temperature | -25 °C |
| Power Input | 12 V |
| Payload Capacity Without Counterweight | 22 kg |
| RA Axis Reducer | Type 20 Strain Wave |
| Polar Alignment Adjustment Range | 30° |
| Control System | OnStep with WiFi and Bluetooth |
| Payload Capacity With Counterweight | 30 kg |
| Altitude Adjustment Range | 0° |
| Included Accessories | Smart Hand Controller, USB cables, 12V DC power cable, carry case |
| DEC Axis Reducer | Type 17 Strain Wave |
| Mount Weight | 5.4 lb |
| GPS Module | GPS/Beidou positioning |
| Motor Type | BLDC Servo Motor |
| Homing Sensors | ✓ |
